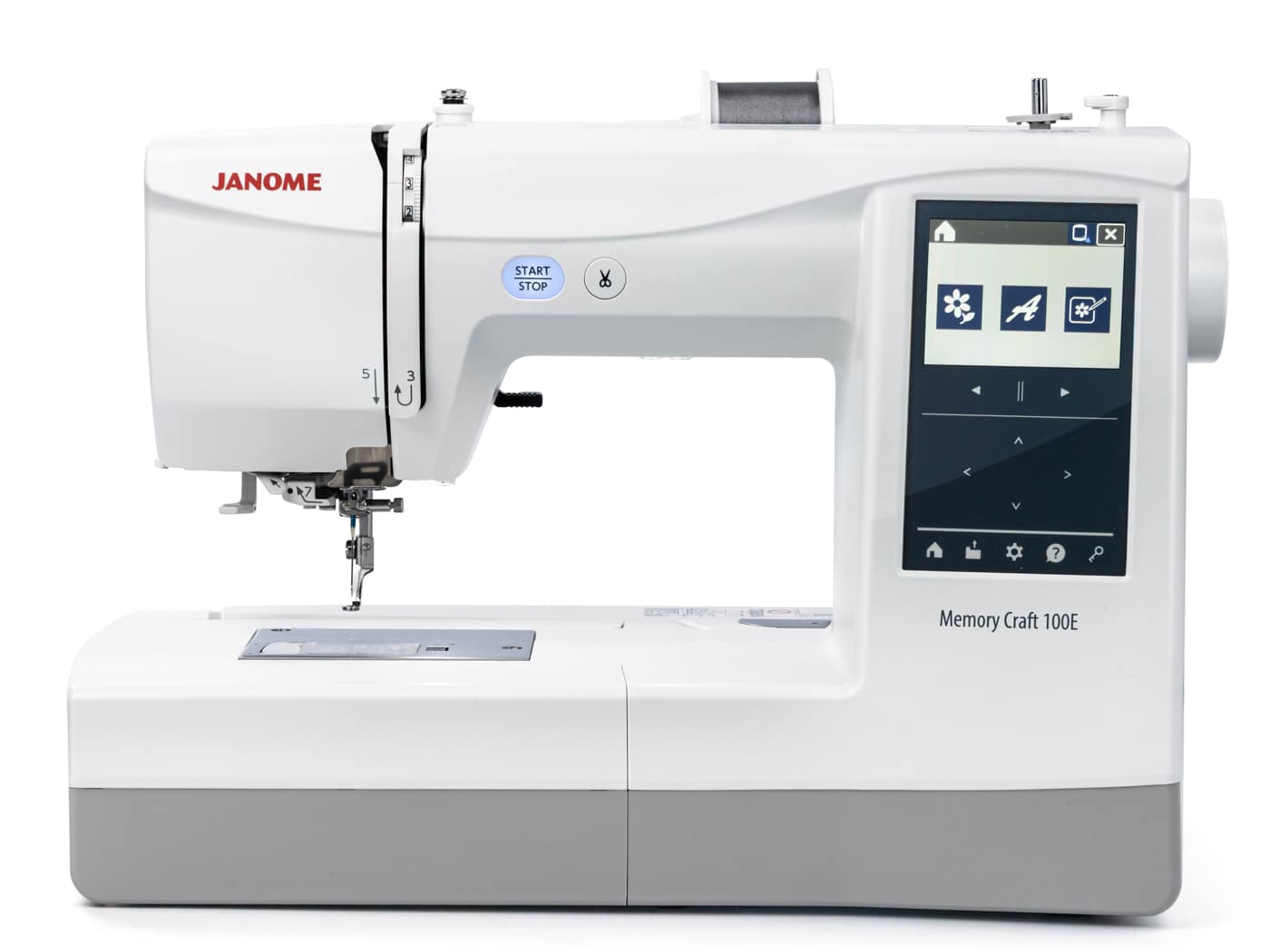

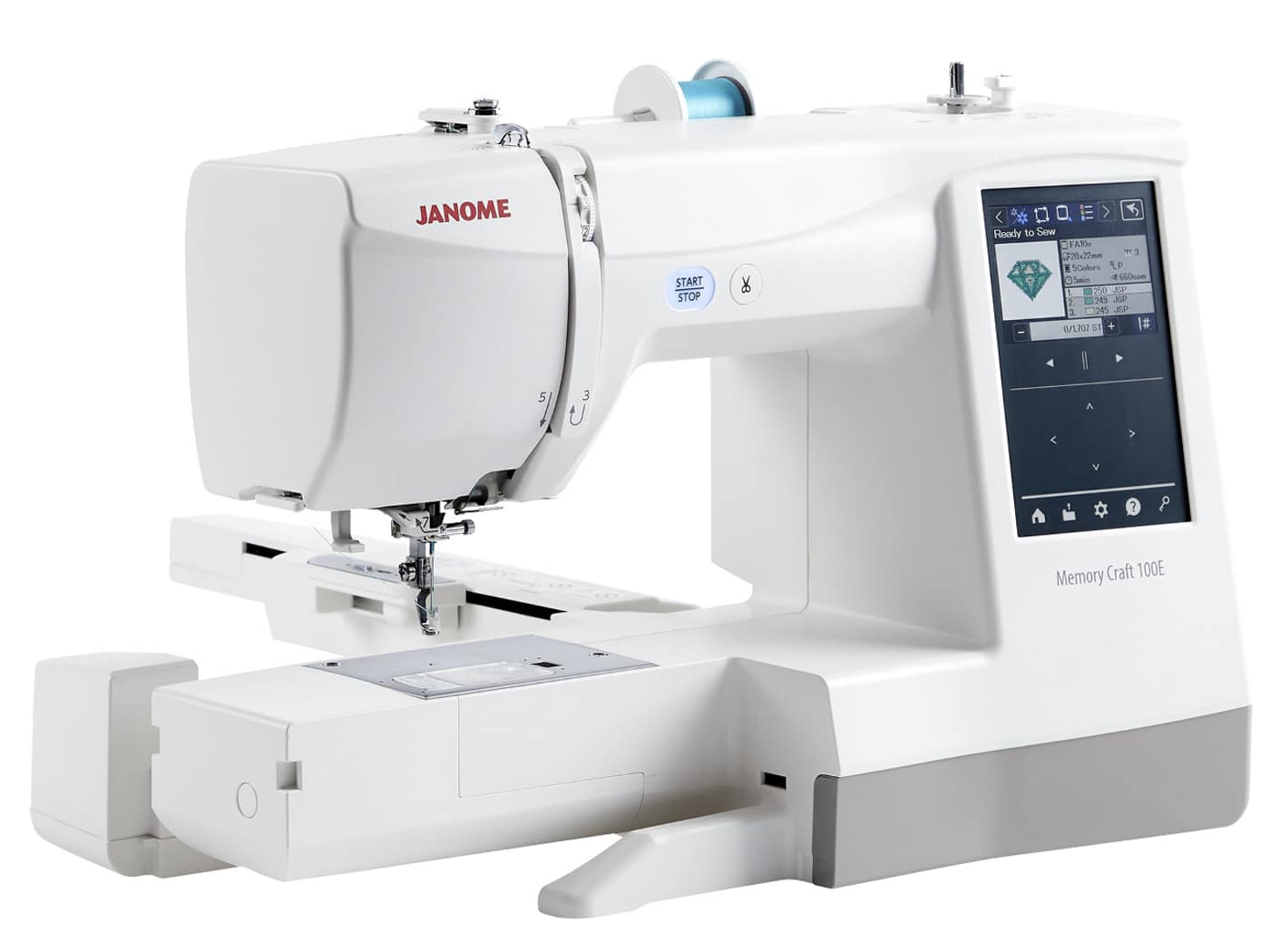

Memory Craft 100E Extraordinary Embroidery
Embroidery:
|
|

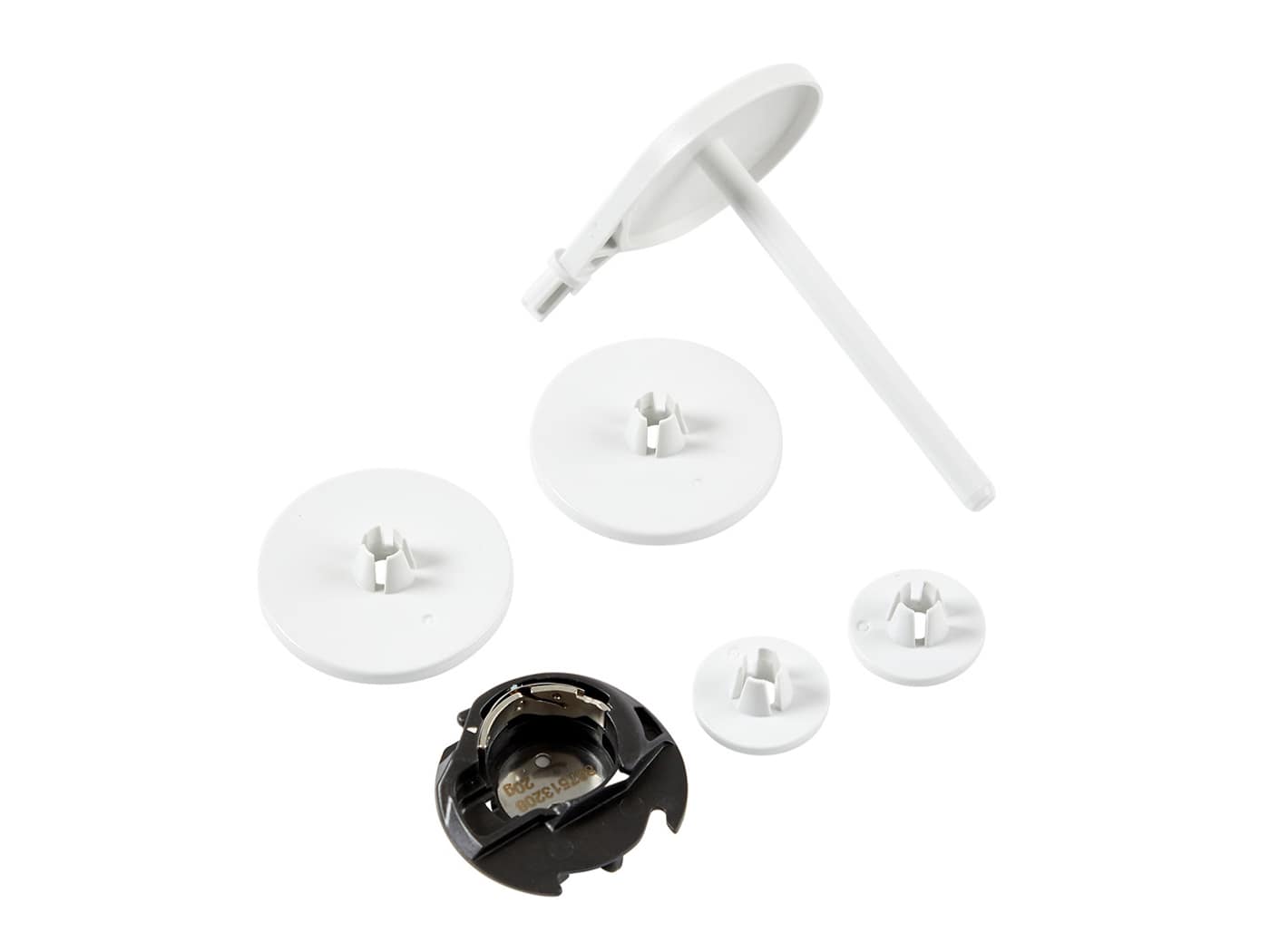

Standard Accessories:
|
|
Optional Accessories
|
|
 |
 |
 |
Machine Overview:
| Classification | Computerized embroidery machine |
| Machine Size (included Embroidery Unit) (kg) | W432 x H301 x D270 |
| Machine Weight (including Embroidery Unit) (kg) | 9.1 |
| Bed Type | Free arm/Flat bed convertible |
| Work Space (width) (mm) | 183.5 x 110 x 63 |
| Free Arm Length (from the needle) (mm) | 103.5 |
| Spool Pin | Horizontal type |
| Face Plate | Openable type |
| Accessory Box | Openable type |
Basic Functions:

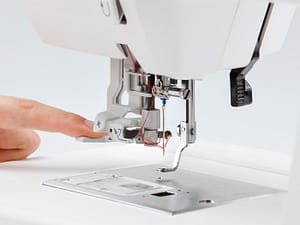

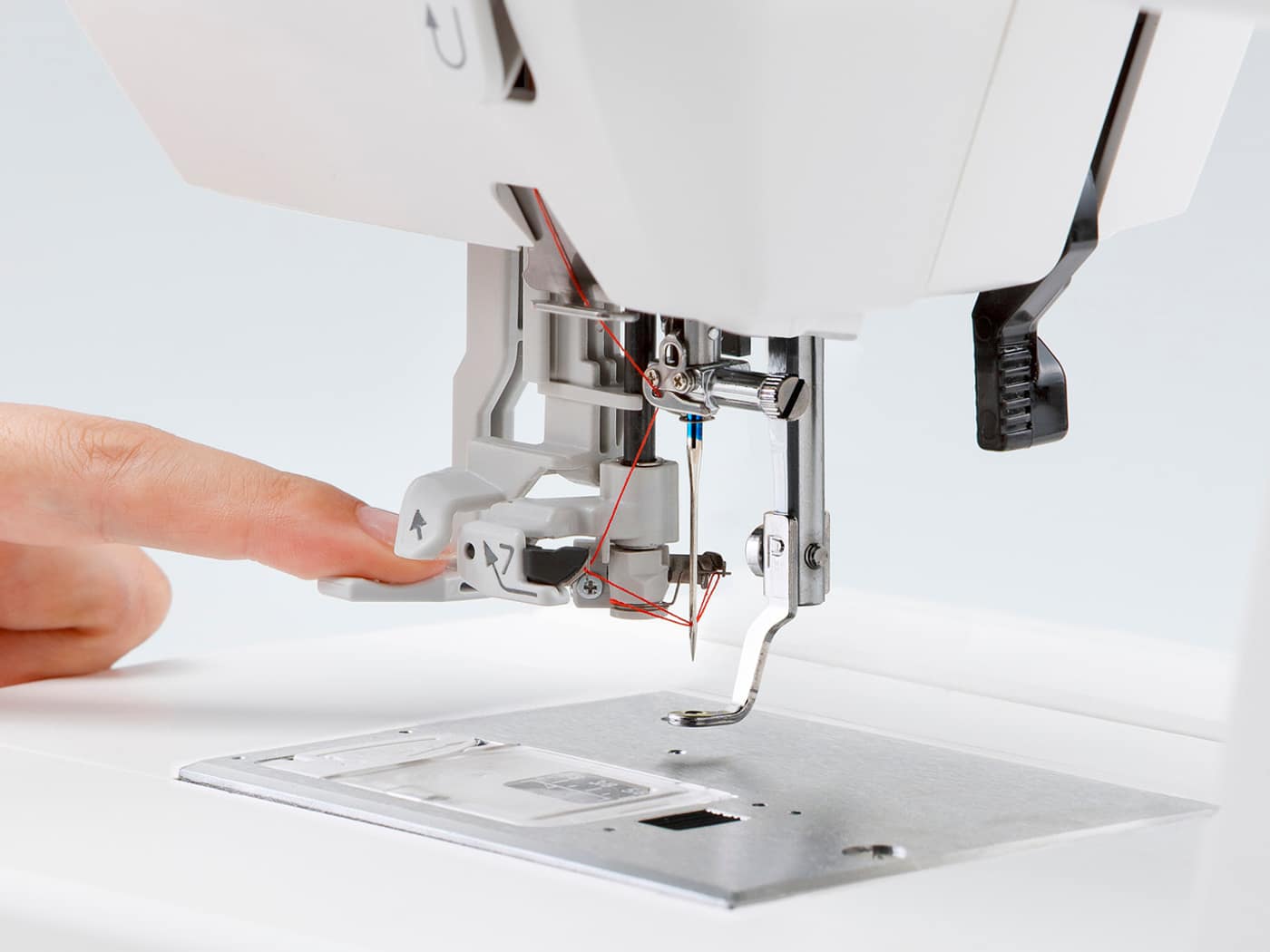

| Built-in Needle Threader | Superior Needle Threader 2 |
| Winding the Bobbin with the Machine Threaded | Yes (with extra spool pin) |
| Stop Winding Bobbin Automatically | Yes |
| Automatic Needle Stop Position | Up as default setting |
| Automatic Thread Cutter | Yes |
| Thread Cutter:
Face cover Top Cover Easy Bobbin Cutter Easy Bobbin Winder |
Yes No Yes Yes |
| Operation | Start Stop Button |
| Bobbin Winding | Auto Declutch |
| Thread Tension Control | Manual |
| Upper Thread Sensor | Yes |
| Bobbin Thread Sensor | Yes (optical) |
| Foot Pressure Adjustment | N/A |
| Lamp | 2 places (White LED, 2) |

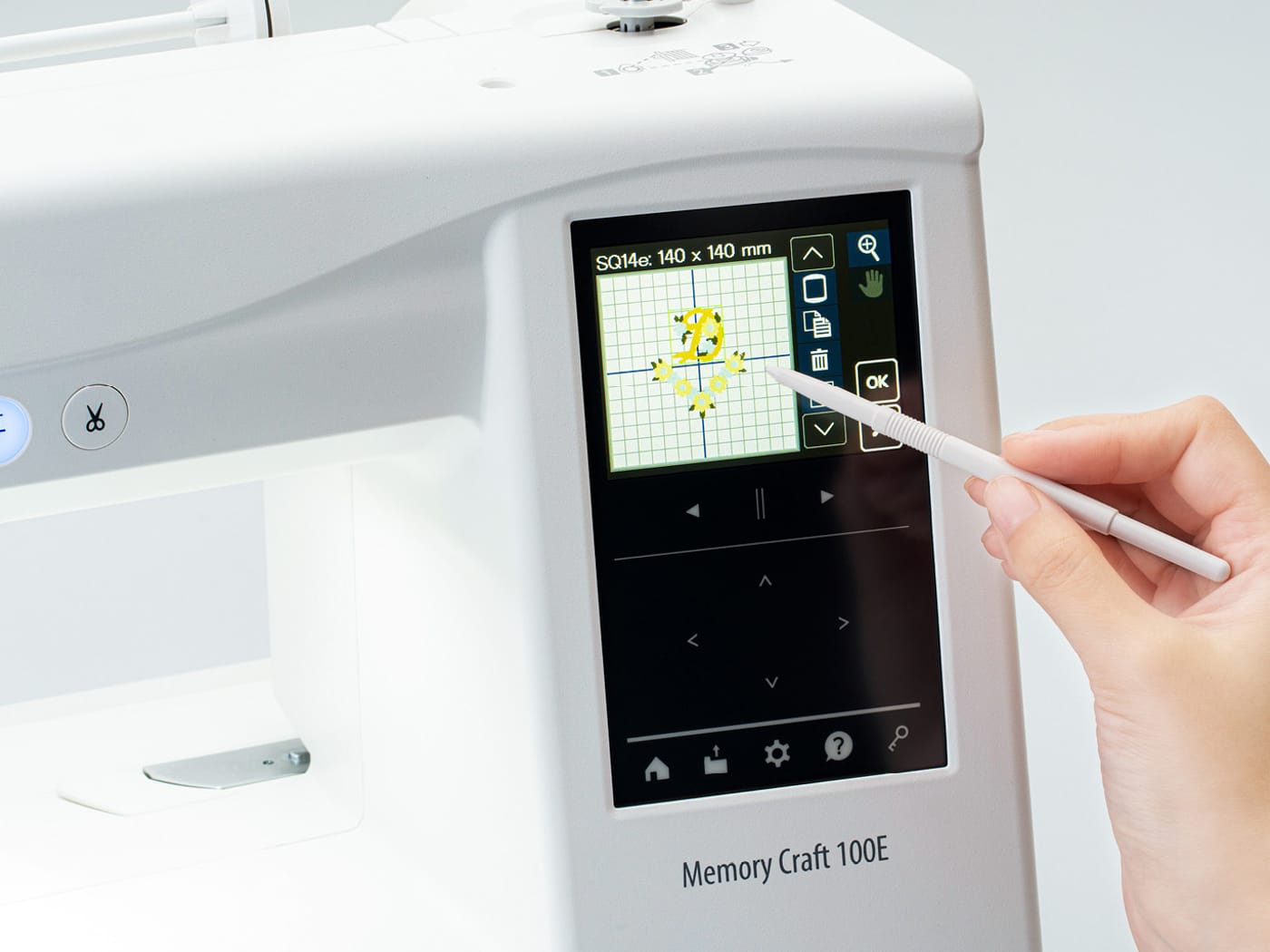

| Touch Panel Screen Size (mm)
(x) x (y) |
70.1 x 52.6 (3.5 Inch)
(320 x 240 pixel) |
| Screen Type | Color TFT LCD (IPS type) |
| External Media Type | USB Host:1 |
| Help Function | Yes (QR Code) |
| PC Software:
AcuStitch Stitch Composer Quilt Block Adviser Embroidery Editor Artistic Digitizer, Artistic Digitizer Jr. |
Yes (Download) No No Yes (Download) Yes |

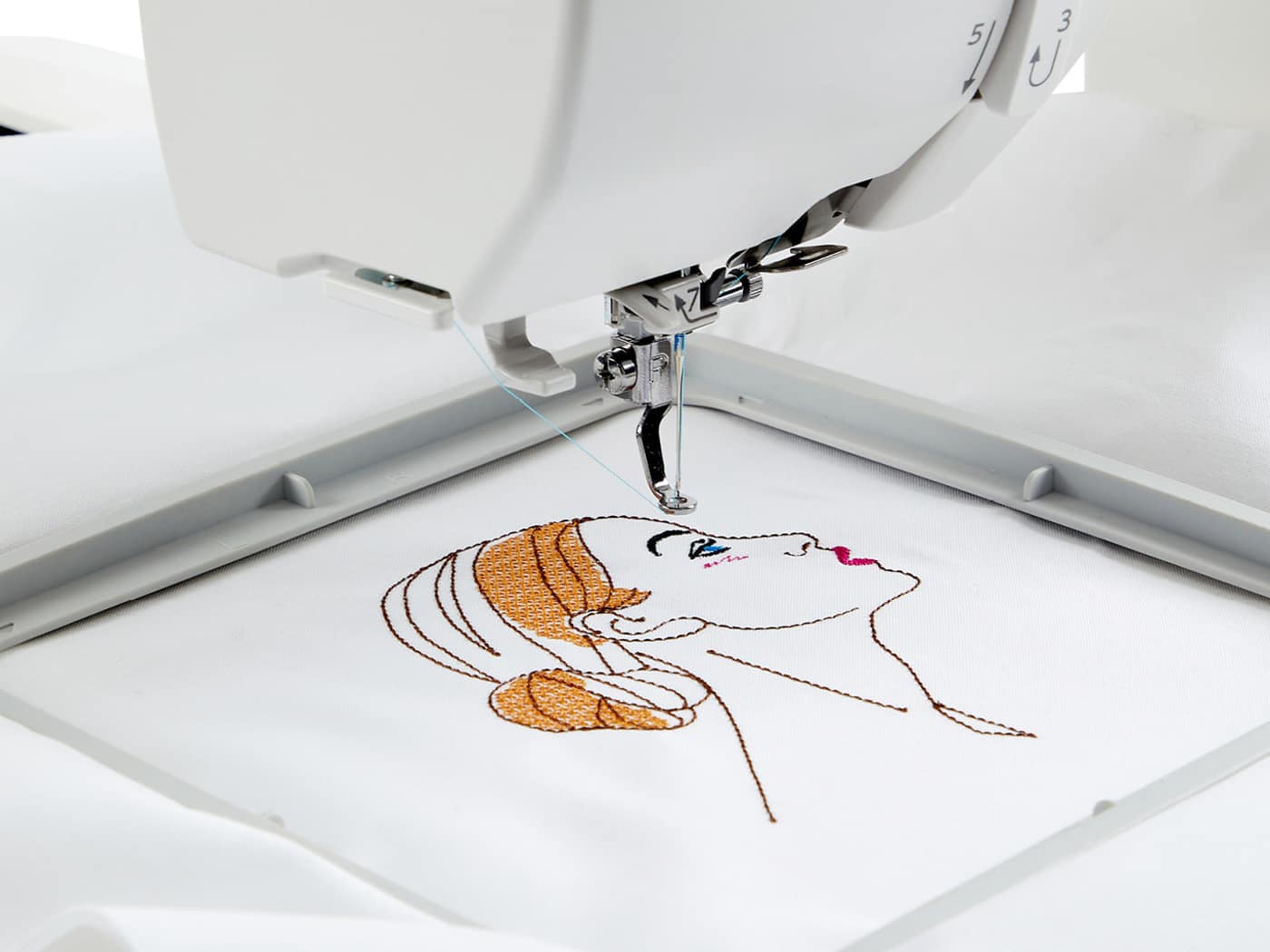

Embroidery Functions
| Built-in Embroidery Designs
Monograms Letters and Emblem Normal Sew Border Designs |
274
English, European Alphabet: 11 fonts, Japanese: 3 fonts, Russian: 3 fonts Letter: 2 to 3, Emblem: 10 x 2 102 46 |

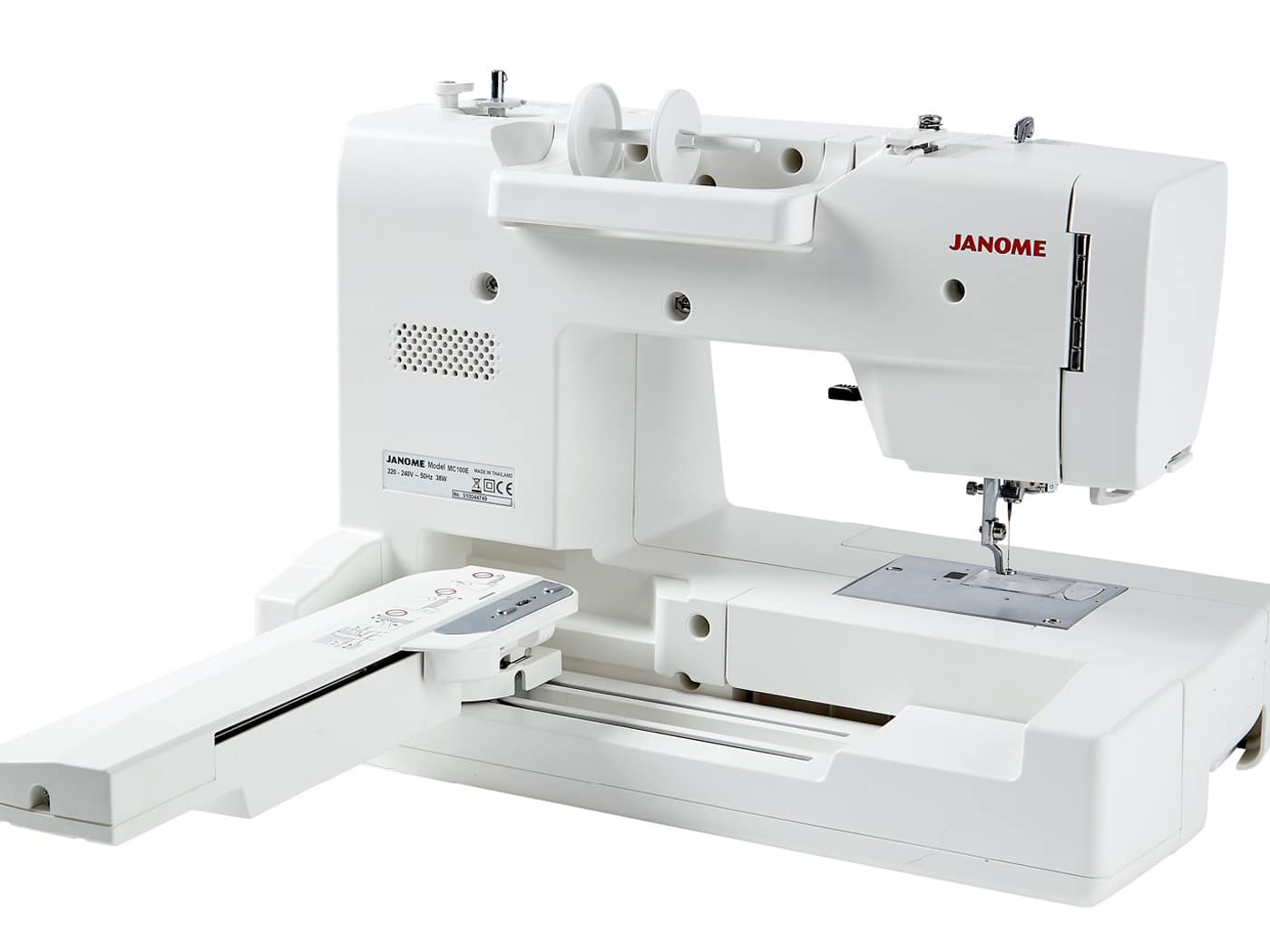

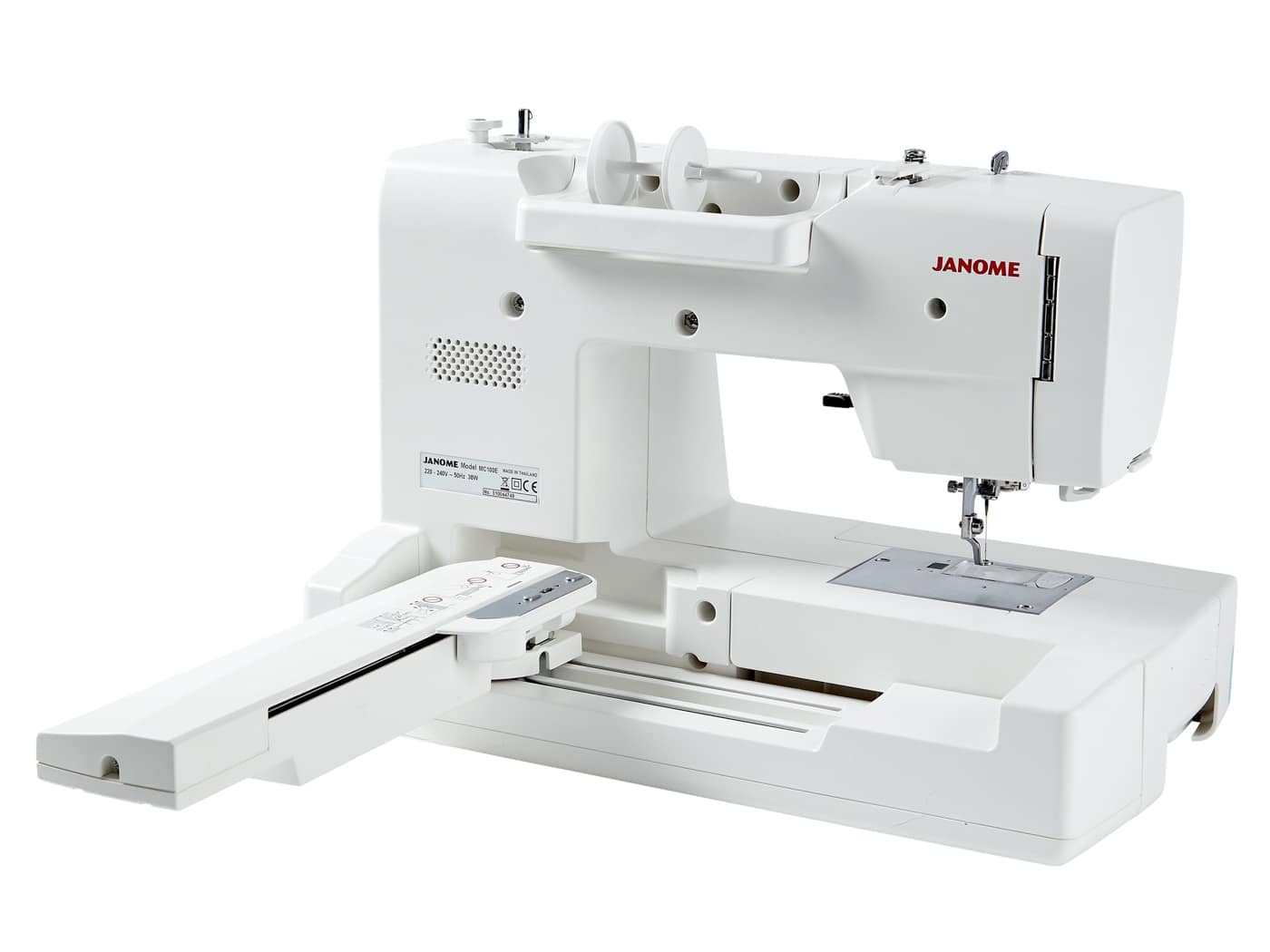

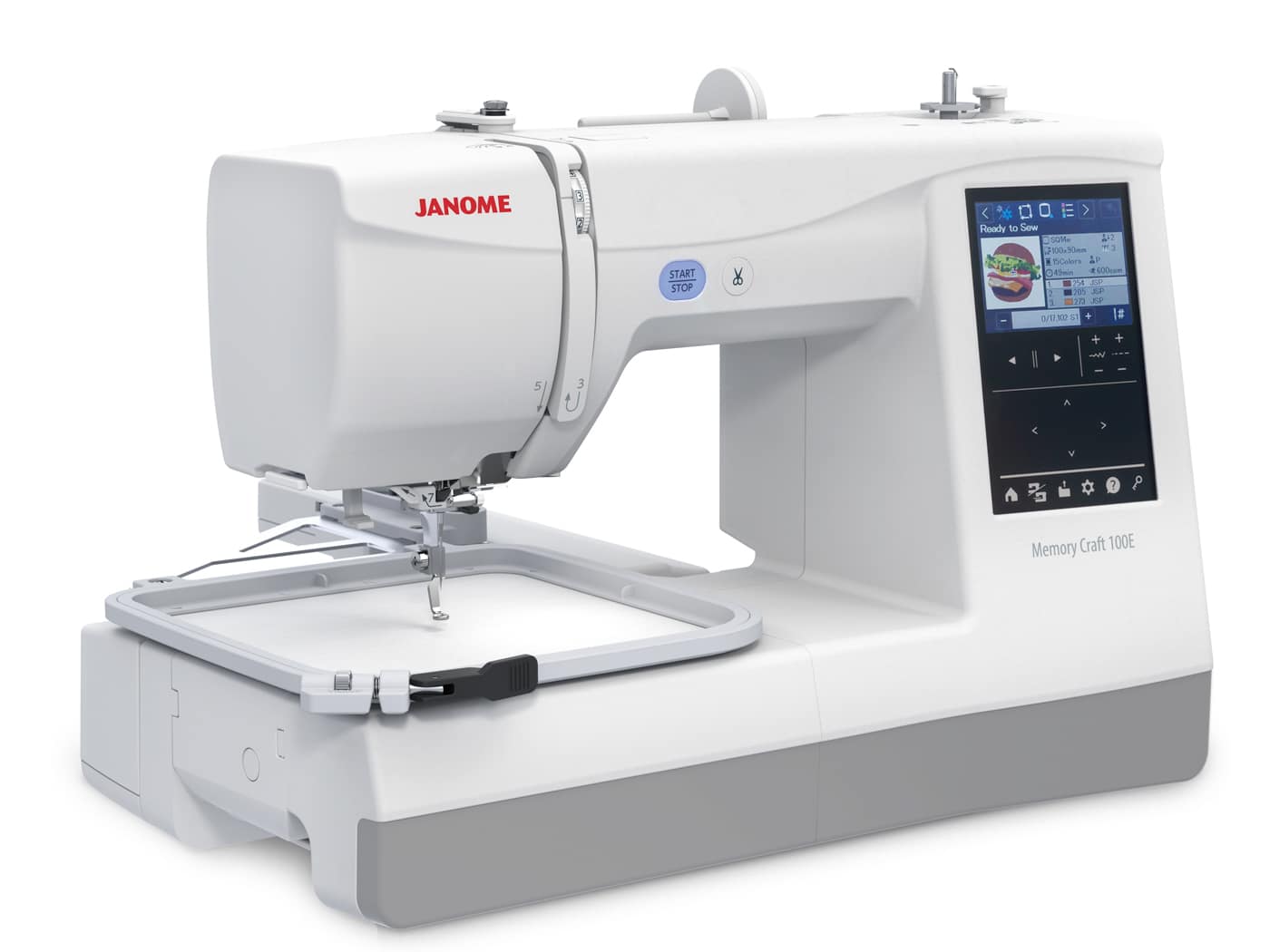

| Embroidery Unit | Built-in rear Sewing type |
| Maximum Embroidery Area (mm) | 140 x 140 |
| Embroidery Editing:
Pattern Resizing Pattern Rotation Flipping a Pattern Moving Frame while Zooming Re-editing Function Zooming in Edit Window Duplicating a Pattern Monogramming in an Arc Move Pattern while Embroidering Combining Patterns and Lettering Sewing Order Display Grid Line Corner Layout Single Color Sewing Changing the Thread Color Changing the Background Color Color Grouping |
80-120% By 1 or 45 degrees Yes Yes Yes Yes (Magnification change: 2 grades) Yes Yes Yes (always) Yes Yes Yes (10mm) Yes Yes Yes Yes Yes |
| Memory Storage
*Shared with design patterns |
Up to 2.5MB* |
| Fine Adjustment on the Screen | Yes |
| Moving a Pattern on the Screen | Yes |
| Maximum Embroidery Sewing Speed | 660spm |
| Trace and Baste | Yes (Corners, Trace, Trace & Baste (single), Trace & Baste (double)) |
| Setting the Trim Tail Length | Yes (3, 4, 5, 10, 15, 20, 25, 30, OFF) |
| Auto Return Post Thread Break | Yes |
| Sewing Speed Adjustment when Embroidering | Yes |
| Flexible Stitch Traveling | 1,10, or 100 stitches |
| Desired Sewing Point Directly | Yes |

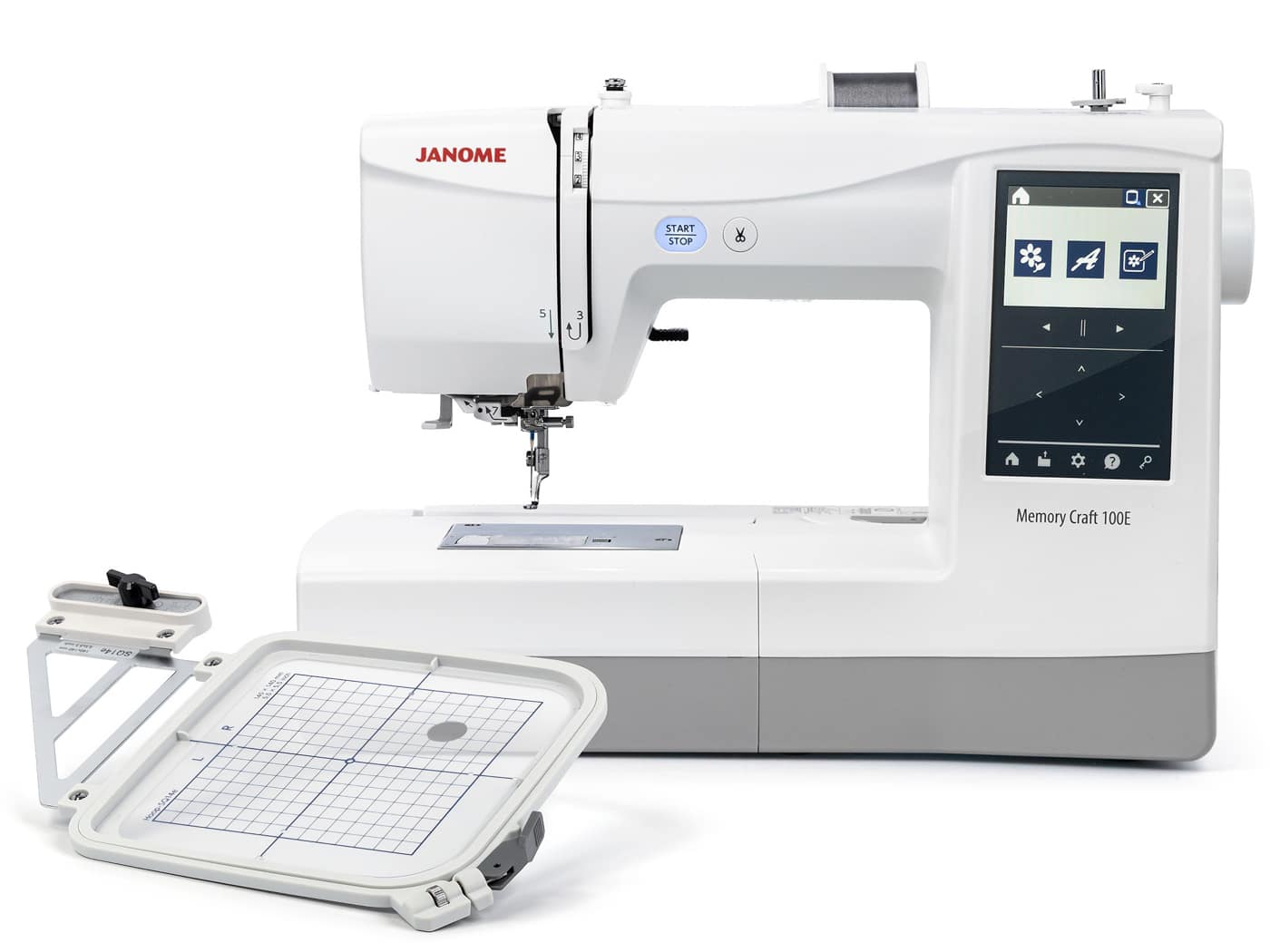

| Embroidery Hoop | SQ14e (140 x 140 mm)
SQ10e (100 x 100 mm) (optional) FA10e (100 x 40 mm) (optional) FA5e (50 x 50 mm) (optional) |
| Free Arm Embroidery | Yes |
| Cutwork | Yes |
| Embroidery Couching | Yes |
| Thread Color List & Stitch Count Display Mode | Yes |
| Embroidery Sewing Progress Display | Yes
(Displayed on the Ready To Sew window) |
