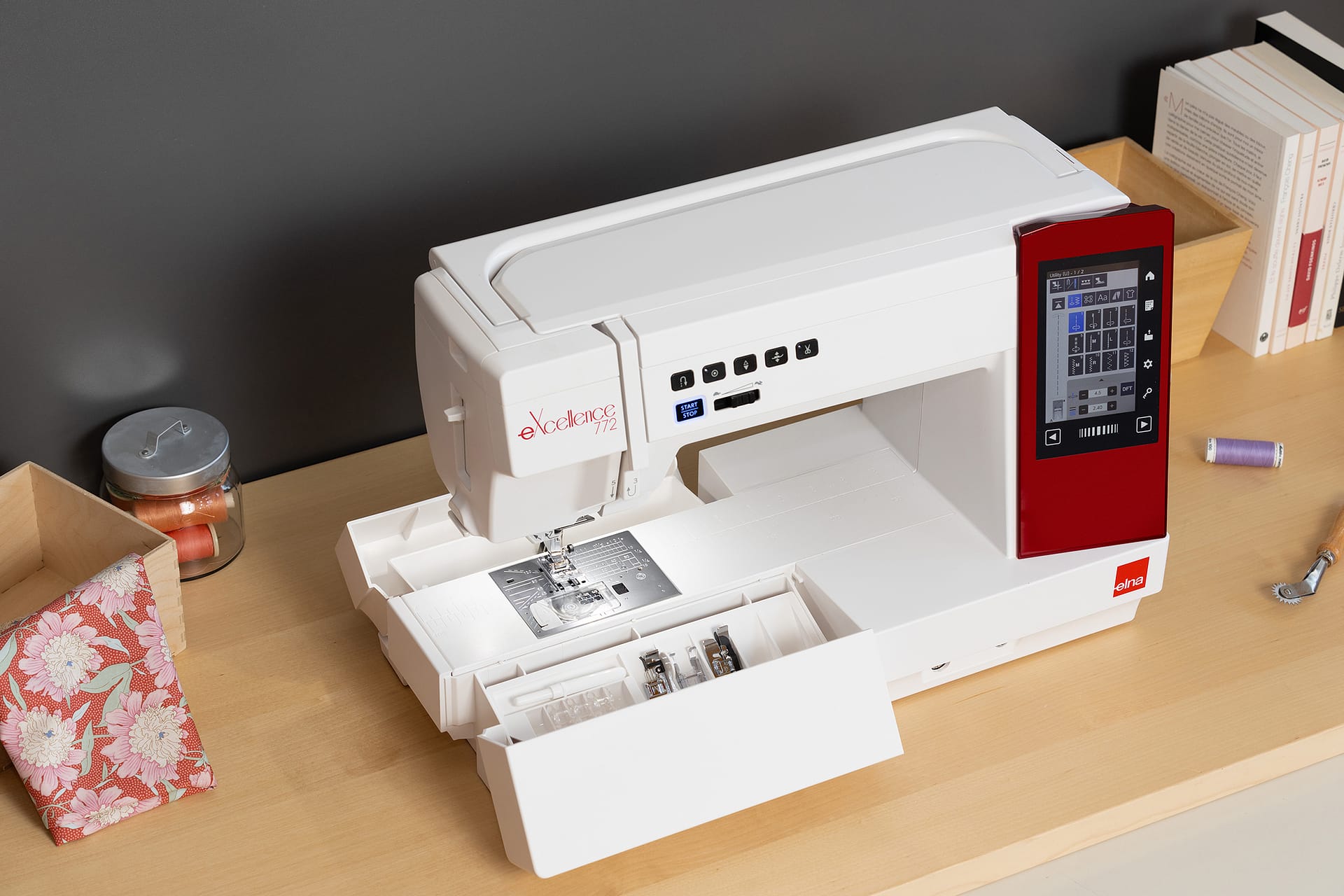

| eXcellence 772 |
|
Premium Computerized Sewing & Quilting Machine |
|
|
THE ALLIANCE OF HIGH-TECH FEATURES AND EASY OPERATION With the elna eXcellence 772, you will experience unique sewing comfort and perfection of stitching, combined with an astonishing number of advanced features:
|
 |
UNLIMITED POSSIBILITIES TO EXPRESS YOUR CREATIVITY You will enjoy using the extensive range of fantastic functions for regular sewing, decorative stitching and quilting:
|
 |
EXPERIENCE QUILTING AS NEVER BEFORE An exclusive combination of features makes the eXcellence 772 the dream machine for patchwork & quilting enthusiasts.
|
GENERAL:
- Broad sewing space 280 x 120 mm
- Extra-long free arm (150 mm)

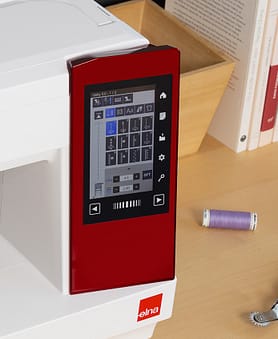

- Large HD color touch screen (W 64.8 x H 108 mm)
- Multi-language, easy navigation display
- Horizontal rotary hook with top-loading bobbin and clear cover
- Built-in needle threader Smart System
- Easy and guided bobbin threader with built-in thread cutter
- Easy and auto declutch bobbin winder
- Upper and bobbin thread run-out sensors
- State-of-the-art 7-piece retractable feed dog
- Drop feed sensor
- Dual Feed and Dual Feed Plus system for use of wide and narrow feet
- Automatic thread tension control
- Automatic presser foot pressure adjustment
- Automatic presser foot lifter
- Extra-high presser foot position
- Clip-on easy conversion presser foot

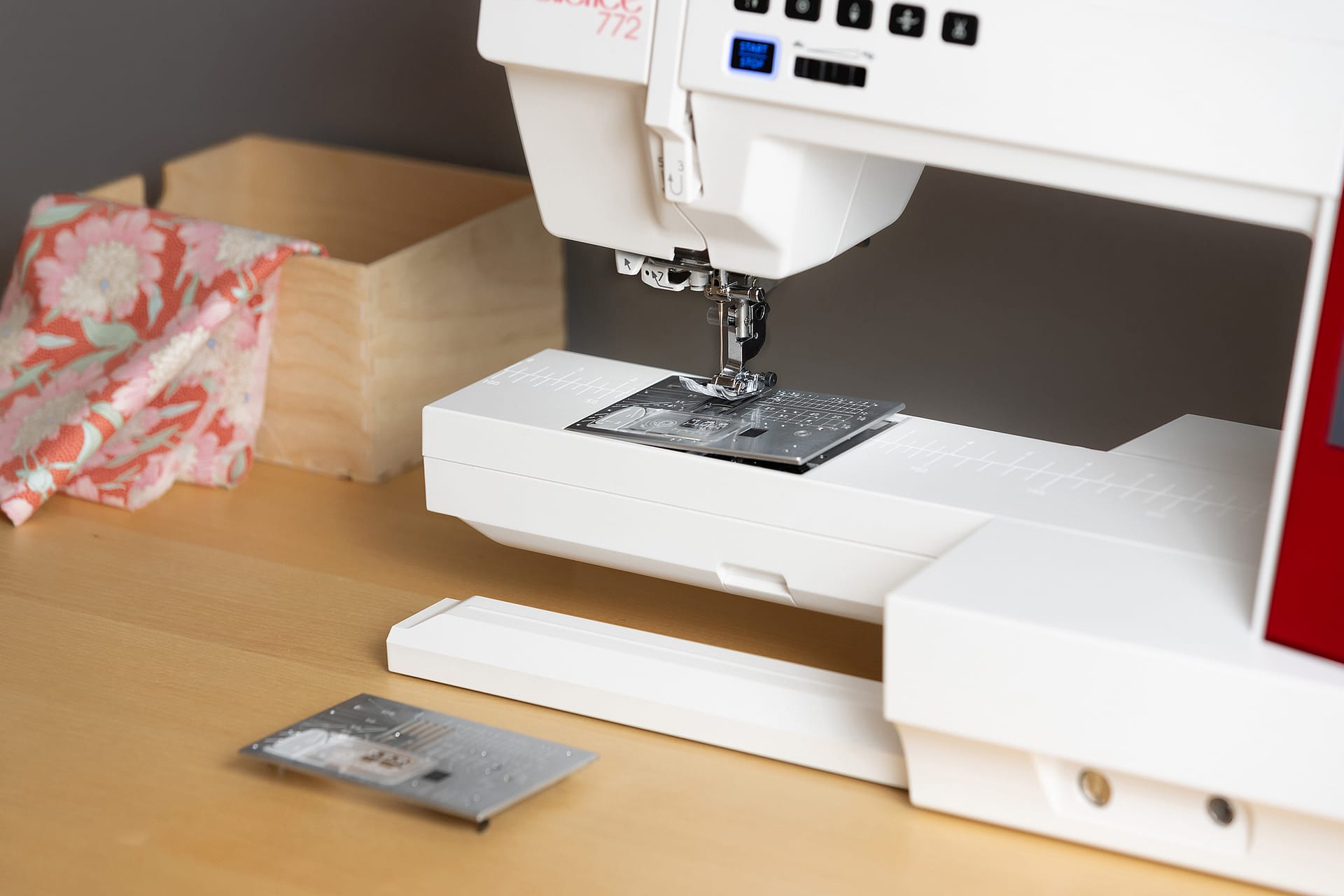

- One-step needle-plate conversion system
- 9 white LED lights in 4 areas
- 3 MB integrated memory
- USB port
- Stitch reference chart in top cover
- Machine size W 535 × H 326 × D 243 mm
- Machine weight 13.5 kg
SEWING:
- Adjustable stitch width maximum 9 mm
- Adjustable stitch length maximum 5 mm
- 300 stitch patterns
- 11 one-step buttonholes (10 automatic and 1 sensor)
- 3 alphabets and 3 fonts (Block, Script, Broadway)
- Capital letters and numbers available in 9 mm
- Adjustable sewing speed up to 1060 stitches per min.
- Pattern combinations including up to 100 stitches
- Favorite Stitch function to save customized stitch settings
- Easy pivoting function
- Variable zigzag
- Stitch tapering function
- Ruler work function
- Stitch Composer stitch creation software
- 91 variable needle positions
FUNCTIONS WITH DIRECT ACCESS
- Start / Stop
- Reverse sewing
- Automatic lock stitch
- Up / Down needle position
- Automatic presser foot lifter
- Automatic and programmable thread cutter Speed control slider
STANDARD ACCESSORIES
- 21 presser feet
- standard A
- rolled hem D
- zipper E
- satin stitch F
- open toe satin stitch F2
- blind hem G
- overlock M
- ¼” seam O
- free-motion quilting:
- closed-toe QC
- zigzag QV
- ruler work QR
- closed-toe darning PD-H
- open-toe darning PD-H
- automatic buttonhole R with stabilizer plate
- button sewing T
- 2 needle plates:
- standard
- straight stitch
- Others:
- button shank plate
- quilting guide bar
- circular sewing pivot pin
- bobbins
- seam ripper
- needle set
- lint brush
- spool holders
- small
- large
- special
- additional spool pin
- screwdriver small
- touch panel stylus
- Foot controller
- Semi-hard fabric cover
Quick Comparison Chart
| Machine: | eXcellence 772 | eXcellence 782 | eXcellence 792PRO | eXcellence 720PRO |
| Computerized/Mechanical | Computerized | Computerized | Computerized | Computerized |
| Speed | 1,060 SPM | 1,060 SPM | 1300 SPM | 1200 SPM |
| Bobbin System | Drop In 15 Class | Drop In 15 Class | Drop In 15 Class | Drop In 15 Class |
| Maximum Stitch Width | 9mm | 9mm | 9mm | 9mm |
| Maximum Stitch Length | 5mm | 5mm | 5mm | 5mm |
| Number Of Stitches | 300 + 3 Alphabet Fonts | 400 + 3 Alphabet Fonts | 450 + 3 Alphabet Fonts | 200 + 3 Alphabet Fonts |
| Feed Dog System | 7 Piece | 7 Piece | 7 Piece | 7 Piece |
| Upper Feed | Dual Feed Manual Adjustment | Dual Feed Manual Adjustment | Dual Feed with Digital Adjustment | Dual Feed Manual Adjustment |
| Accurate Stitch Regulator (A.S.R.) | No | Yes | Yes | No |
| Bobbin Winder | Auto declutch bobbin winder | Auto declutch bobbin winder | Dedicated Motor | Dedicated Motor |
| Tension Adjustment | Automatic/Digital | Automatic/Digital | Automatic/Digital | Manual Knob |
| Needle Positions | 91 | 91 | 91 | 91 |
| Presser Foot Pressure Adjustment | Automatic/Digital | Automatic/Digital | Automatic/Digital | Manual Knob |
| Sewing Space | 280mm/11″ x 120mm/4.75″ | 280mm/11″ x 120mm/4.75″ | 343mm/13.5″ x 140mm/5.5″ | 255mm/10″ x 120mm/4.75″ |
| Needle Plate | One Touch Release: Straight Stitch, & Zig Zag Plate Included | One Touch Release: Straight Stitch, Zig Zag, & Professional Grade Plate Included | One Touch Release: Straight Stitch, Zig Zag, & Professional Grade Plate Included | One Touch Release: Straight Stitch, Zig Zag, & Professional Grade Plate Included |
| Free Arm | Yes | Yes | Flat Bed | Flat Bed |
| Knee Lift | Automatic Programable or Bar | Automatic Programable or Bar | Automatic Programable or Bar | Bar Included |
| Extension Table | Included | Included | Included | Included |
| Lighting | 9 LED lights in 4 areas | 9 LED lights in 4 areas + Retractable high light | 9 LED lights in 4 areas | 6 LED in 3 Locations |
| Needle Threader | Yes | Yes | Yes | Yes |
| Needle Up/Down Button | Yes | Yes | Yes | Yes |
| Presser Foot Lift | Automatic & Manual Lever (Rear) | Automatic & Manual Lever (Rear) | Automatic & Manual Lever (Rear) | Manual Lever (Rear) |
| Speed Control | Yes | Yes | Yes | Yes |
| Start/Stop Button | Yes | Yes | Yes | Yes |
| Thread Cutter | Yes, Button or Pedal (optional) activated | Yes, Button or Pedal (included) activated | Yes, Button or Pedal (included) activated | Yes, Button or Pedal (optional) activated |
| Direct Stitch Selection | On Screen Menu | On Screen Menu | On Screen Menu | 10 Programable in Mode 1 |
| Automatic Lock Stitch | Yes | Yes | Yes | Yes |
| Number Of Buttonhole Stitches | 11 One Step, 10 Automatic, 1 Sensor | 11 One Step, 10 Automatic, 1 Sensor | 12 Automatic, 1 Sensor | 9 One Step |
| Attachment Storage | External Case & Bed Extension | External Case & Bed Extension | External Case & Table Drawer | External Case |
| Cover/Case | Semi Rigid | Semi Rigid | Semi Rigid | Soft Cover |
