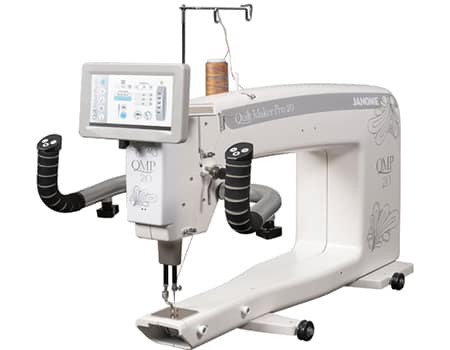

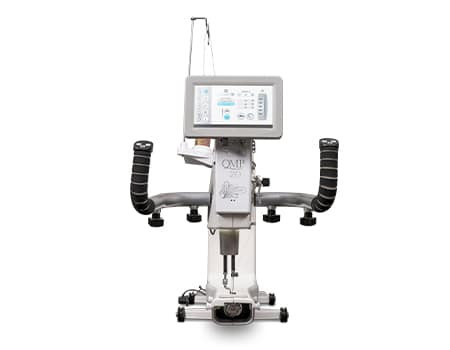

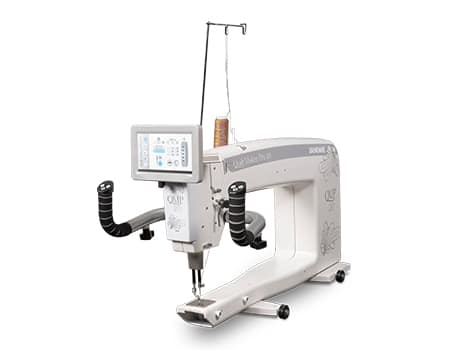

Janome Quilt Maker Pro 20

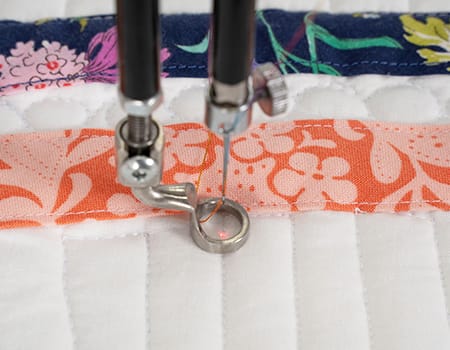

Janome, the leader in innovative products that have changed the sewing industry, is advancing your quilting capabilities with our Quilt Maker Pro 20. The Janome Quilt Maker Pro 20 offers 2,500 SPI with cruise and precision stitch regulation. Experience effortless quilting using the fully independent, adjustable handlebars making micro quilting a breeze. Never again will you need extra lighting with the state-of-the-art LED lights around the needle, throat space area, and the bobbin area, making it easy to see every stitch and every speck of fuss below. Second guessing needle position is over with our needlepoint laser light that gives you precise needle position. Personalize your handlebar buttons where they are perfect for your needs, whether you are right or left-handed, allowing you to have significant button functions on either handlebar. So order the perfect quilter’s machine today!
Key Features
- 20″ Machine Arm
- Speeds up to 2,500 SPM
- Two modes of Stitch Regulation from 4 to 24 SPI
- Manual speed mode with 3 customizable presets
- 5 basting stitch options (1/4″, 1/2″, 1″, 2″, 4″)
- Built-in telescoping thread stand

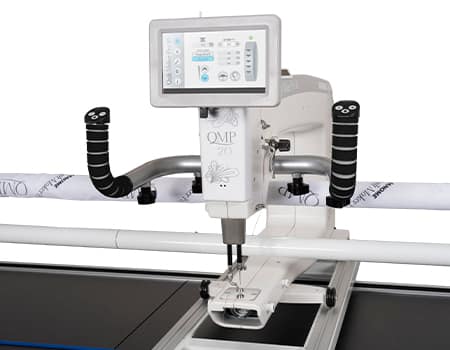

- Independently adjustable handlebars for perfect micro quilting
- 2 quick change sewing feet: closed toe foot (installed) and open toe foot included
- Front and rear power switches
- LED light ring mounted above the needle and throat
- High-speed rotary hook with large-capacity M-class bobbin
- Stitch counters
|
|
Optional Accessories:
- Accessory/ Tool Tray for Proframe10V2 and Proframe12V2
- Bobbin Case (QM)
- Bobbins (QM/8pk)
- Channel Locks
- Couching Feet
- Echo Foot Set (QM)
- EZ Ruler Foot
- Fabric Hammock
- for Proframe10 V2
- Glide 3 Foot
- Hand Wheel Kit
- Hand Wheel Kit Proframe10V2 and Proframe12V2
- Horizontal Spool Pin
- Leader Set 11′
- Leader Set 9.5′
- Micro Foot
- Needles 100/16R (10pk)
- Needles 110/18R Black (10pk)
- Needles 90/14R (10pk)
- Pro Highlight 2′ Extension
- Pro Highlight 2′ Extension
|
|
Machine Specifications:
| Leader Cloths: |
Yes |

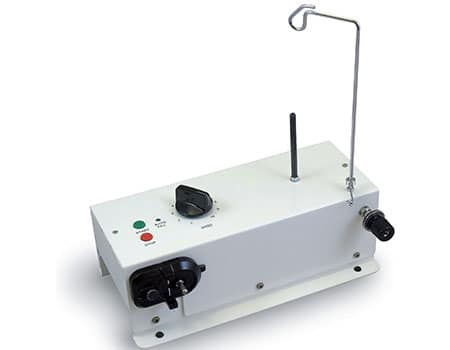

| Independent Bobbin Winder: |
Yes |

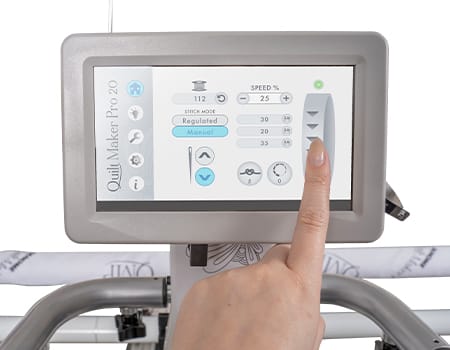

| Touch Screen: |
Yes |

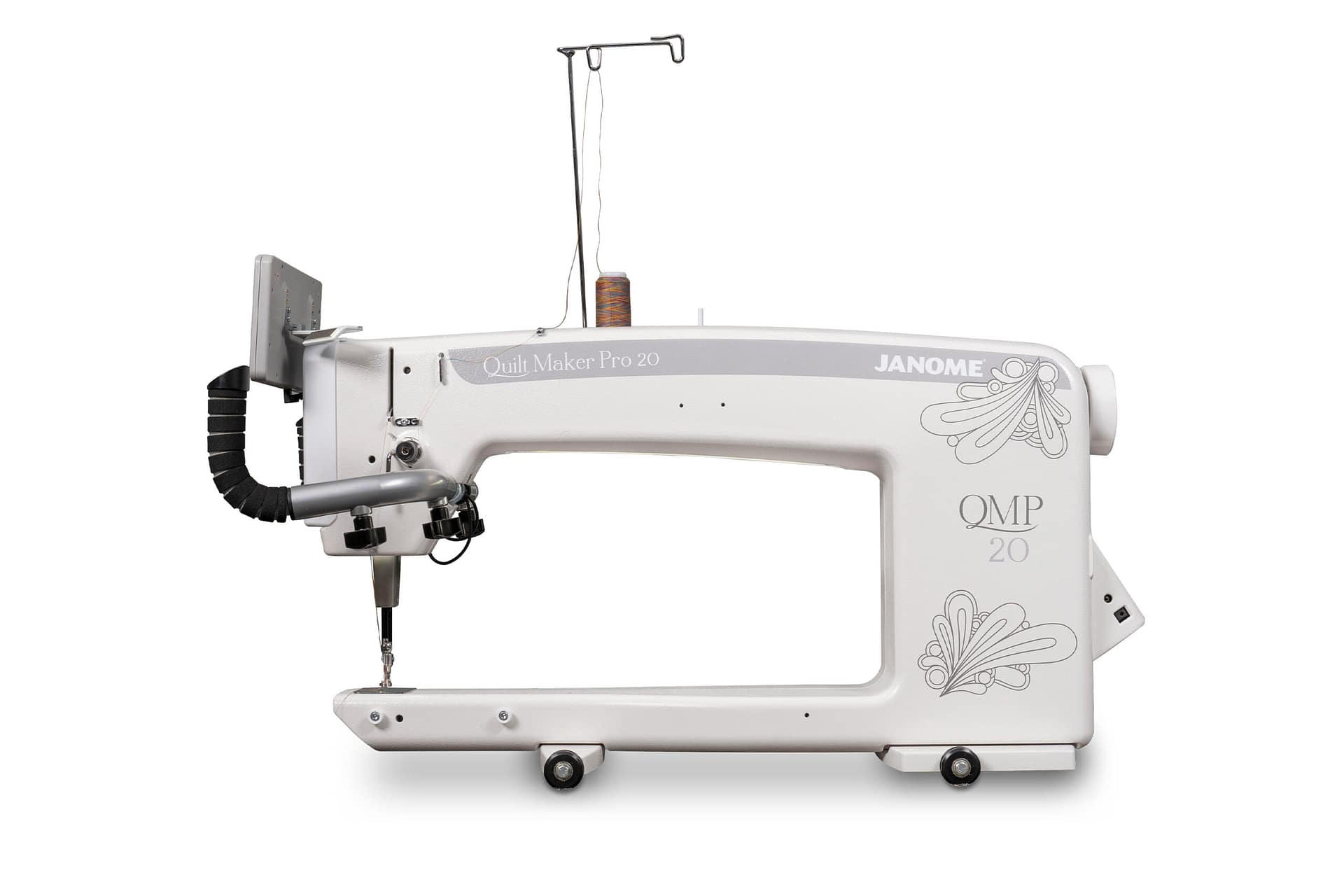

| Machine Arm Length: |
20″ |
| Machine Height: |
Not Available |
| Quilting Area: |
10′, or 12′ |
| Maximum Speed: |
2,500SPM |
| Stich Regulation: |
Yes |
| Manual Speed Mode: |
25 – 2,500 SPM |
| Stitches Per Inch: |
4-24 stitches per inch |
| Basting Stitch Options: |
Yes |
| Thread Stand: |
Yes |
| Tension: |
Easy Thread |
| Handlebars: |
Yes |
| Screen Display: |
Yes |
| Power Switches: |
2 |
| Lighting: |
Built in LED lighting |
| Lighting Locations: |
Handle Bars, Light Ring |
| Included Feet: |
Open-toe Foot |
| Laser Light: |
Optional |
| Bobbin: |
Aluminum, Class M |
| Low Bobbin Sensor: |
Yes |
| Rotary Hook: |
Yes |
| Stitch Counters: |
Yes |
| Needle Stop Position Control: |
Yes |
| Timers: |
Yes |
| Built-in Diagnostics: |
Yes |
| Cast Aluminum Molding Sewing Head: |
Yes |
| Warranty: |
Yes |
| Leg Height Adjustment: |
Yes |
| Feet Adjustment: |
Digital |
| Frame Material: |
Metal |
| Bungee: |
Included |
| Cord Guide Holds: |
Yes |
| Ratchet System: |
Yes |
Pro Stitcher:
The Pro-Stitcher quilting system integrates Janome’s world-class quilting machines with the latest computer technology. The software is managed from the included touchscreen tablet conveniently mounted on top of the quilting machine. This rich and full featured software is easy to learn and makes precise quilting simple and fun!
The Janome QM Pro-Stitcher quilting system integrates Janome’s world-class quilting machines with the latest computer technology to help you finish more quilts. Pro-Stitcher guides the machine to quilt any design you want to use, create, or customize.
Features:
-
- 12-inch color touchscreen computer mounted on the stitch-regulated quilting machine
- Operate entire system from one screen
- Includes 800+ designs, including a designer showcase of motifs from your favorite designers
- Switch between computer-guided and free-motion quilting at the touch of a button
- Resize, Rotate and Repeat designs to fit specific areas
- Skew or Align designs to fit any area with three or more points
- Move designs into position by simply moving your finger across the screen
- Stretch and resize a design using on-screen handles
- Define and Fill an area with a design, using 2-corner (rectangles) or multi-point (any shape)
- Save and move areas
- Two-Point Rotation for border designs and fitting odd angles
- Precisely reposition designs using the Center Point, Start Point, End Point, any corner of the design area, or any point within the design
- Crop inside or outside of your design to fit your quilt, with the option to close the jumps or leave them open
- Create new start/stop points
- Place designs into borders and other odd-shaped spaces
- Customizable speed and stitches-per-inch
- Micro Tie-Off function
- Ability to read most .hqf, .hqv and .qli digital quilt patterns
- Seamless integration with Pro-Stitcher Designer™ for designing and adjusting your own patterns at the longarm machine or on your computer (included software)
- Mark and record multiple points for accurate stitch-in-the-ditch quilting
- On-screen Grid and Ruler to measure designs or area on quilt
- Reorder designs for stitching
- Horizontal and vertical channel lock
- Help menus always accessible

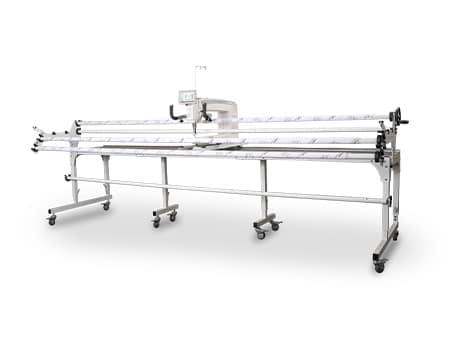

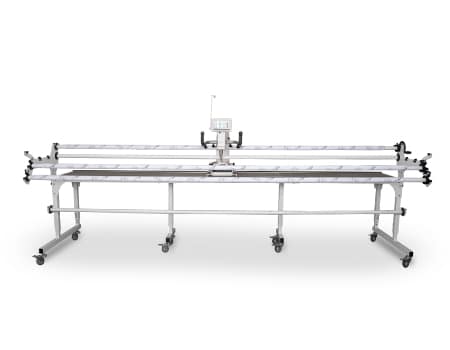

ProFrame:
The ProFrame has a Unique Quilt Top Bar Configuration that positions the quilt top below backing bar, giving increased range of motion and visibility. Frame is fully adjustable for 4’, 8’, 10′ or 12’ set ups depending on the frame chosen. 12′ frame includes three 4′ sections, 10′ frame includes two 4′ sections and one 2′ section to allow them to be configured to your desired size.
