Hi-Definition Embroidery

• Largest Embroidery Field – 11” x 18.1” (280 x 460mm)
• Fastest Maximum Embroidery Speed – 1,200 SPM
• 1,230 Built-in Designs

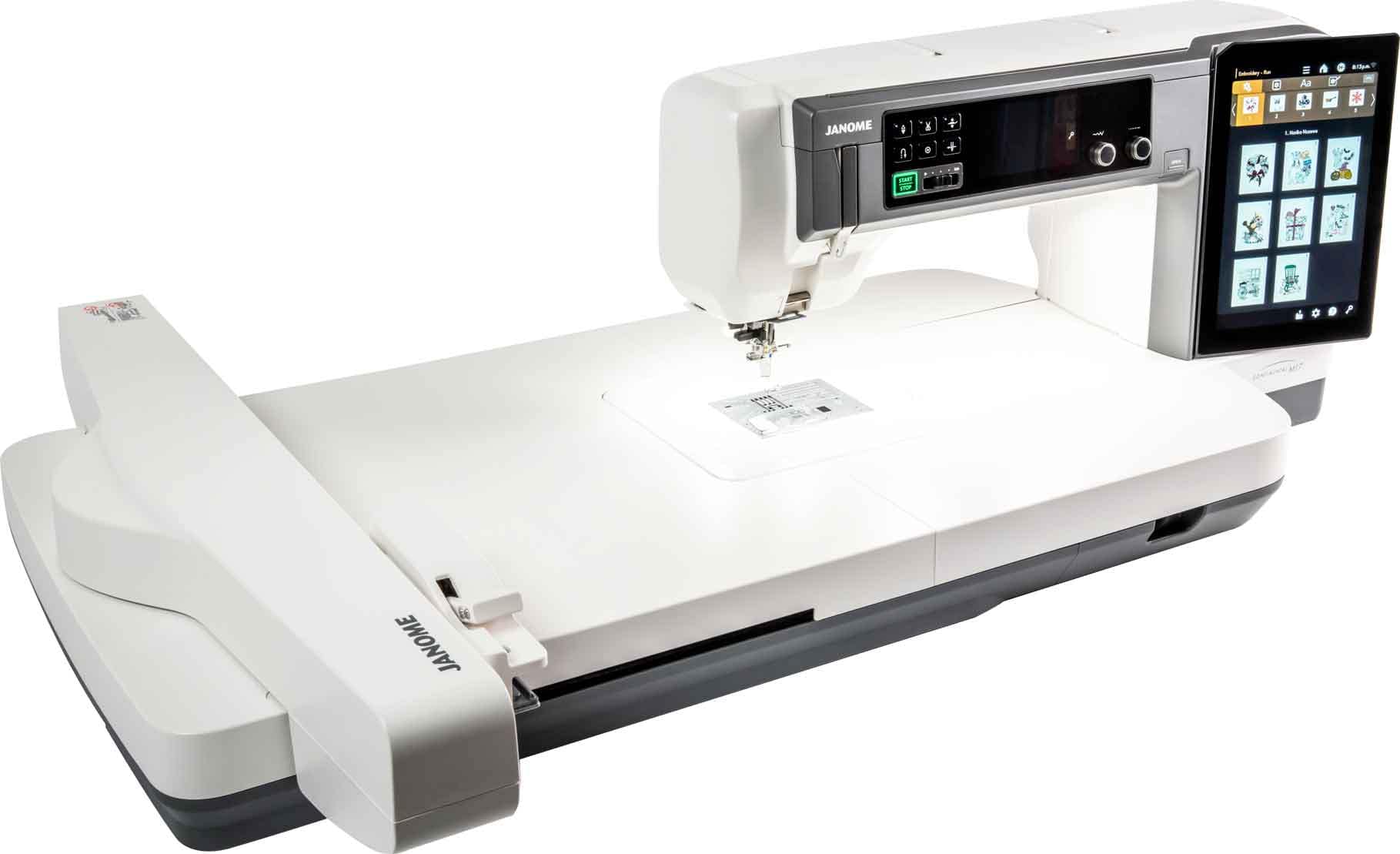

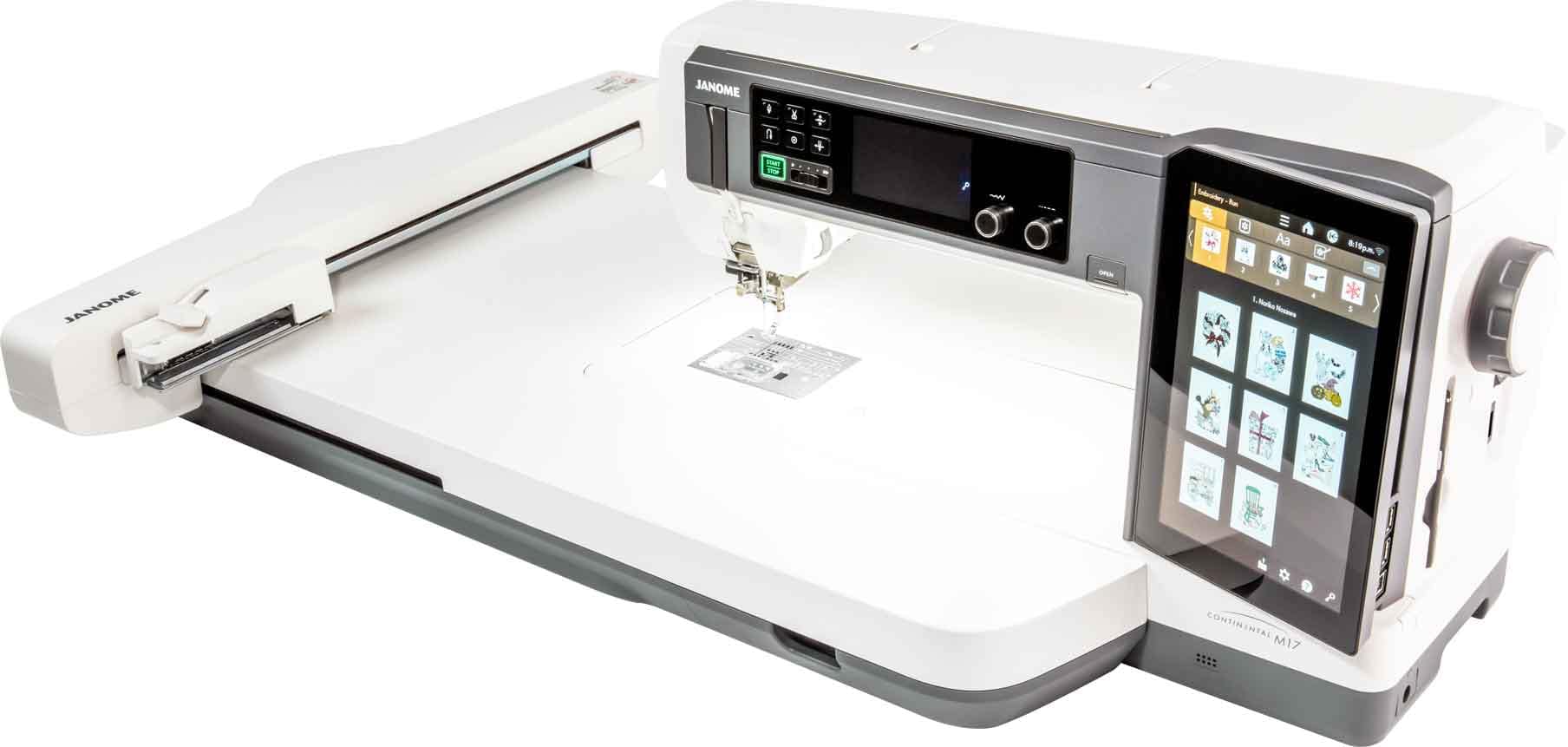

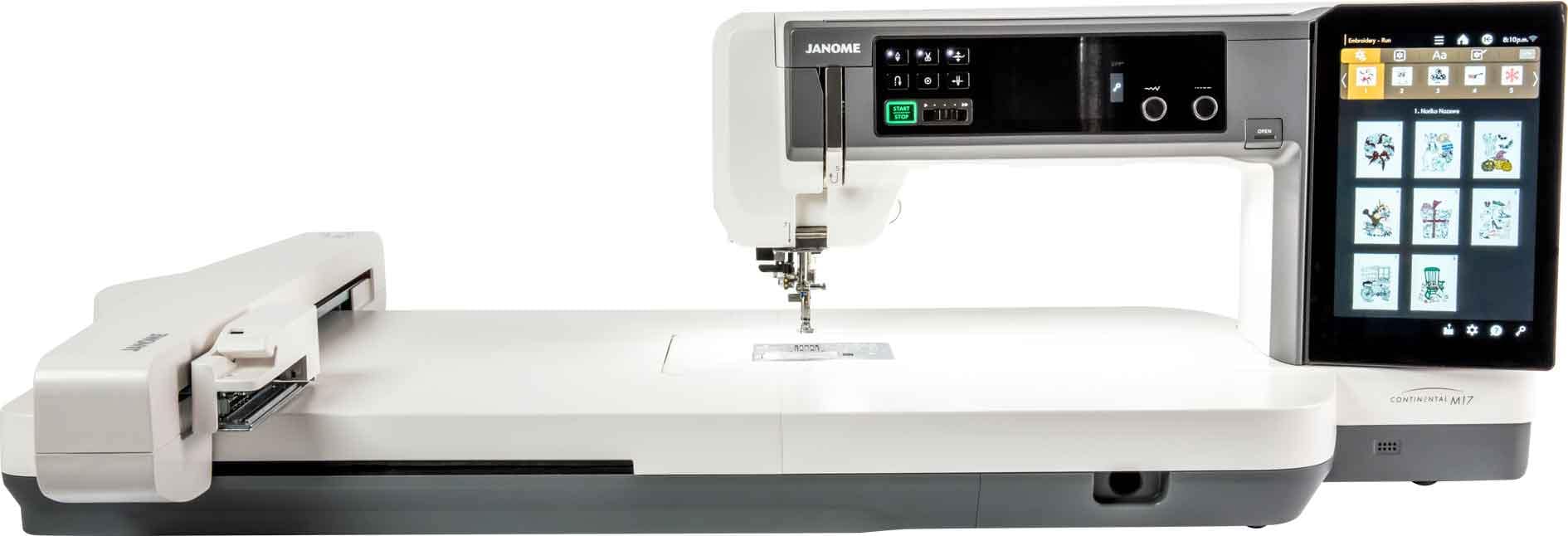

• Industrial-strength Embroidery unit inspired by Janome Robotics

• A.S.R. (Accurate Stitch Regulator) – Compatible with Rulers
• AcuFeed Flex Fabric Feeding System
• Largest Workspace – 13.5” x 5.5” (343 x 140mm)

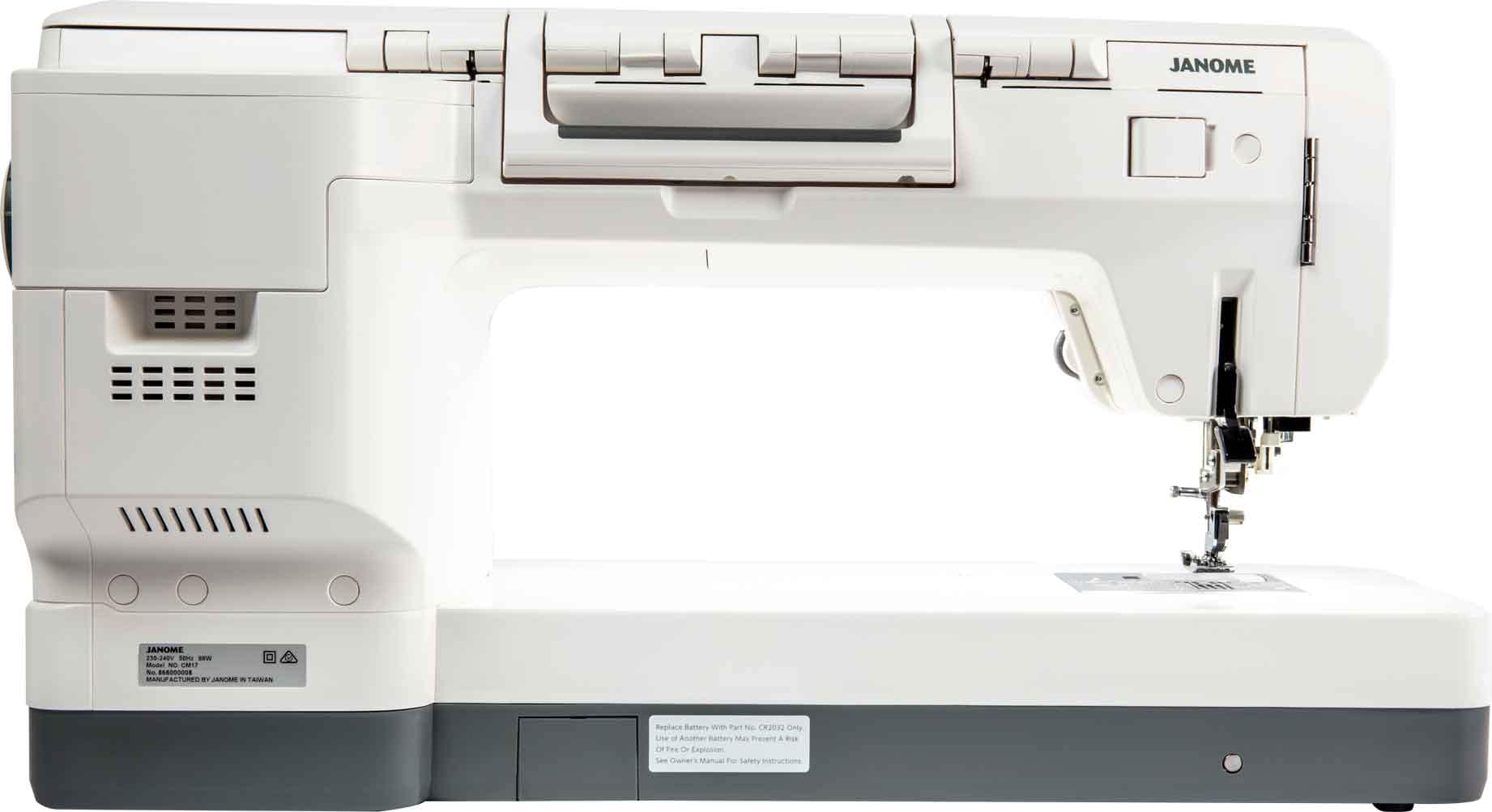

• Slim Machine Head
• Bright, Shadowless Lights
• Powerful Motor – Speeds up to 1,300 SPM & Penetration up to 13 layers of denim
• Needle bar thumbwheel for precise needle movement

• 1,230 Built-in embroidery designs
• Maximum embroidery size: 11” x 18.1” (280mm x 460mm)
• Embroidery Spotlight Positioning Marker
• RE46d Hoop uses Carbon Fiber Reinforced Plastic to increase strength with no added weight

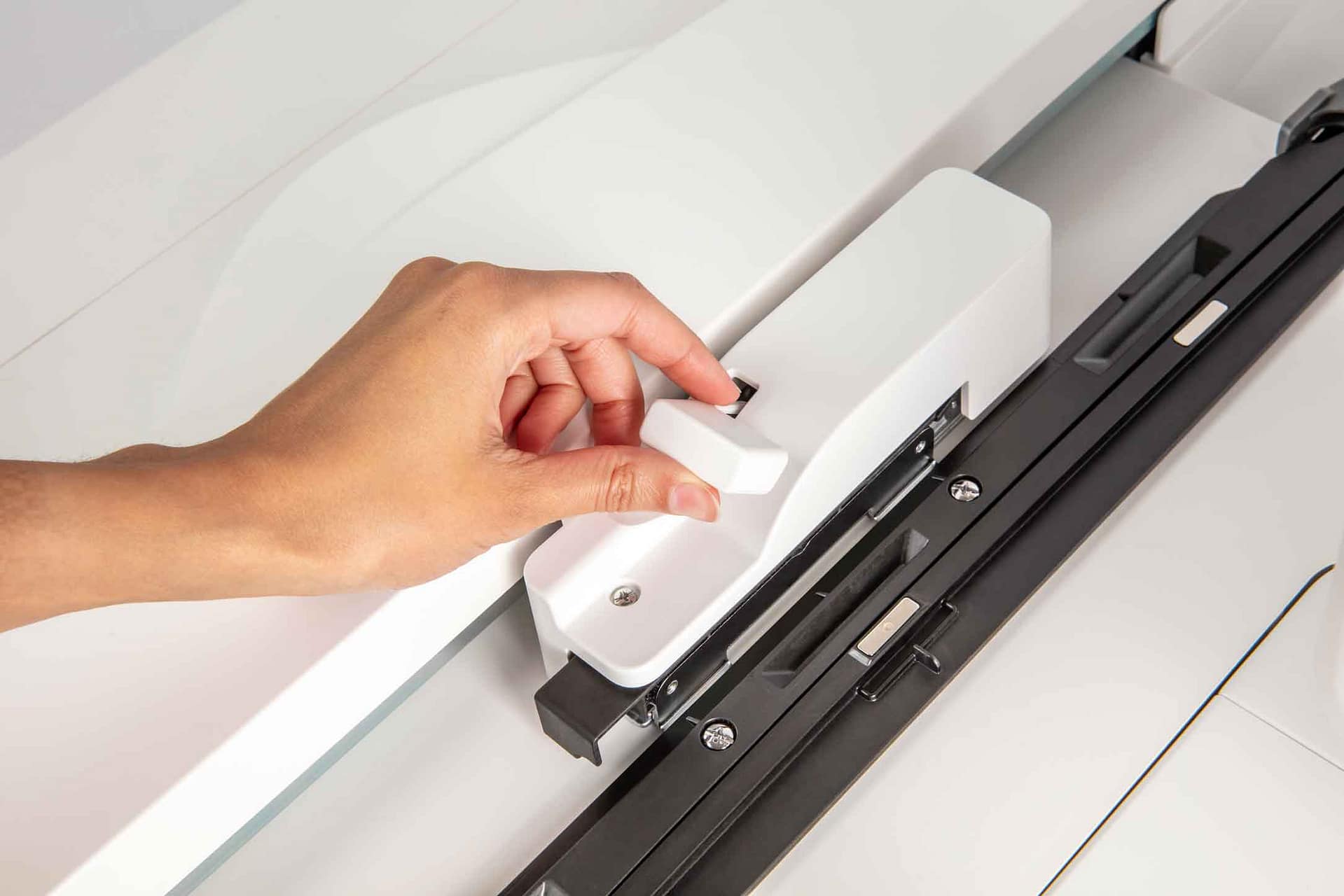

• Quick-Tightening Levers on embroidery hoops

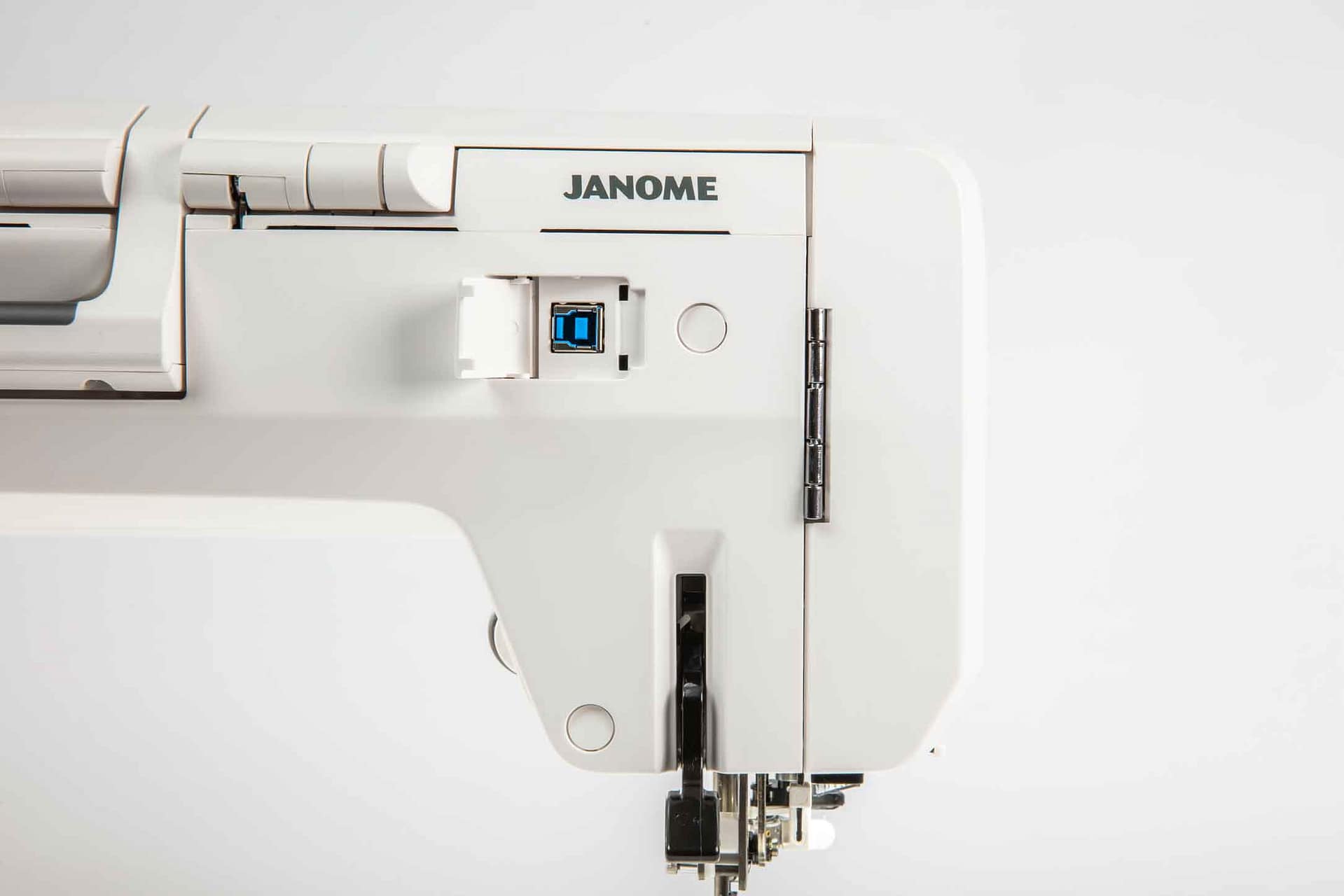

• Design transfer options: Wireless, USB, Direct PC connection

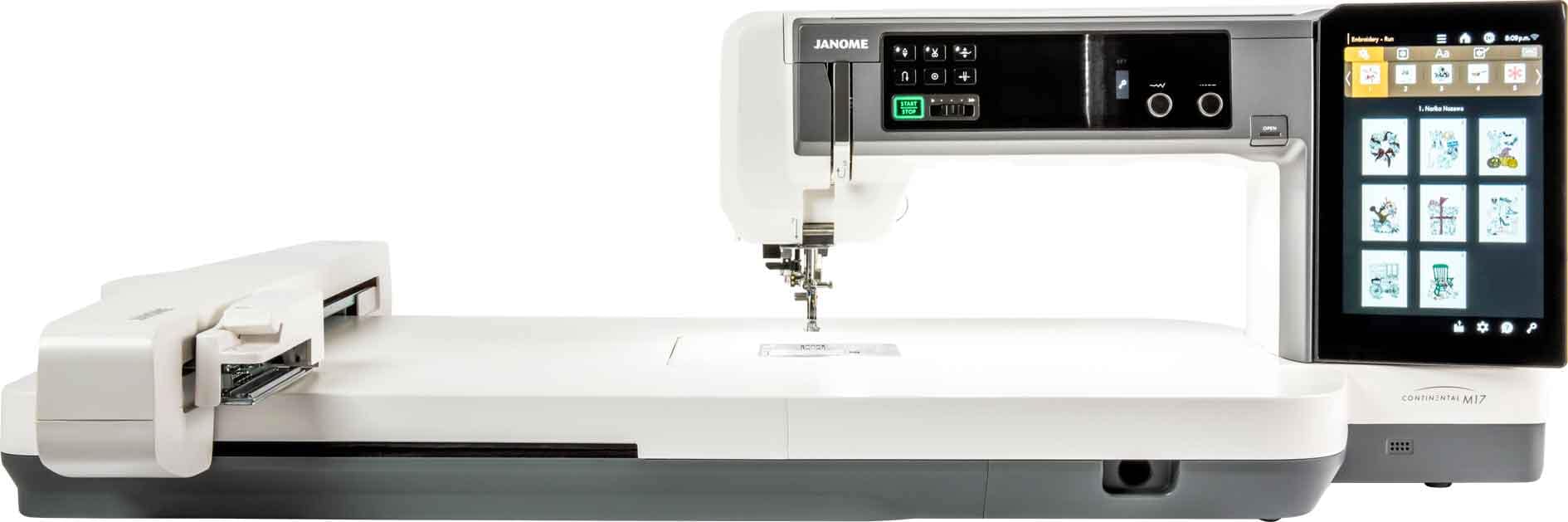

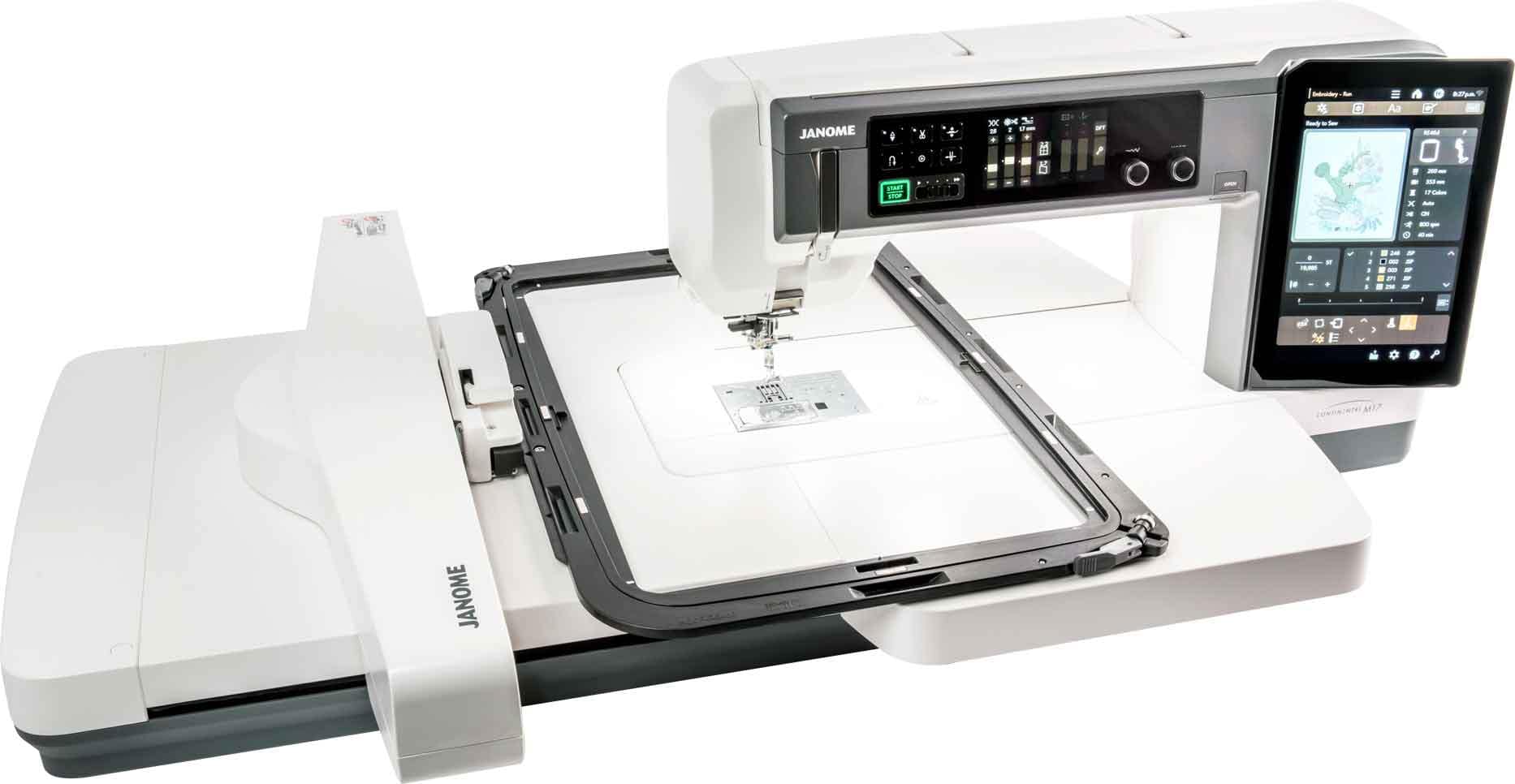

• Gantry Style Embroidery Arm/Embroidery sewing speed: 400 – 1,200 spm
• Embroidery format: .JEF, .JEF+, .JPX/Editing functions: Resize, Rotate, Flip, Zoom, Duplicate, Combine, Sewing Order, Single Color Sewing, Color Grouping, Corner Layout
• Programmable jump thread trimming
• Adjustable speed while embroidering/Flexible stitch traveling by units of 1, 10, 100, and 500
• 10 Fonts with European characters
• 2&3 Letter monogramming function
• Automatic enabling cutwork
• Auto return post thread break
• Adjustable hoop positioning
• Thread brand selection: Janome (Polyester and Acrylic), Guttermann Sulky (Rayon 40), Madeira (Polyneon 40), Robison-Anton (Polyester 40 and Rayon 40), Mettler (Polysheen), Jenny Haskins (Rayon), Hilos Iris

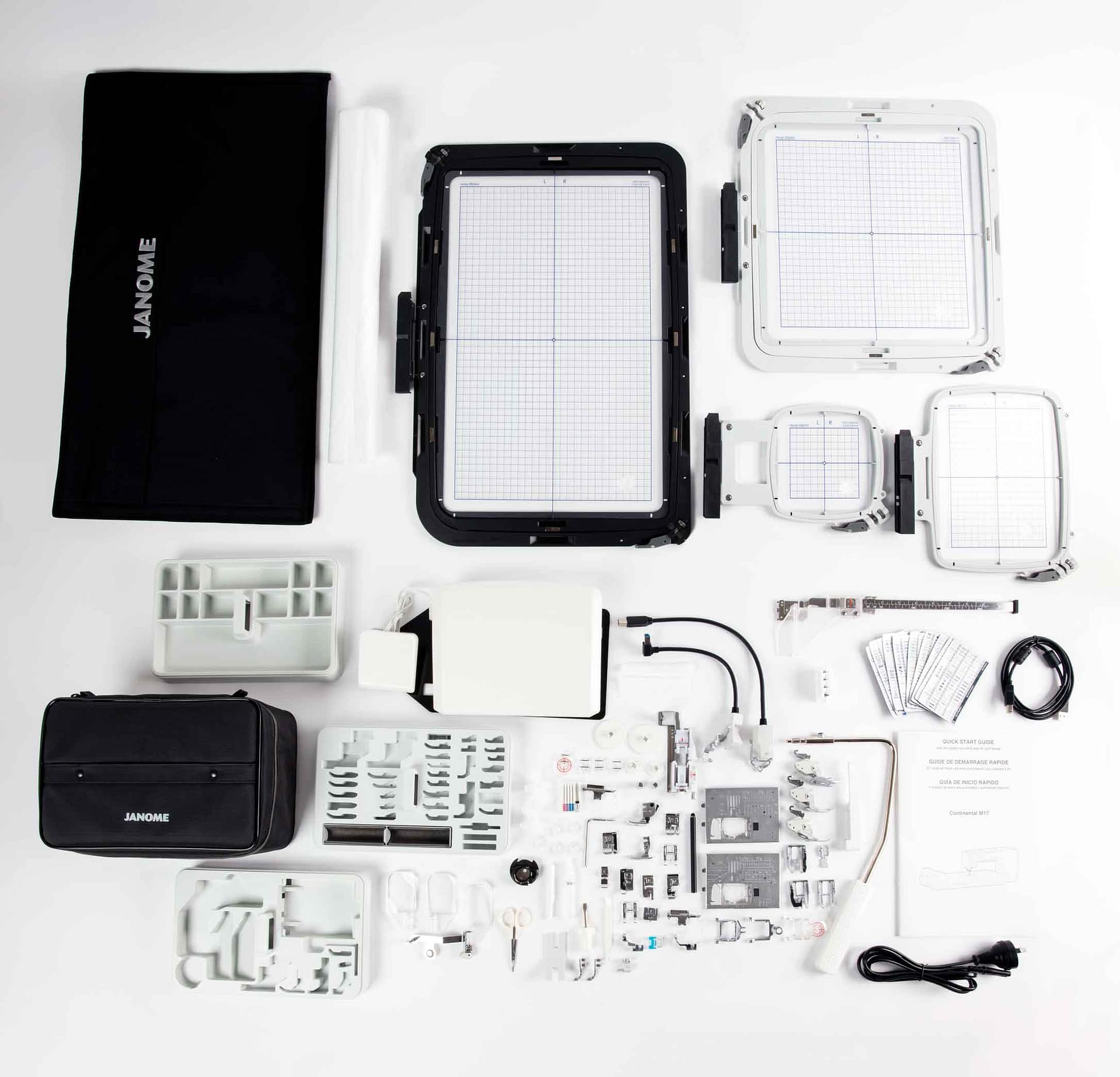

• Included Hoops:

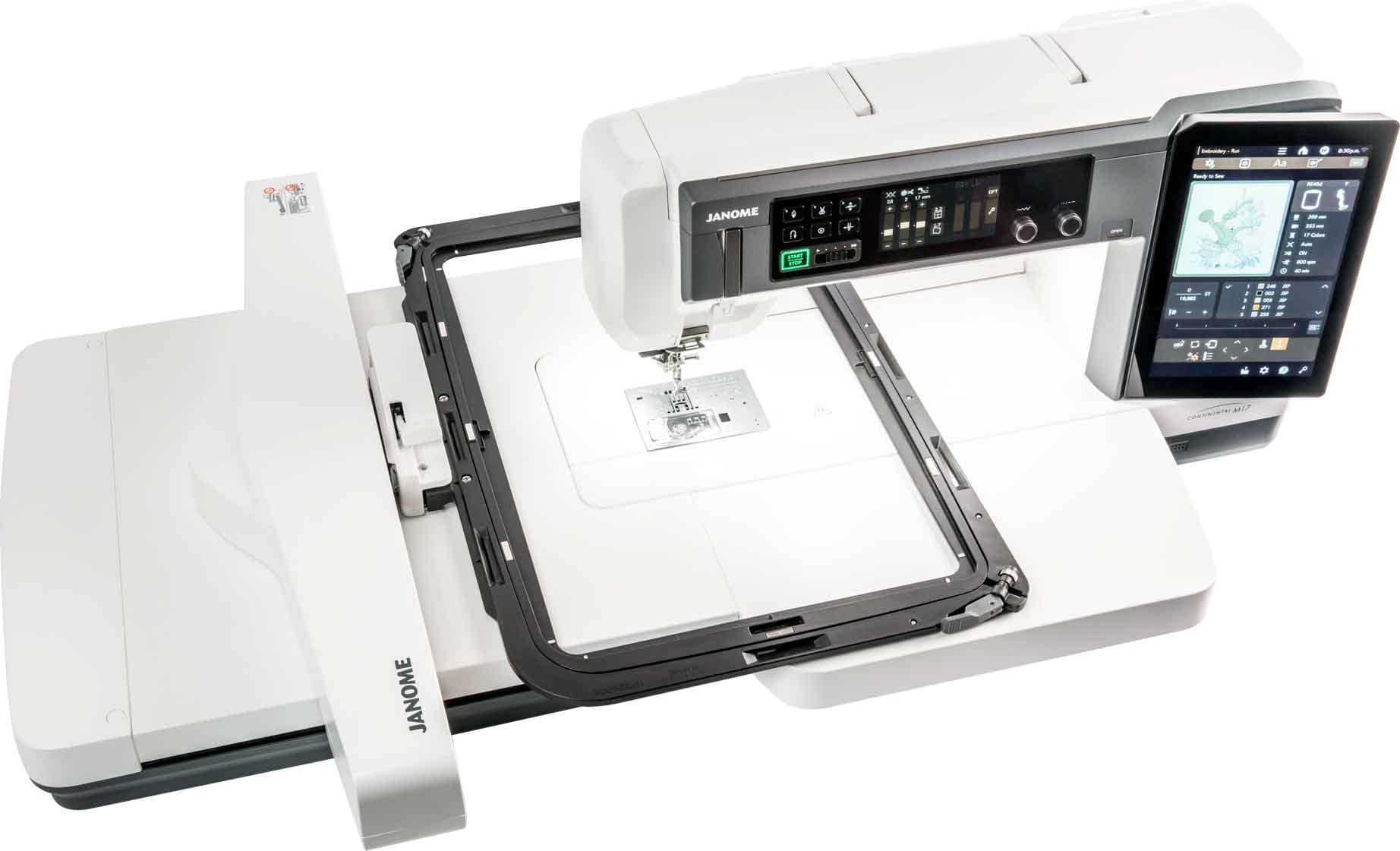

  • RE46d (280×460 mm / 11”x 18.1”)
  • SQ28d (280×280 mm / 11”x 11”)
  • RE20d (140×200 mm / 5.5”x 7.9”)
  • SQ10d (100×100 mm / 3.3”x 3.3”)

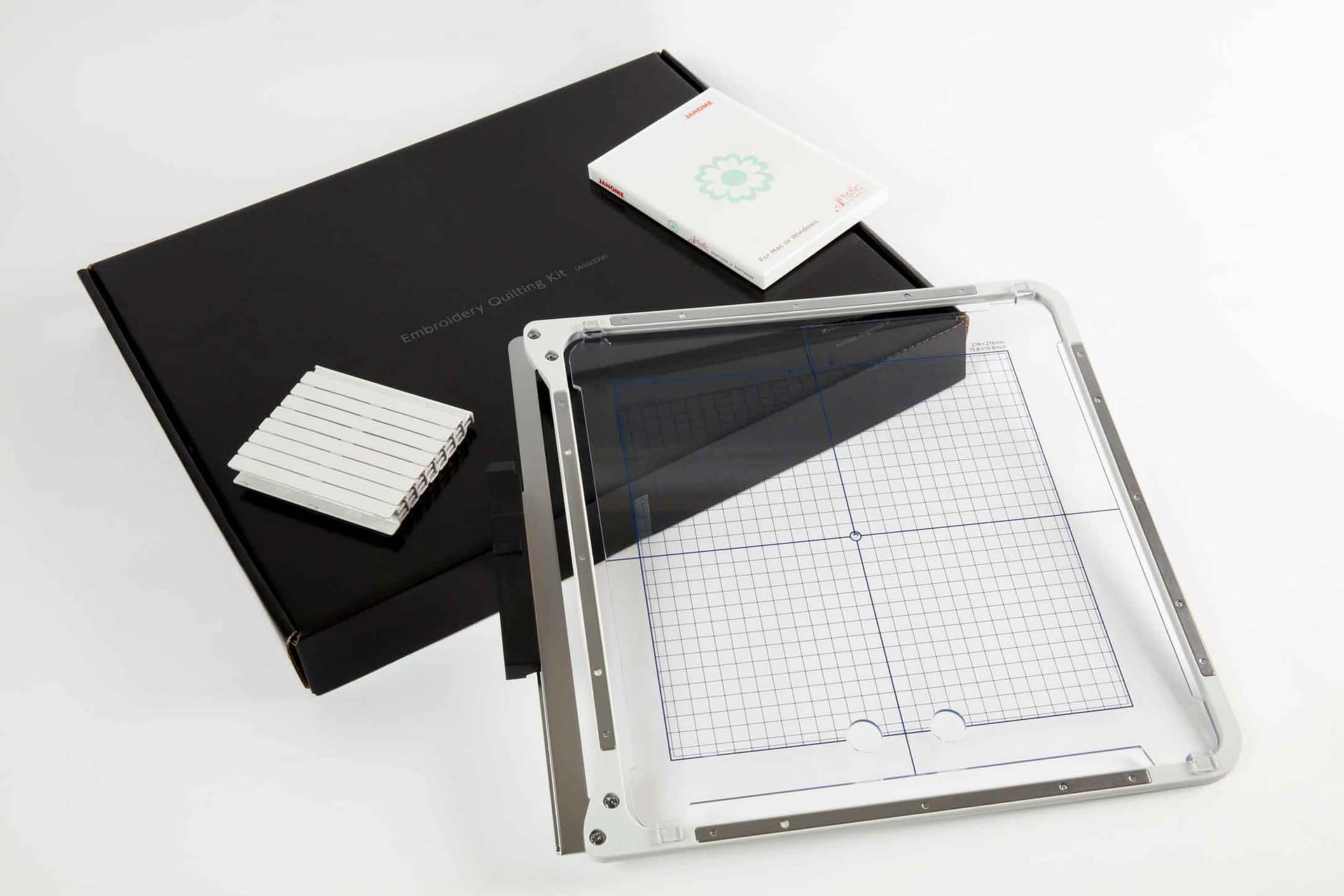

  • ASQ27d (270×270 mm / 10.6”x 10.6”) Bonus for quilting

Hi-Definition Quilting:

• Stitch Regulation with included A.S.R. (Accurate Stitch Regulator)

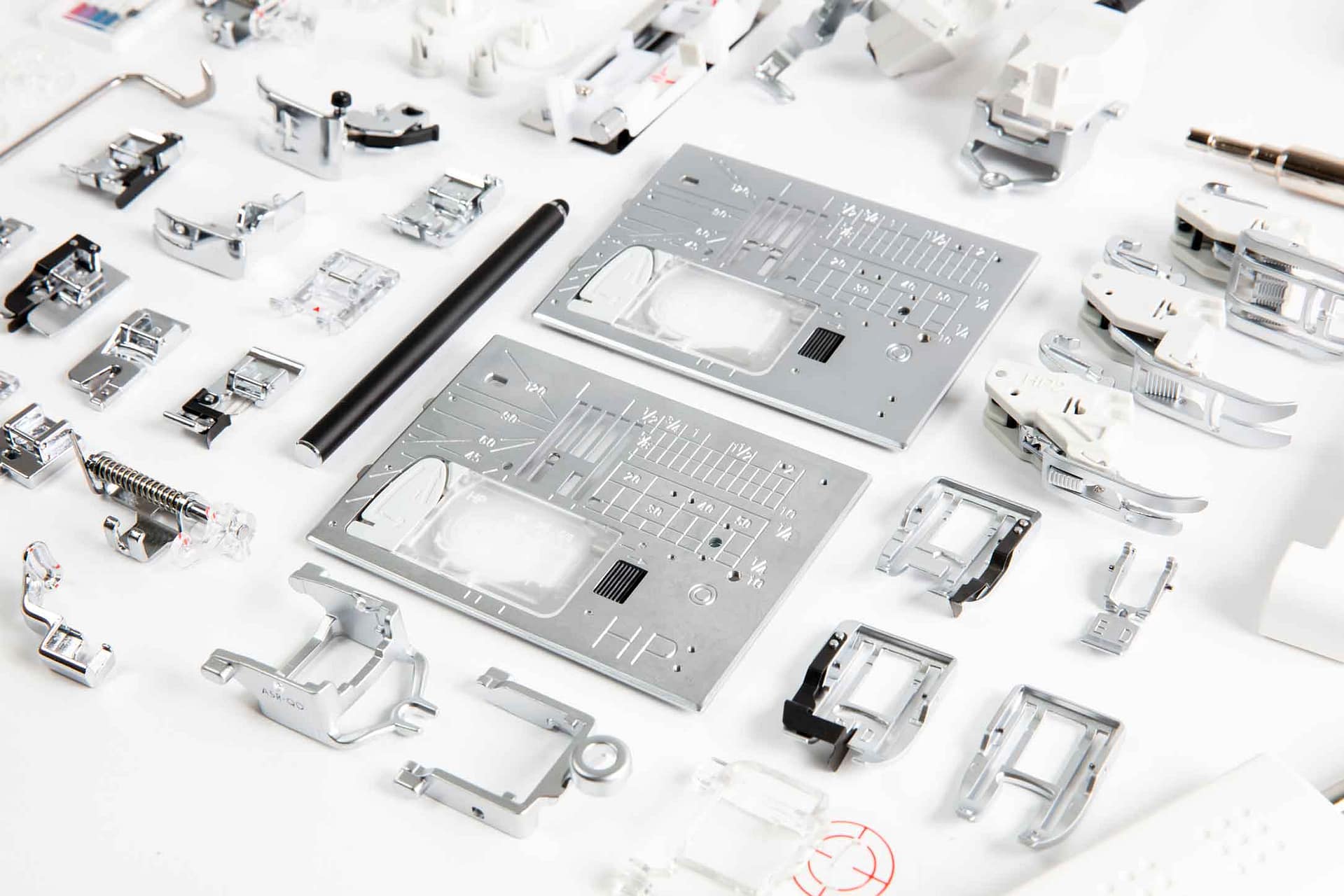

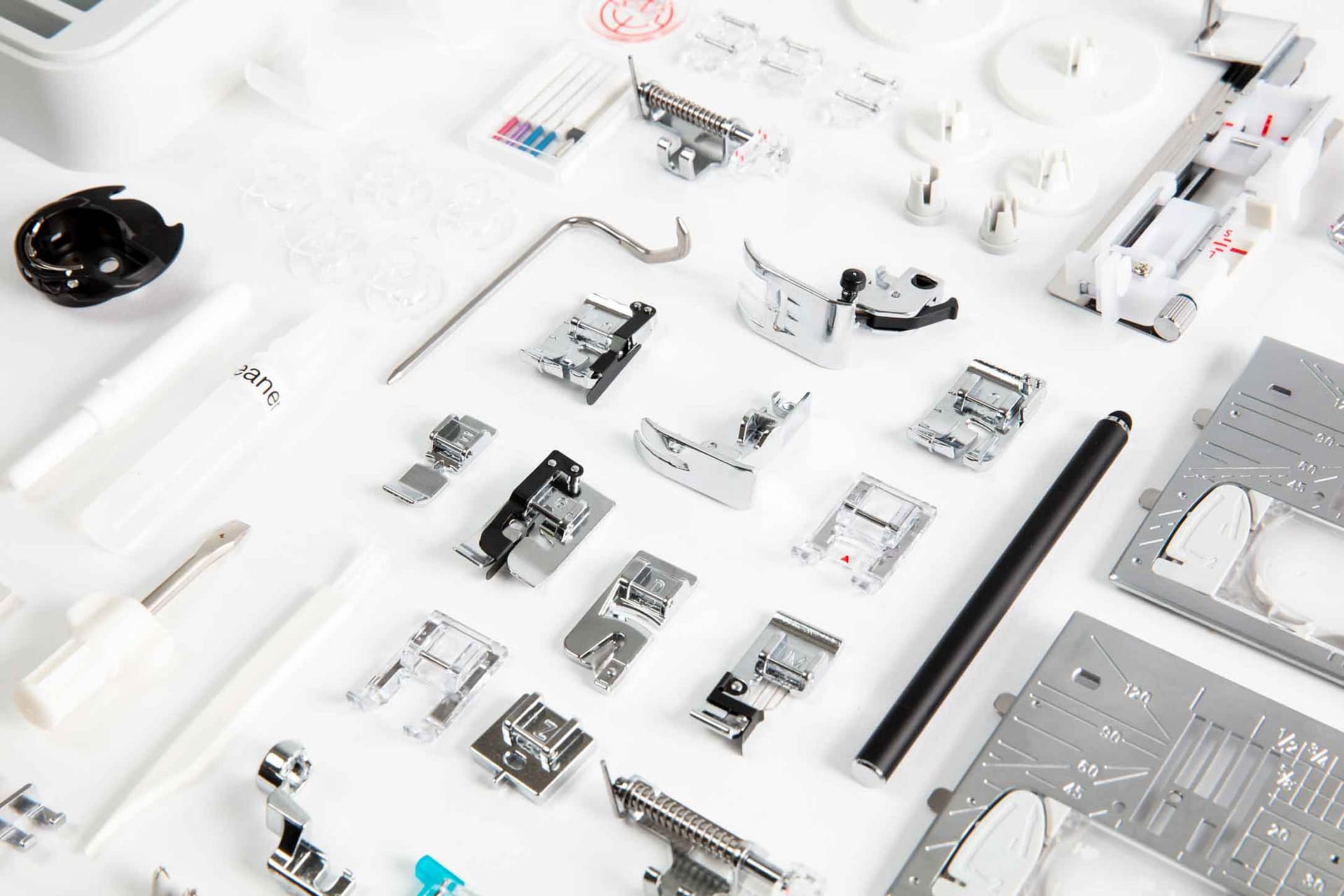

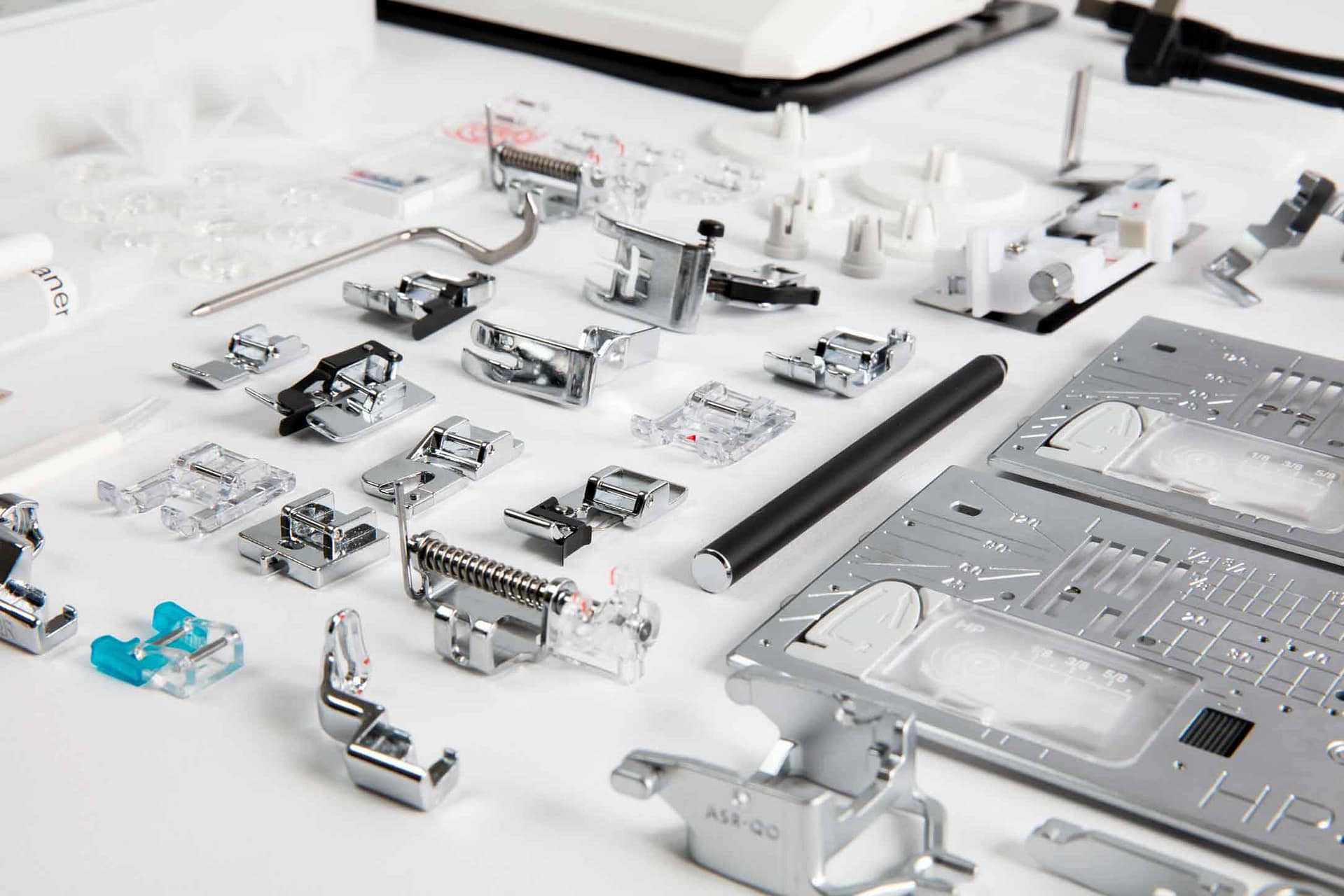

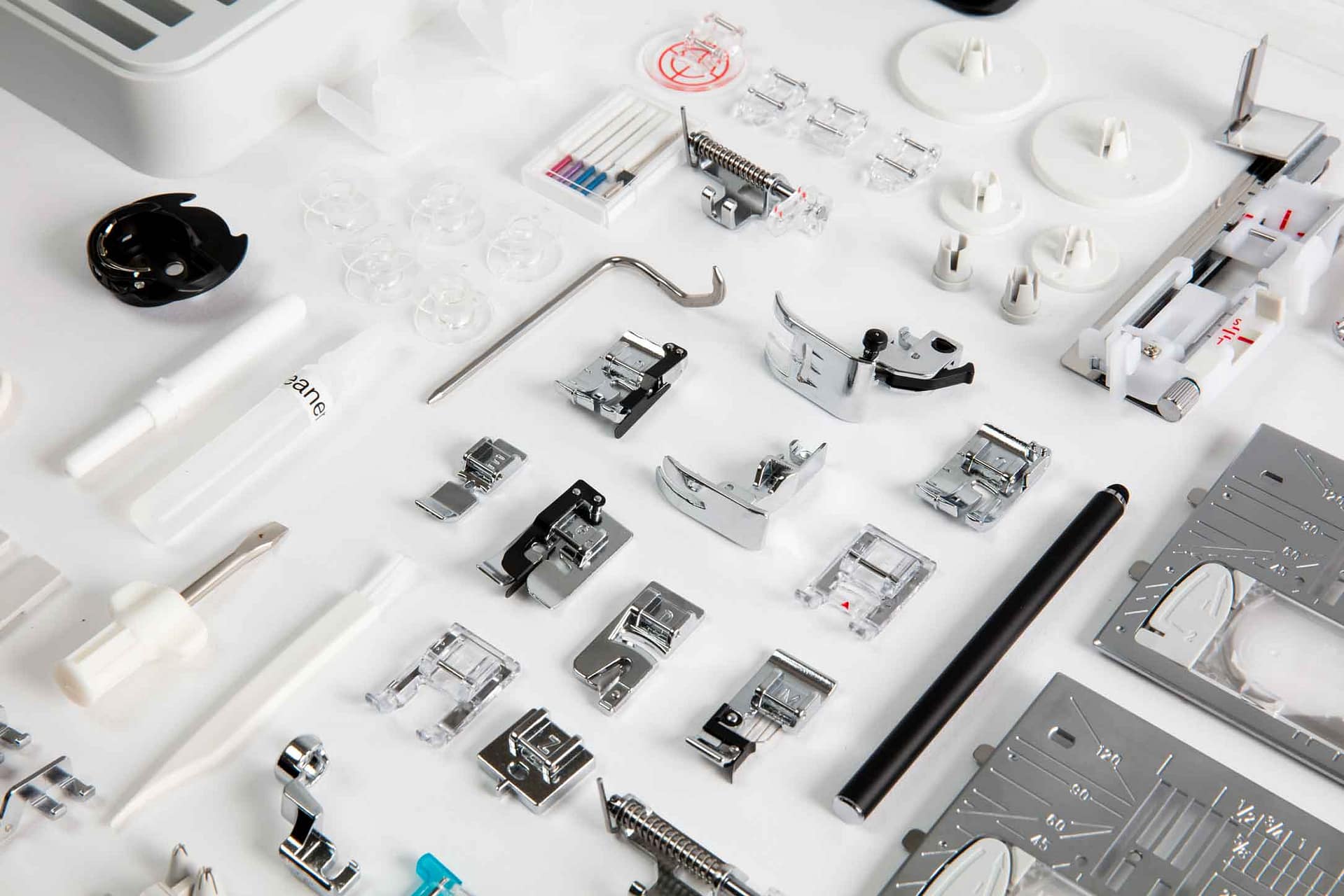

  • Four Attachments including Ruler Work
  • High Sensitivity Sensor with a range of settings to suit individual skill levels
• AcuFeed Flex Layered Fabric Feeding System

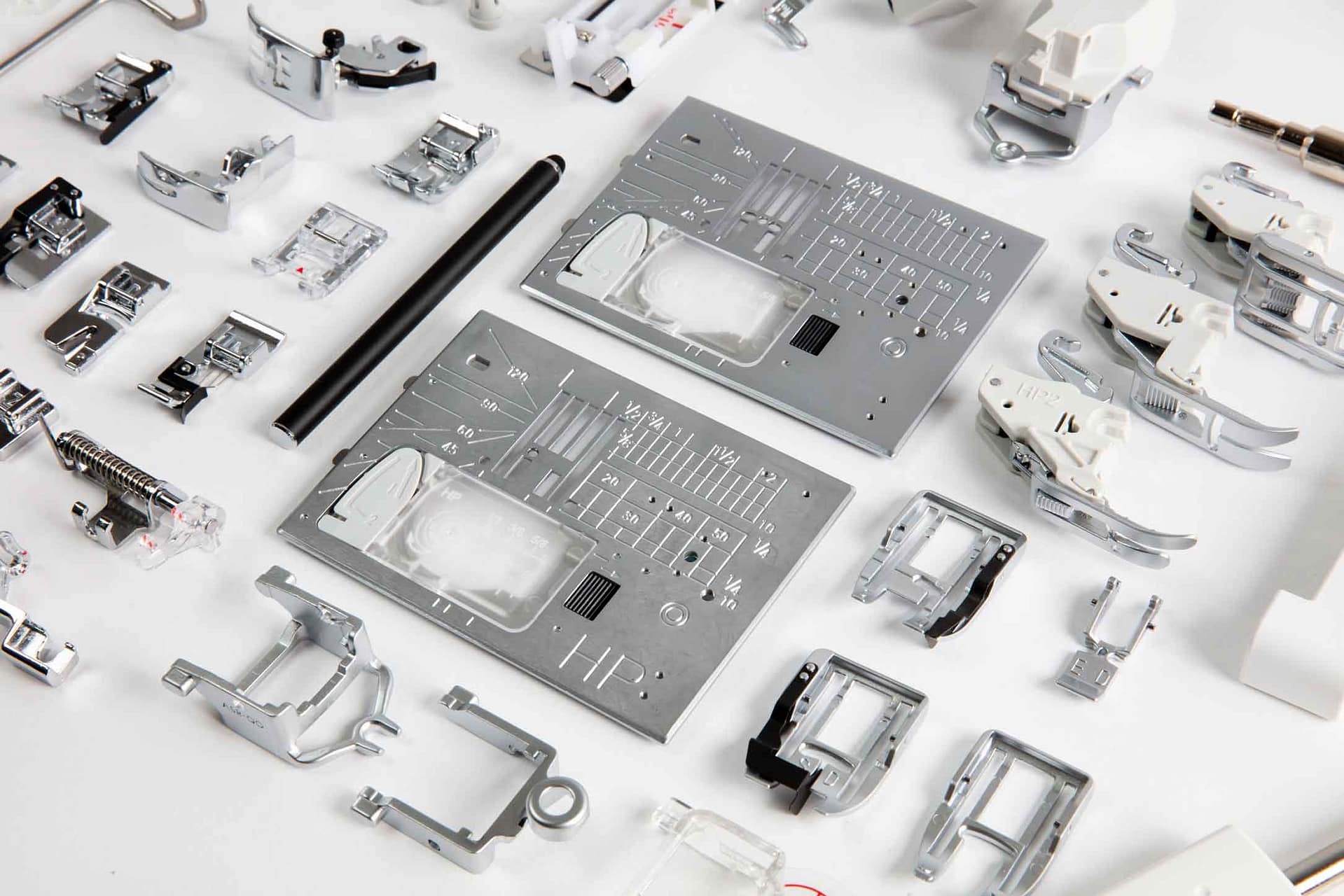

  • HP Foot and Needle Plate System for superior Scant 1/4” seam
• Seamless Workspace – 13.5” x 5.5” inches to the right of the needle
• Drop feed

Hi-Definition Sewing:

• Thumbwheel by machine head to raise and lower needle
• 850 Built-in stitches
• 13 One-step buttonholes
• Maximum Sewing Speed – 1,300 SPM Straight Stitch; 1,000 SPM Zigzag Stitch
• 7-piece feed dog
• 91 needle positions
• Variable Zig Zag for Thread Painting with width adjustment for satin stitch
• Maximum stitch width: 9mm
• Maximum stitch length: 5mm

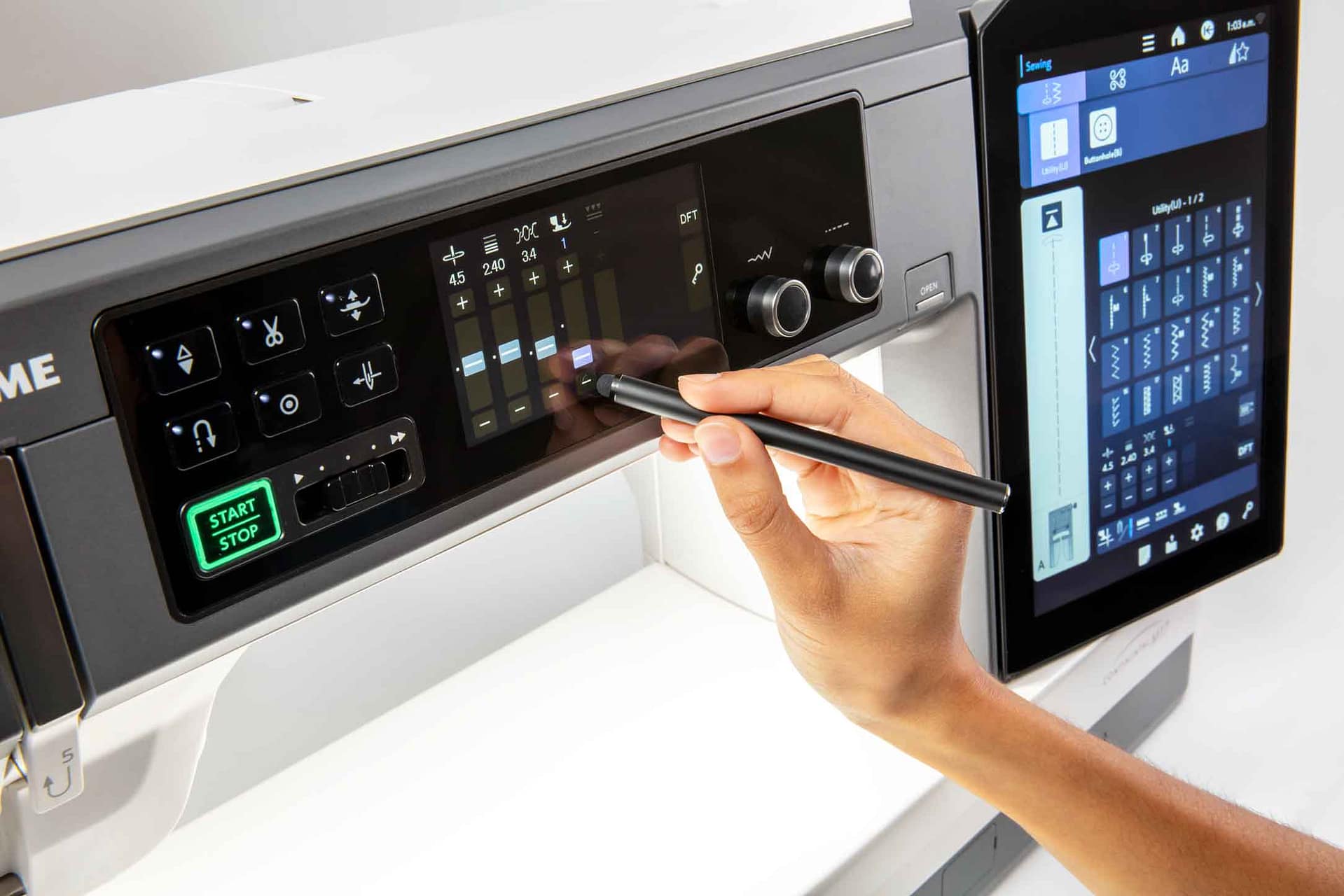

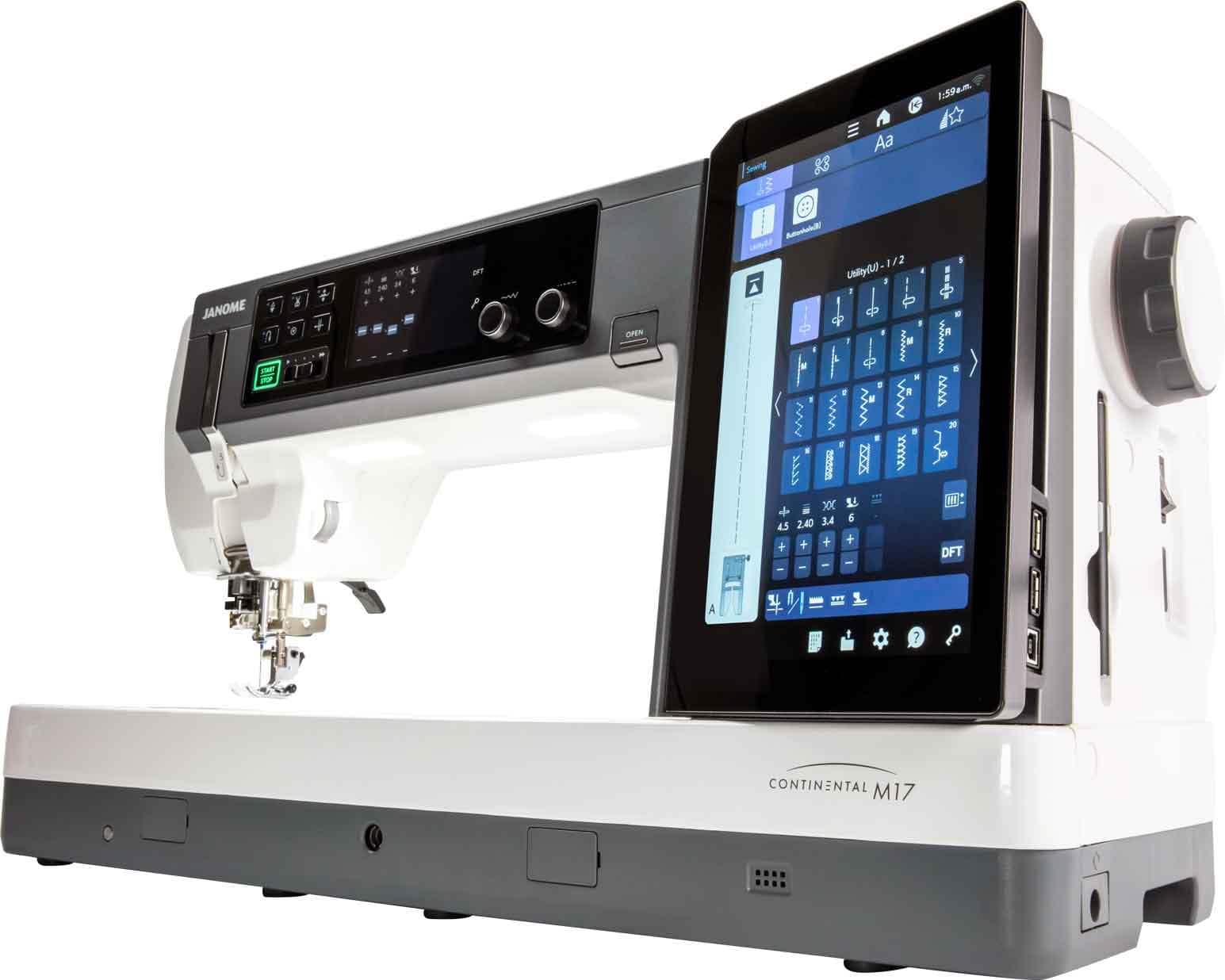

• Dual Capacitive Touchscreens

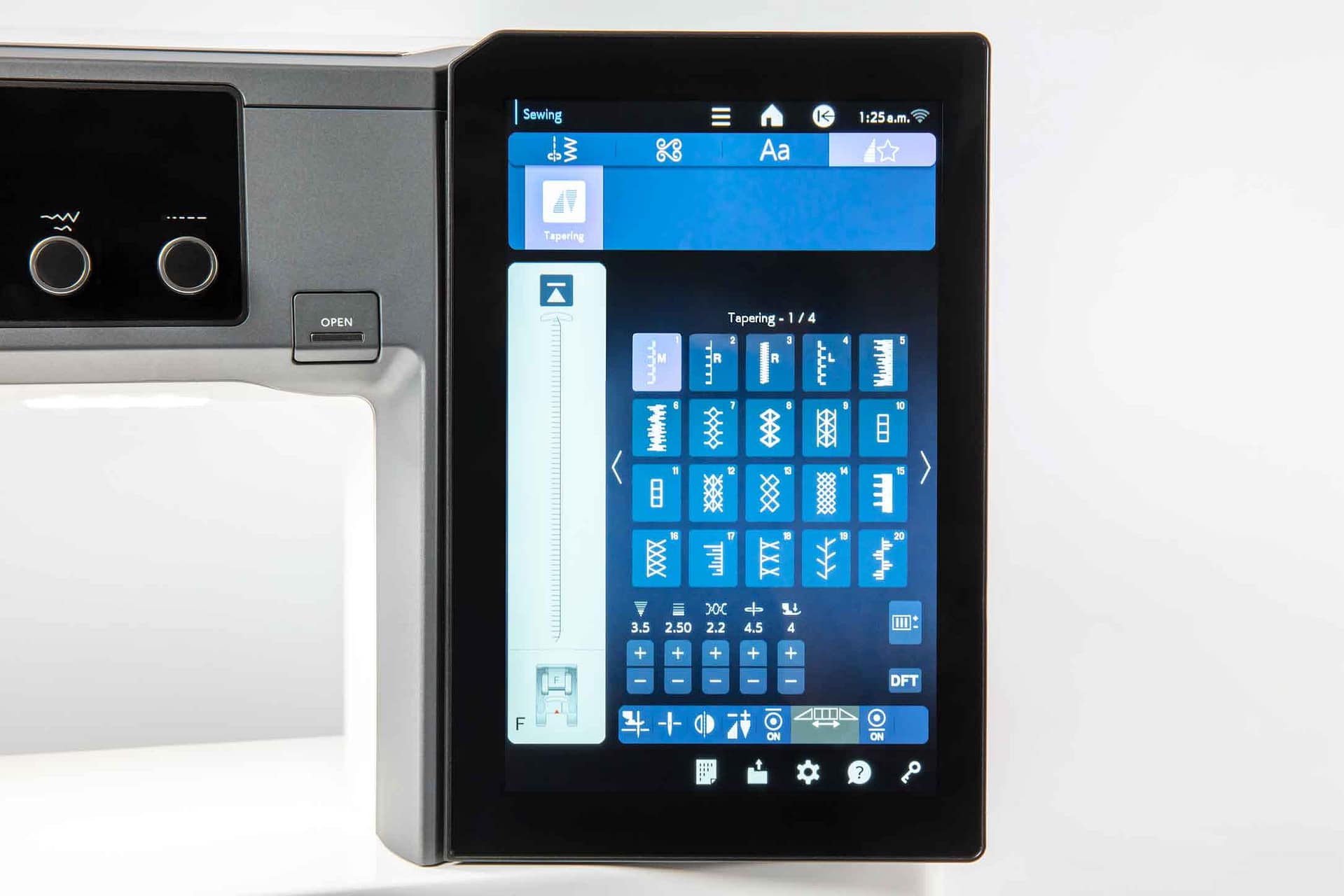

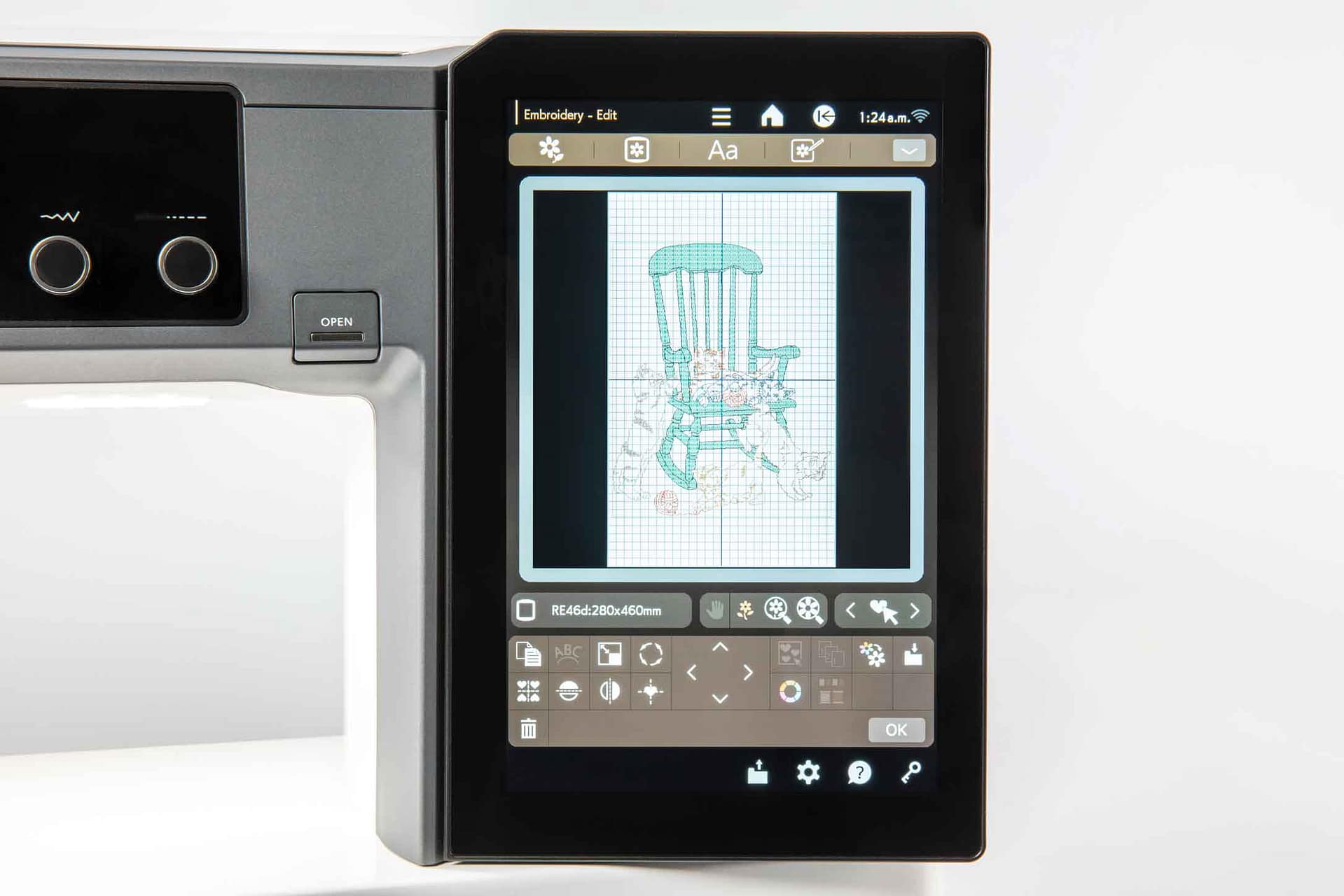

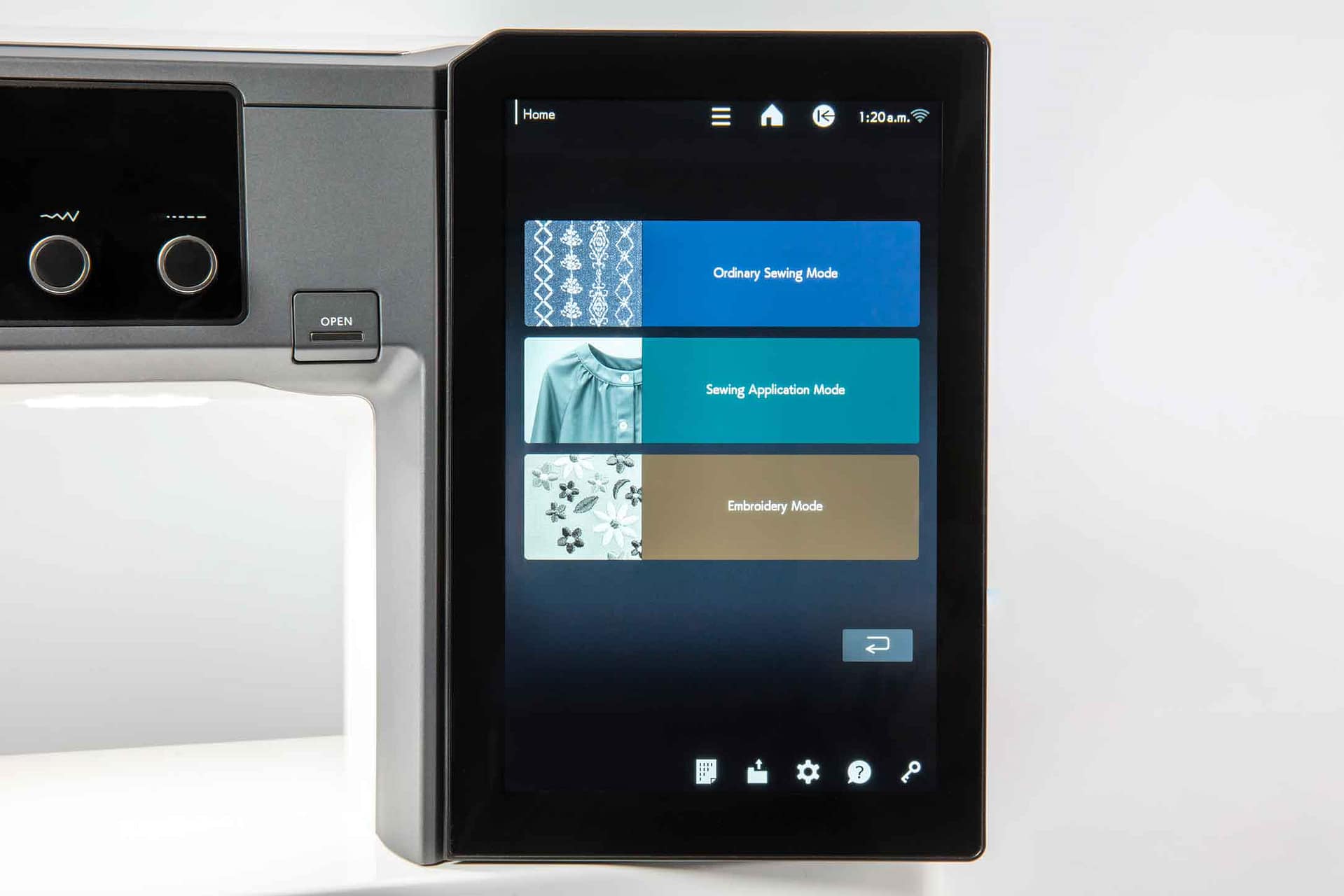

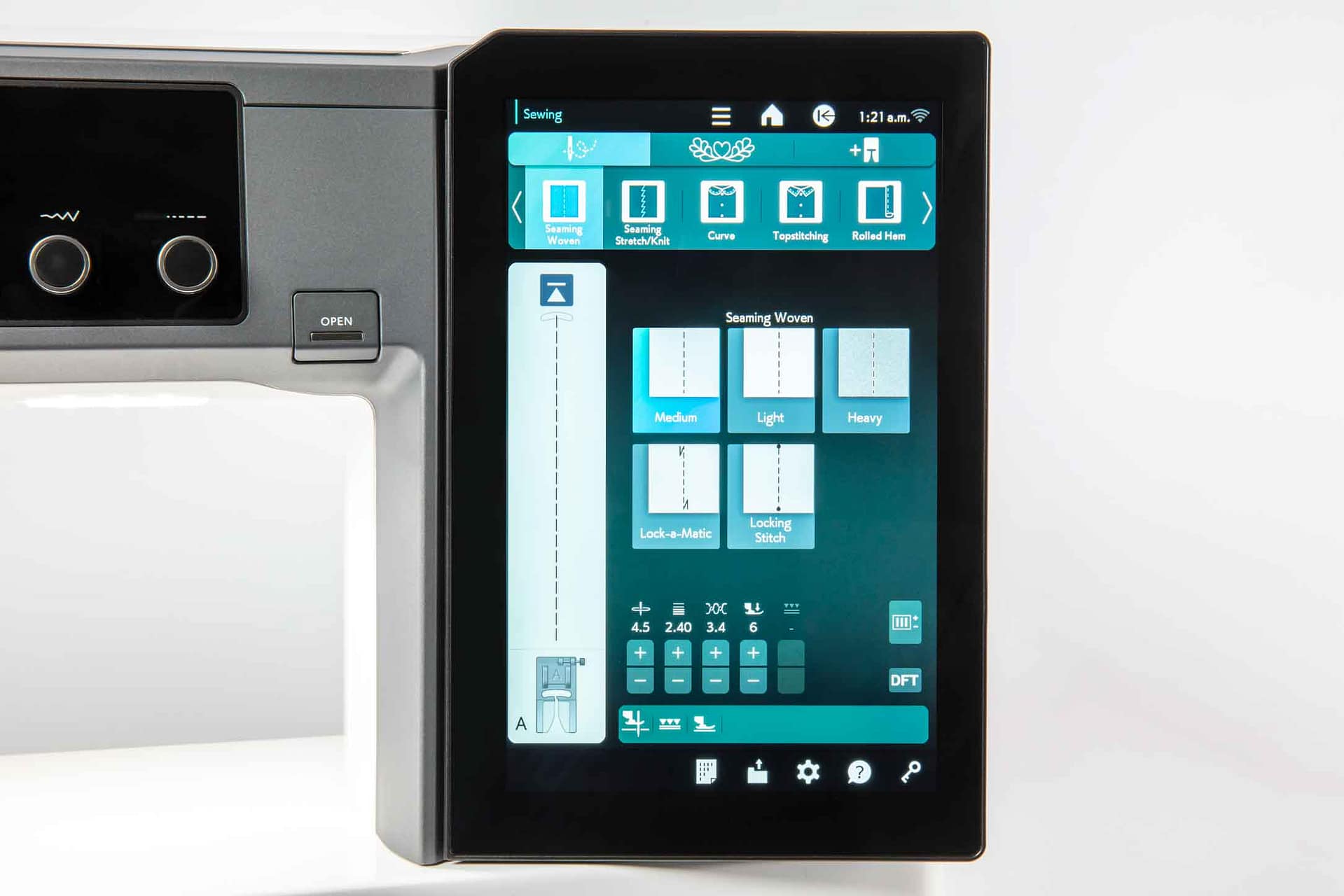

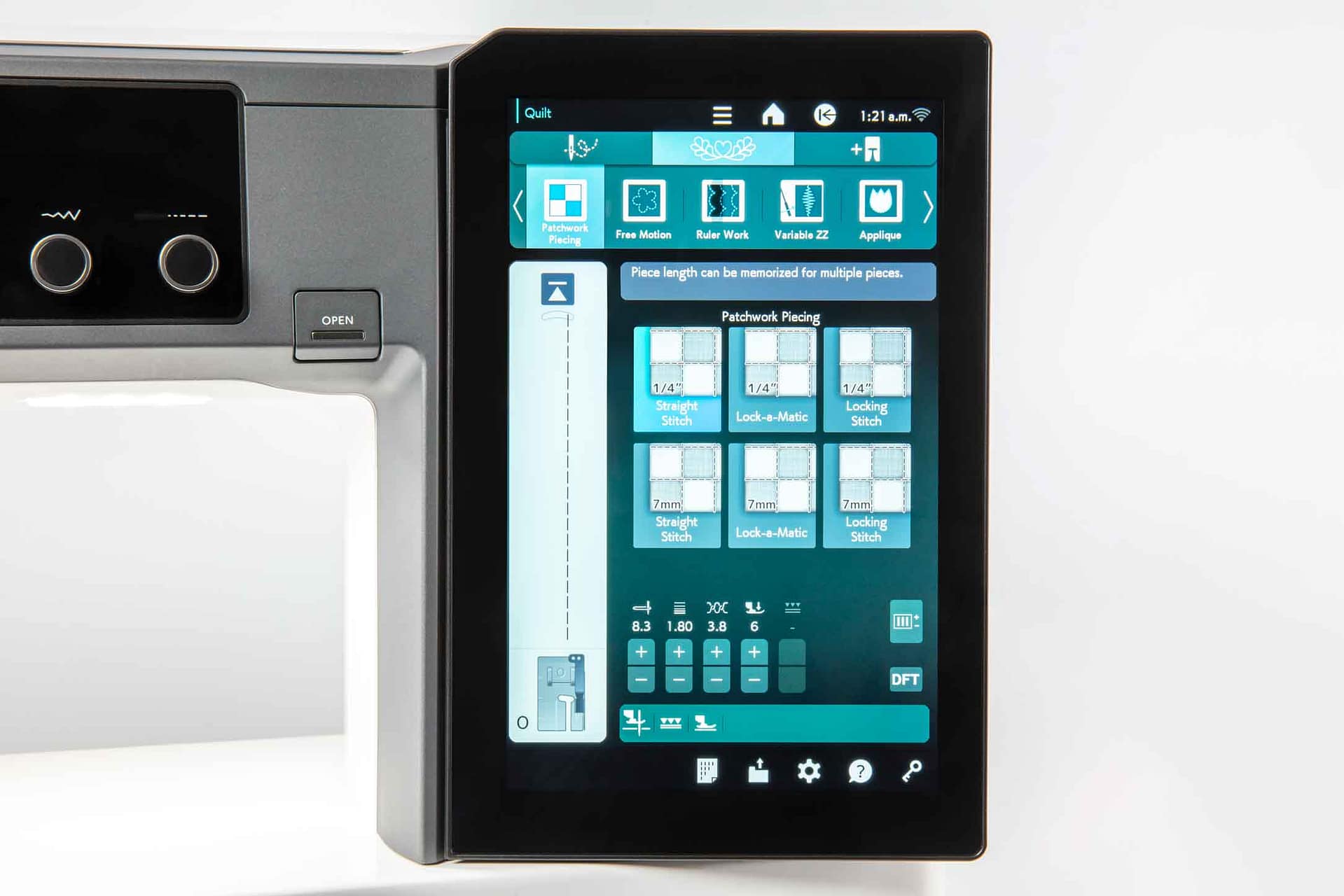

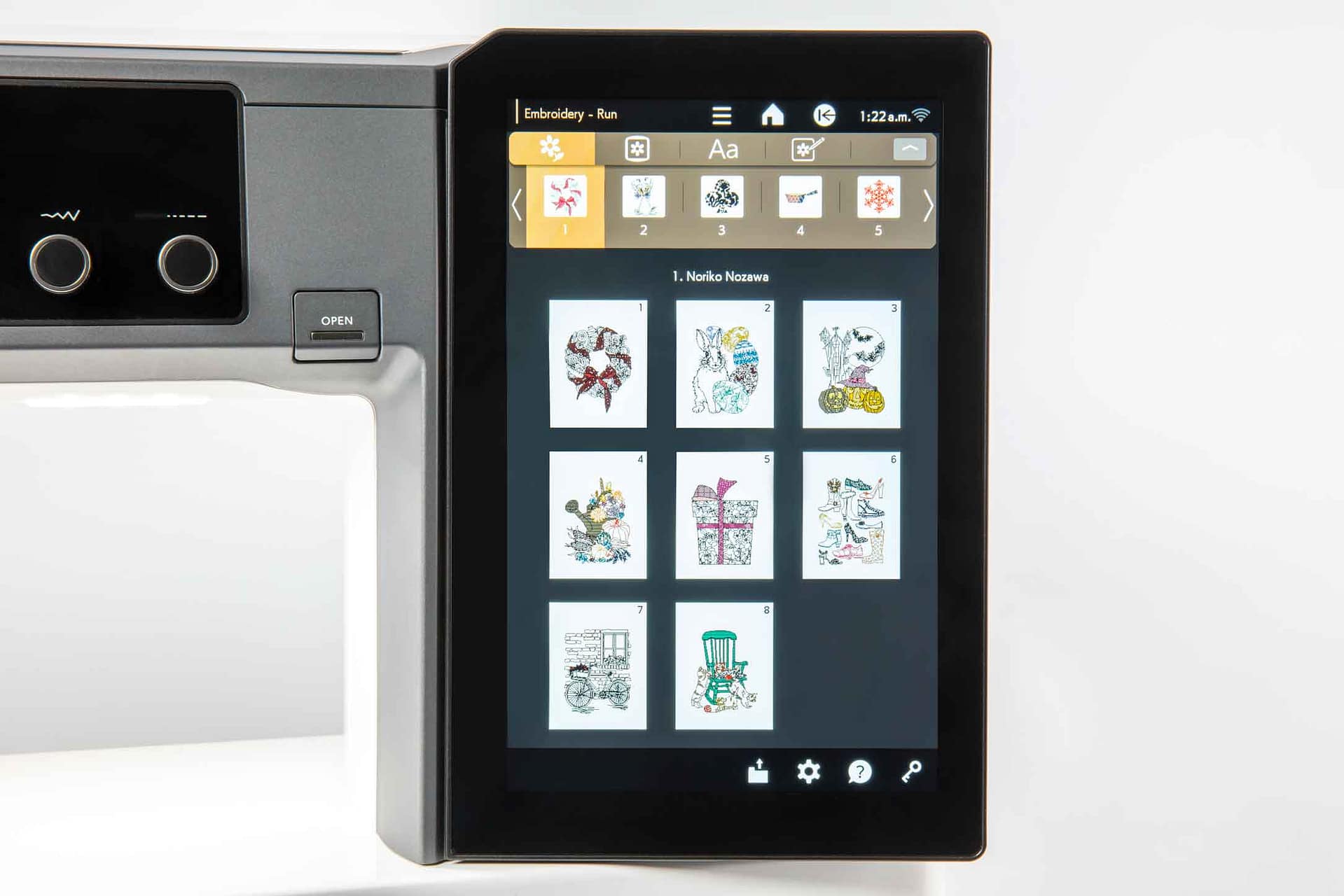

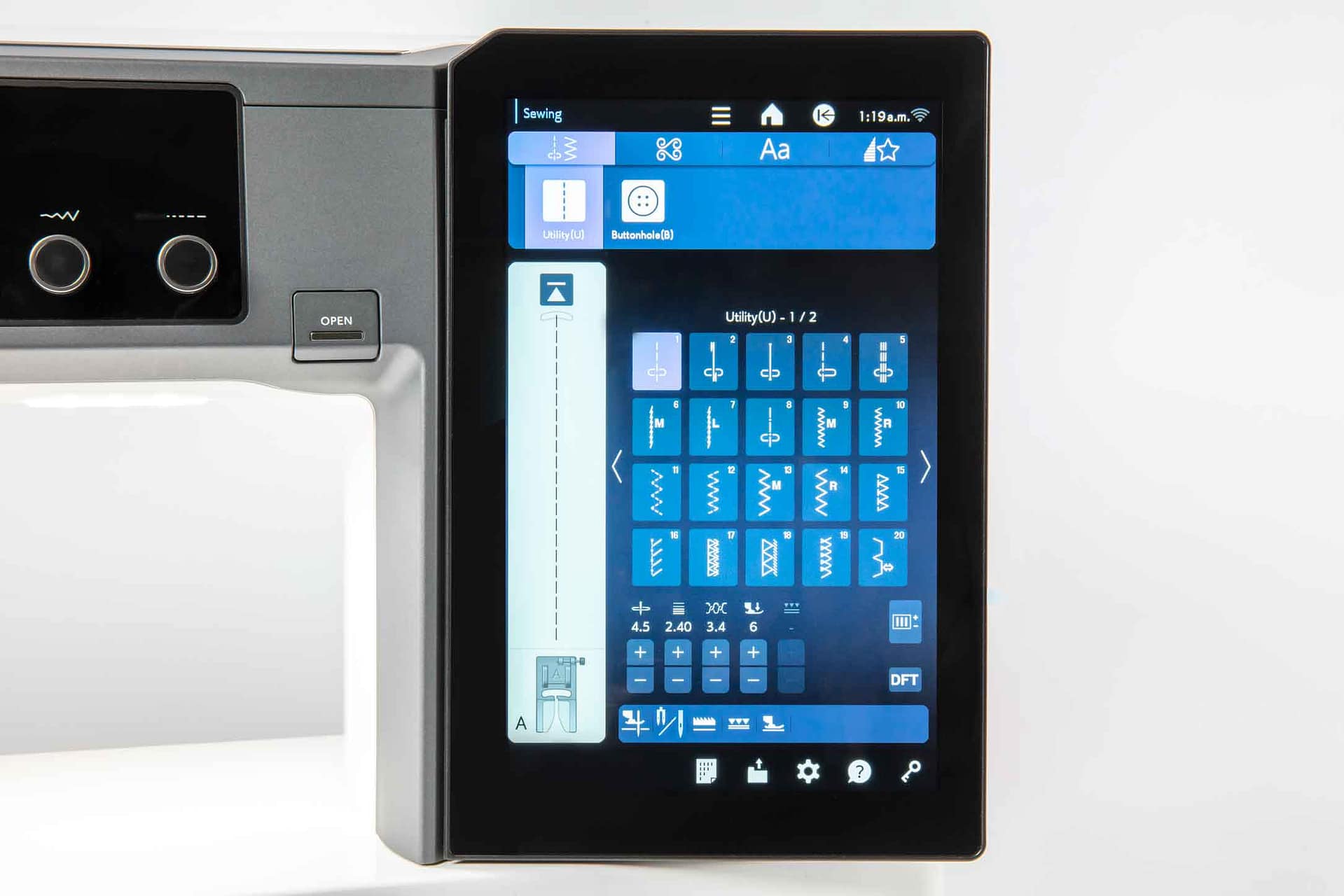

  • Right Screen – LCD Full-color touch-screen 10.1”

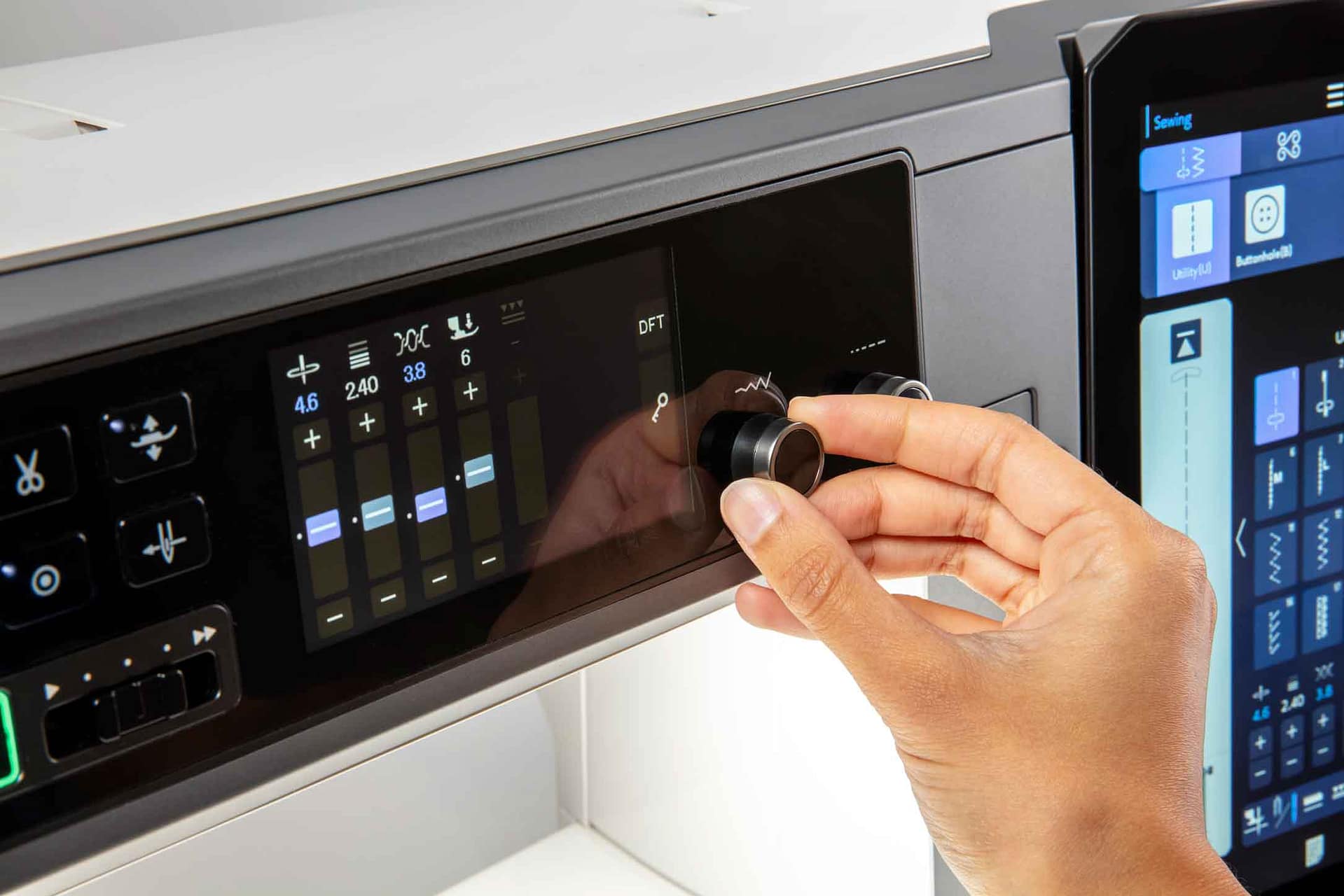

  • Middle Screen – LCD Touchscreen 4.3”
• Artistic Digitizer Jr software includes –compatible with both MacBook and PC
• PC Based Programs included
  • StitchComposer
  • QuiltBlockAdvisor
  • ScreenSaverTool
• Wireless LAN Certified to work with our
• 5 Apps for both Apple and Android devices:
  • AcuAssist – In-app tutorials & instruction
  • Embroidery-Link – wireless embroidery editing and monitoring
  • AcuSetter – Clothsetter application for proper embroidery placement
  • AcuSketch – Turn free-hand drawing into digitized embroidery designs
  • ScreenSaver – upload your own images to the machine screensavers

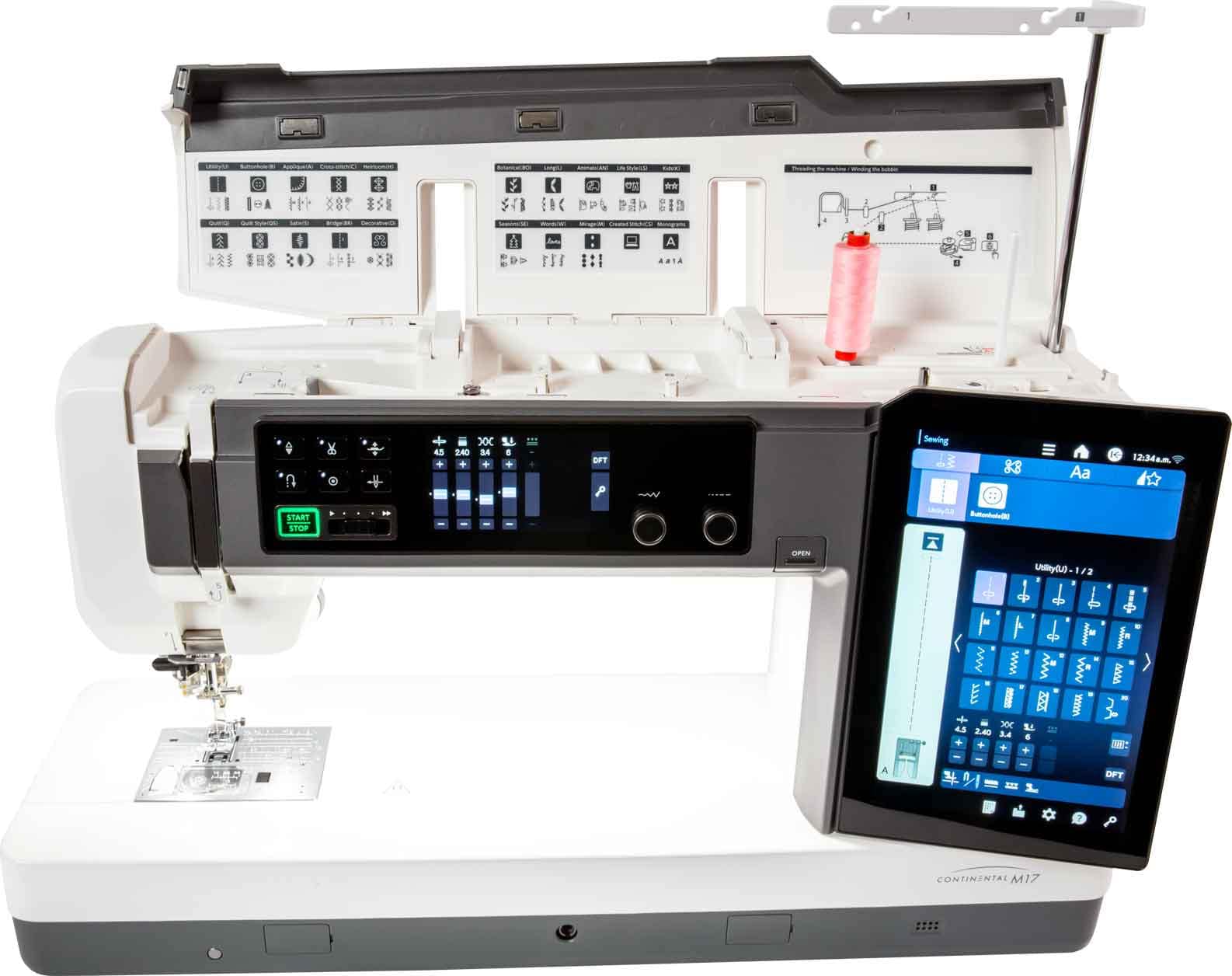

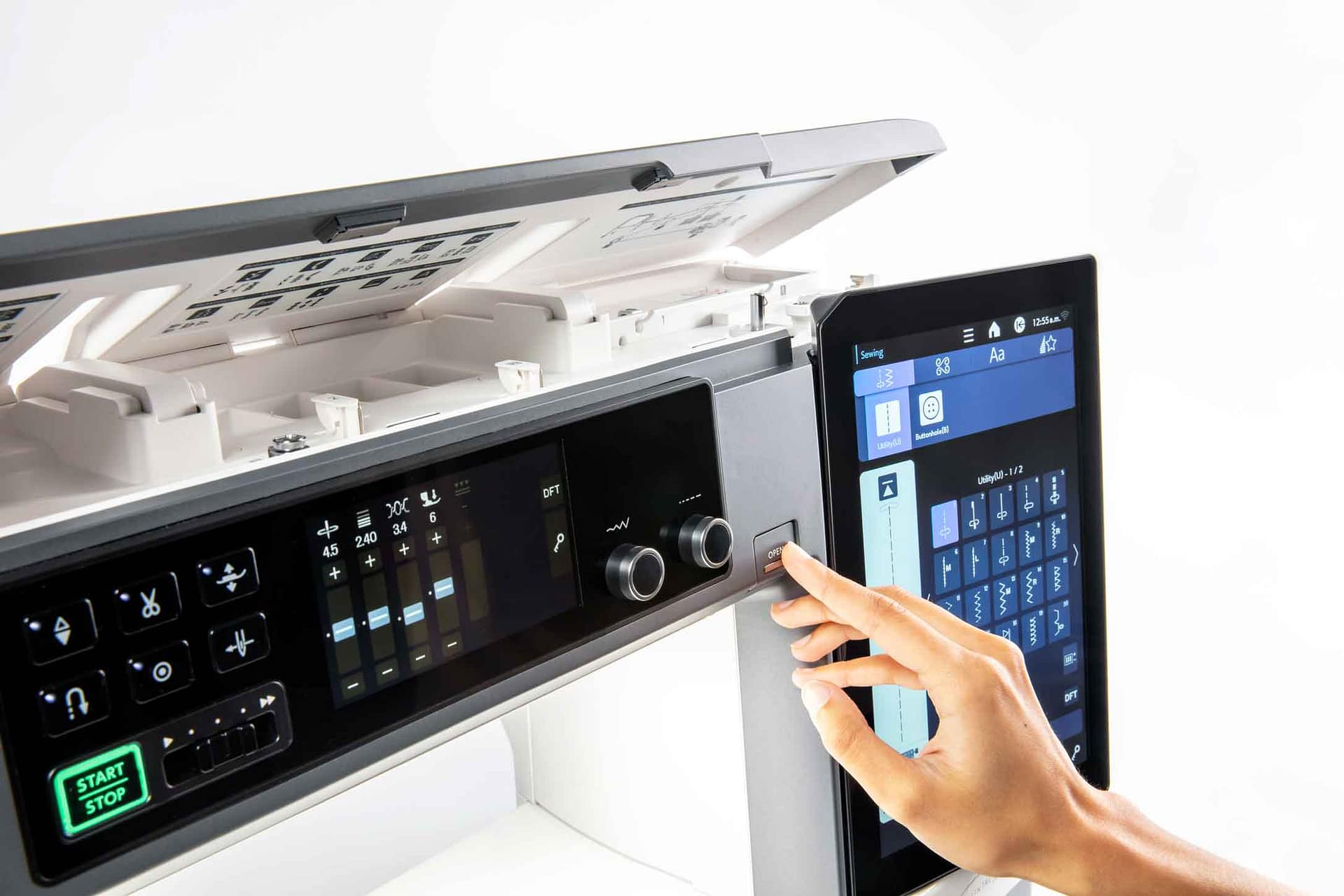

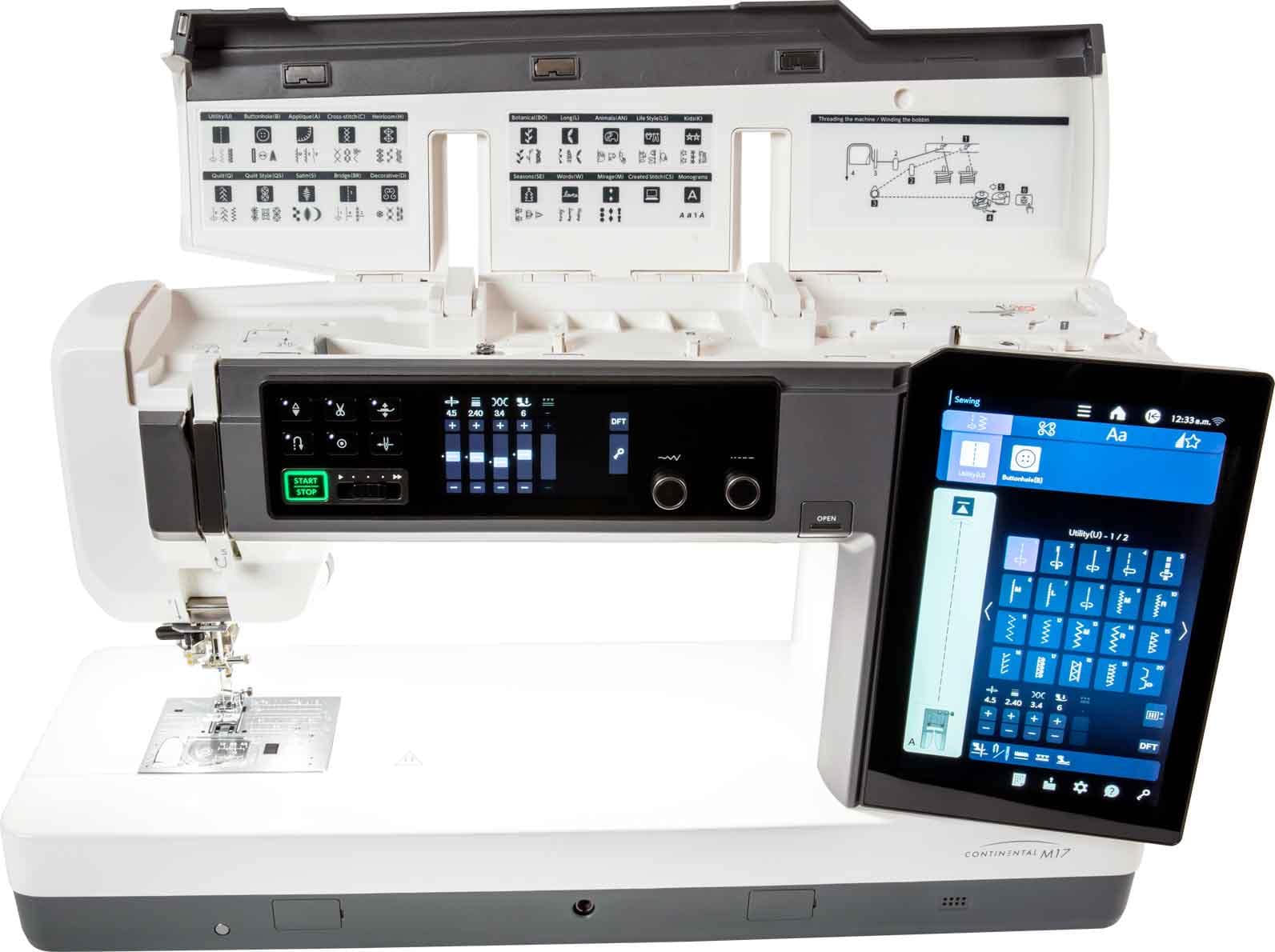

• Self-opening Top Cover
• Sewing application support with on-screen help
• Full intensity lighting system with 9 white LED lamps in 4 locations
• AcuView Magnifier in three different magnifications

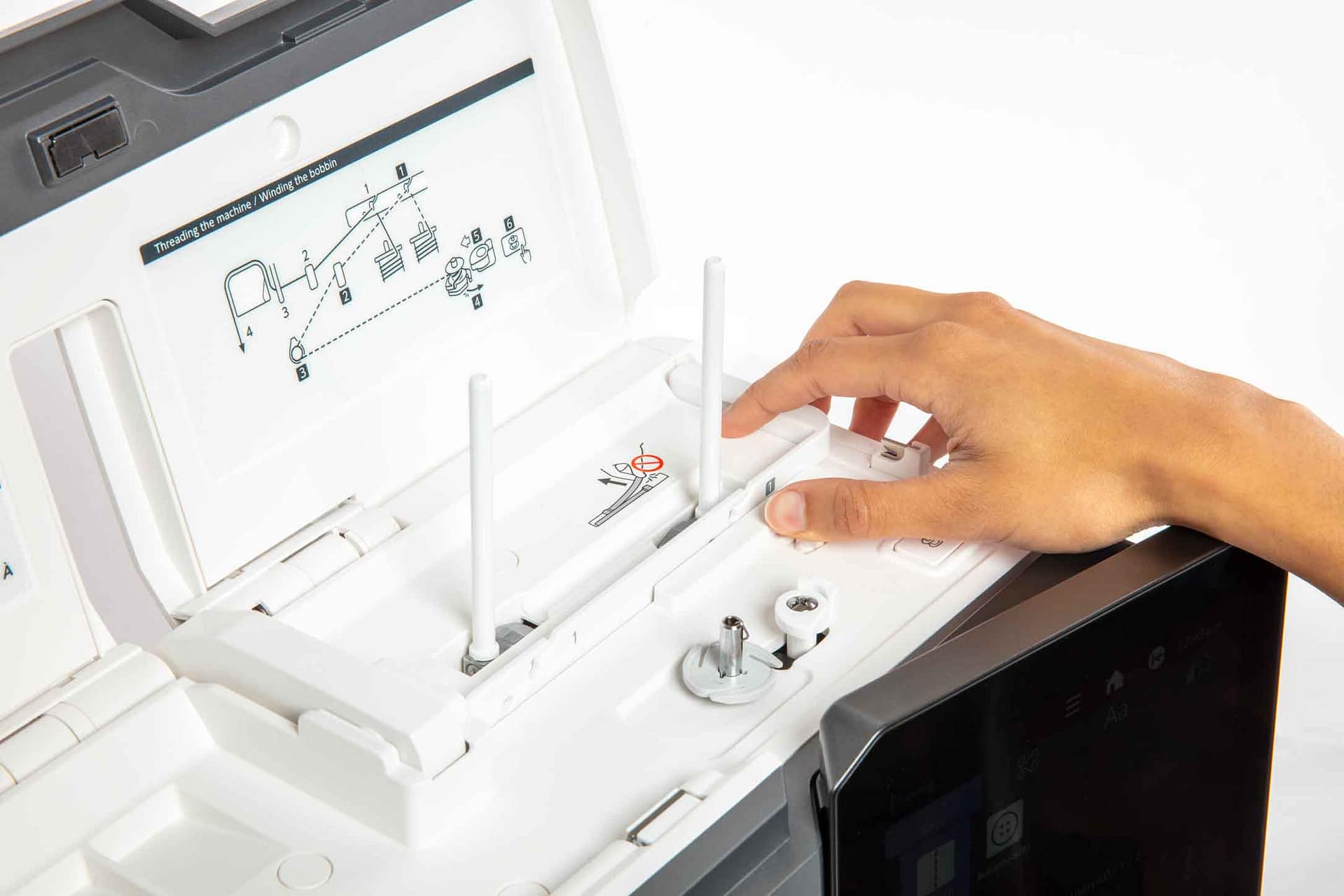

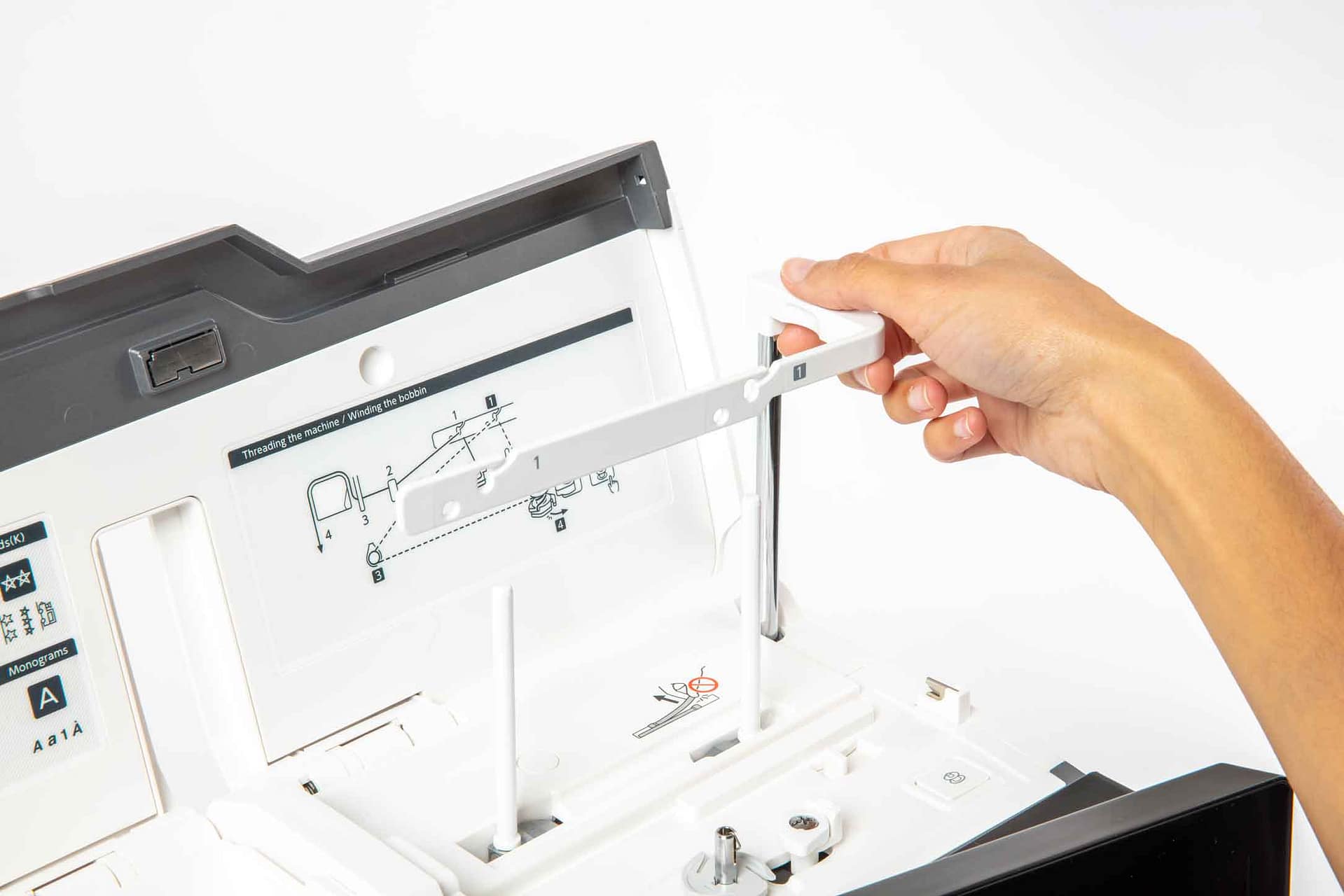

• Pop-up spool pins
• Built-in Storage Space in the embroidery unit extension tables, top, and back of machine
• Clock Display
• Automatic One-step needle plate lift with soft close
• Automatic thread tension
• Automatic built-in needle threader
• Easy Convenience Buttons:
  • Memorized needle up/down
  • Automatic presser foot lift
  • Start/stop button
  • Speed control slider
  • Locking stitch button
  • Easy reverse button
• Automatic thread cutter with memory function
• Twin needle guard
• Memory capability: up to 64MB of storage
• Adjustable knee lift
• Independent bobbin winding motor up to 2,000 RPM
• Optical bobbin Sensor
• Extra high presser foot lift
• Foot pressure adjustment
• Foot height adjustment
• Top loading full rotary hook bobbin
• Semi-Hard Cover included
• Instructional Videos Online
