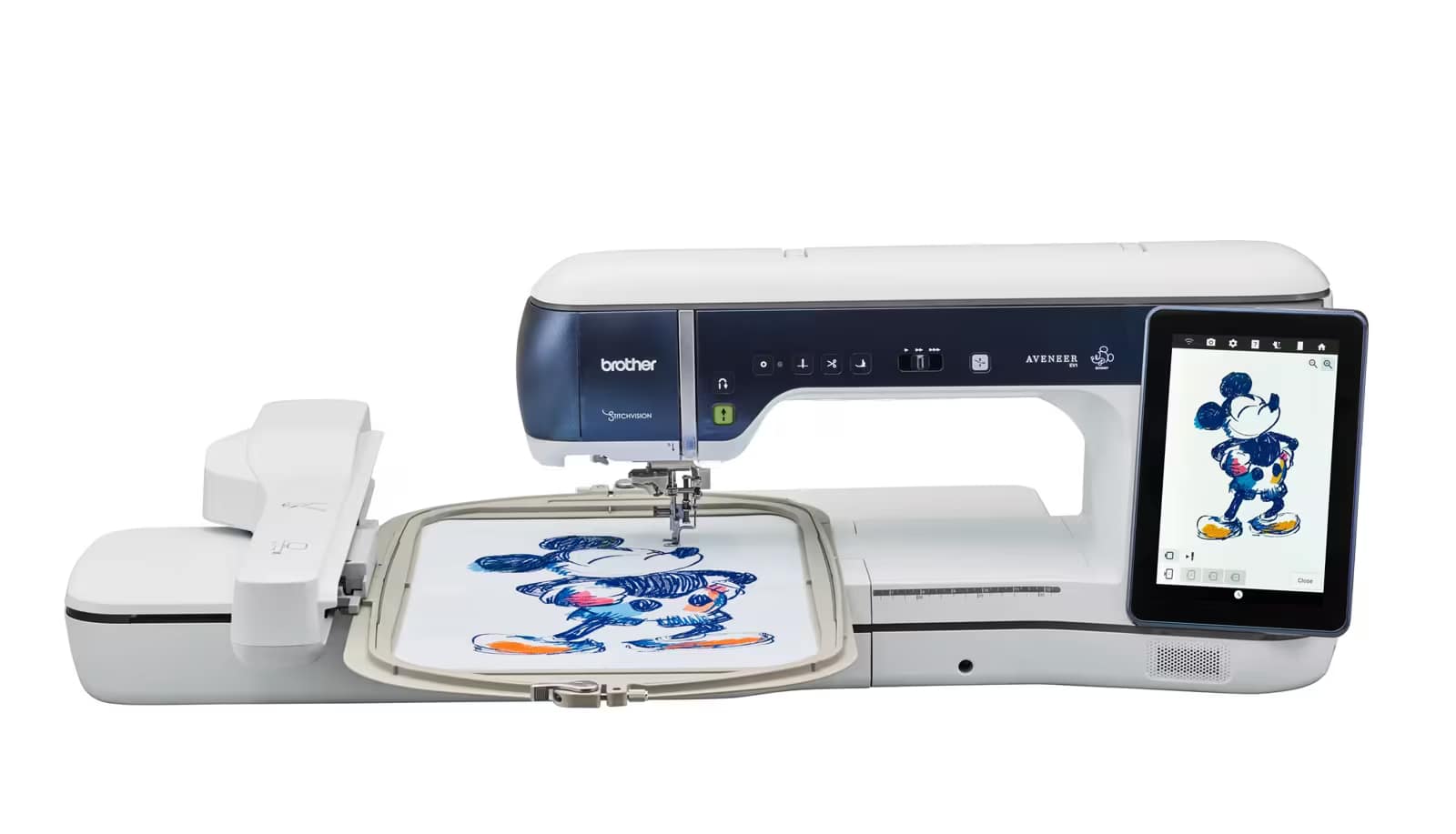

Brother EV1 Sewing & Embroidery Machine
It’s time to rediscover greatness with the most technologically advanced sewing, embroidery and quilting machine by Brother, the Aveneer EV1! Commanding attention with its sleek lines and modern, metallic blue exterior, the Aveneer EV1 looks as good as it performs. With the distinction of having the largest workspace and embroidery area of any Brother machine, the Aveneer EV1 is outfitted with precision projection and built-in Disney designs, elevating the experience of every use. Boasting an impressive combination of dynamic software, powerful wireless LAN capabilities, striking good looks, and sophisticated engineering, this state-of-the-art sewing, embroidery, and quilting machine offers a full suite of future-forward features. With the Aveneer EV1, the time is now to unlock your creativity.
Main Features
- 852 built-in sewing stitches
- 858 built-in embroidery designs
- 217 built-in Disney designs
- 11 5/8” x 18 ¼” embroidery area
- Intelligent stitch regulator
- Edge to edge quilt feature
- StitchVision technology
- Mobile app compatibility
Large Workspace, Embroidery, and Projector
An industry-leading 14.1” workspace (70 square inches) from needle to arm handles everything from large home décor projects to upcycled creations. The large 11 5/8” x 18 1/4” embroidery frame is the largest and most advanced embroidery frame ever offered by Brother. Project stitches or designs onto an 8” x 5” (127 x 203mm) projection area for precise placement and edit directly on fabric, such as moving, resizing, and rotating¹. When multiple designs are in place, selecting a specific object for editing is easy.
Intelligent Stitch Regulator
Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Includes three modes (Continuous, Intermittent, and Basting) and three free motion feet.
Mobile App Compatibility
App compatibility expands the creative possibilities of the EV1. The Artspira Mobile App provides access to exclusive designs and projects in the hoop with the added ability to create unique patterns by drawing directly on a mobile device and then wirelessly transferring them to the EV1. Plus, the My Design Snap App provides users the opportunity to digitize any photo in one of 10 styles – all wirelessly between a mobile device and the EV1.
Basic Features
| Presser Foot Leveling | Yes | Needle Position Key | Yes |
| Accessory Storage | Yes | UL/CSA Listed | Yes |
| Branded Series | Disney | Screensaver | Yes |
| Adjustable Presser Foot Pressure | Yes | Stitch Selector Type | Touch Panel |
| Adjustable Screen Brightness | Yes | Lighting Type | LED |
| Feed Dog Points | 7 | Quick Set Bobbin | Yes |
| Number of USB Ports | 2 | Automatic Thread Cutter | Yes |
| Thread Sensor On/Off | Yes | Thread Sensor | Bobbin Sensor, Upper Thread Sensor |
| Wireless Enabled | Yes | Built-in Memory | Yes |
| Display Type | LCD | LCD Display Size | 10.1″ |
| Realistic Preview | Yes | Needle Threading System | Automatic |
| Built-in Languages | Yes |
Embroidery
| Frame Designs Shapes | 10 | Maximum Embroidery Area | 11 5/8” x 18 1/4” |
| Included Embroidery Hoops | 10 5/8″ x 10 5/8″, 5″ x 7″, 4″ x 4″, 11 5/8” x 18 1/4” | Trial Position Layout Function | Yes |
| Built-in Embroidery Designs featuring Disney/Pixar Characters | 217 | Color Shuffling Function | Yes |
| Pattern Rotating Increments | 0.1 Degree, 10 Degrees, 90 Degrees, 1 Degree | Space Reduction among Embroidery Alphabets | Yes |
| Built-in Alphabet Fonts | 31 | Computer Connectivity | Yes |
| InnovEye Technology | Yes | On-Screen Automatic Density Adjustment | Yes |
| Appliqué Creator Function | Yes | Sewing Decorative Stitches with Embroidery Arm Attached | Yes |
| Curved Text on Screen Editing | Yes | Drag and Drop Editing | Yes |
| Built-in Designs | 2075 | Frame Designs Stitches | 14 |
| Print and Stitch Technology | Yes | Resume Function | Yes |
| Embroidery Position Marker | Yes | Speed Adjustment | Yes |
| Maximum Zoom | 1600 | Thread Wiper | Yes |
| Adjustable Design Icon Size Setting | Yes | Adjustable Embroidery Speed Settings | Yes |
| Programmable Monochrome Embroidery | Yes | On-Screen Editing | Yes |
Quilting
| Drop Feed | Automatic |
| Built-in Quilting Stitches | Yes |
| Free Motion Quilting Foot | Yes |
| Included Quilting Feet | Yes |
| Built-in Sewing Lettering Fonts | 4 |
| ISR Intelligent Stitch Regulator | Yes |
Sewing
| Maximum Sewing Speed | 1050 | Sideways Sewing | Yes |
| Pivot Function | Yes | Stitch Width | 7 |
| Independent Bobbin Winding Motor | Yes | Back to Beginning Key | Yes |
| My Custom Stitch Feature | Yes | Reinforcement/Reverse Stitches | Yes |
| Knee Lifter | Yes | Multi-Directional Sewing | Yes |
| Automatic Height Adjustment | Yes | Stitch Length | 5 |
| Button Hole Styles | 25 | Built-in Lettering Fonts | 4 |
| Available Stitch Types | Chain Stitch, Lock Stitch, Straight Stitch, Zigzag Stitch, Stretch Stitch, Overlock Stitch, Cover Stitch, Running Stitch, Back Stitch, Satin Stitch, Outline Stitch, Tacking Stitch |
