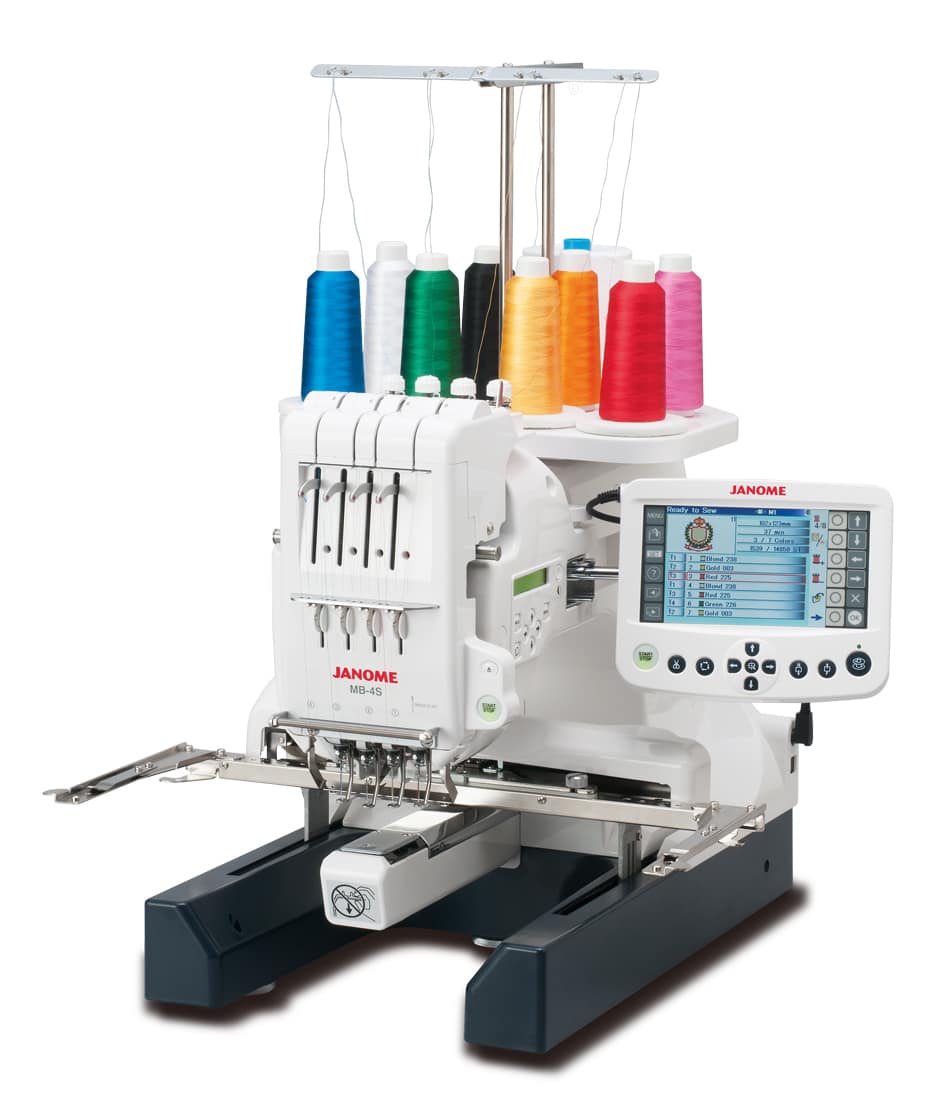

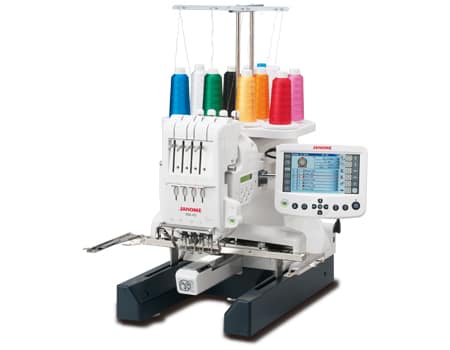

Janome MB-4S
We’ve taken everything you love about Janome embroidery and quadrupled the capacity! With our four needle machine, you can set up your embroidery and move on to other projects while the MB-4S gets it done. The MB-4S is built to work with most embroidery formats, including those used by industry professionals. It is compatible with six industry-standard Tajima hoops, as well as the four available Janome hoops to further expand your creative opportunities.
Four-needle embroidery only machine with RCS (Remote Computer Screen). Maximum embroidery size 240mm x 200mm, possibility of connecting up to 3 machines with one RCS or one Digitizer MBX. Lightweight, weighs less than 45 pounds, auto return system in the event of thread breaks. EZ change hoops; also uses industrial hoops and industrial formats. Four LED lights illuminate embroidery projects and needle area for easy threading, needle changing, and viewing of the design. Improved features include a jumbo bobbin, 1.4 times larger than regular bobbin, 5.7” LCD panel with new RCS and extra bright screen, ATA card slot has been removed. Instruction book in English.
Key Features
- Single Head Four needle professional-style embroidery machine
- 50 built-in designs
- 10 fonts for monogramming
- 2 and 3 letter monogramming
- Maximum embroidery size: 9.4″ x 7.9″ / 238mm x 200mm
- Design transfer by USB, USB host
- Embroidery sewing speed up to 800spm
- Embroidery format capability: .jef+, .jef, and .dst
- Editing functions include enlarge/reduce, rotate, turnover, drag and drop, re-edit, zoom, arc, combine
- Programmable jump thread trimming
- Flexible stitch travelling
|
|
Standard Accessories:
- Embroidery Hoop M1 (240mm x 200mm)
- Embroidery Hoop M2 (126mm x 110mm)
- Embroidery Hoop M3 (50mm x 50mm)
- Lint Brush
- Needles DBxK5-NY #11
|
|
Optional Accessories:
- Bobbin Cases (multi-needle embroidery)
- Hat Hoop for Multi-Needle
- Janome Sewing Mat Large
- Jumbo Bobbin
- Lettering Hoop Holder Unit
- MB-4 Support Table
- Needle Threader
- Needles DBxK5-NY #14
- Needles DBxK5-NY #9
- No. 1 Lettering Hoop J7 (110×95)
|
|
Machine Specifications:
| Number Of Designs: |
50 |
| Fonts For Monogramming: |
10 |
| Maximum Embroidery Size: |
9.4″ x 7.9″ / 238mm x 230mm |
| Design Transfer Options: |
USB, USB host |
| Embroidery Sewing Speeds: |
800 |
| Embroidery Format: |
.JEF, .JEF+, and .DST |
| On-screen Editing Functions: |
Enlarge/reduce, rotate, turnover, drag & drop, re-edit, zoom, arc, combine |
| Programmable Jump Thread Trimming: |
Yes |
| Flexible Stitch Travelings: |
Yes |
| Auto Return Post Thread Break: |
Yes |
| Adjustable Hoop Positioning: |
Yes |
| Thread Cutter: |
Yes |
| Screen Type: |
5.7″ Remote Computer Screen (RCS) |
| Thread Brand Selection: |
Janome, Robinson-Anton, Madeira, Mettler |
| Available Hoops: |
M1: 9.46″ x 7.88″, M2: 5″ x 4.3″, M3: 50mm x 50mm, Hat Hoop: Optional |
| Hook Type: |
Front Loading Vertical Oscillating Hook Bobbin |
| Number Of Buttonholes: |
Not Available |
| Thread Tension Control: |
Automatic |
| Needle Threader: |
Not Available |
| Needle Updown: |
No |
| Feed System: |
AcuFeed |
| Startstop Button: |
Yes |
| Automatic Thread Cutter: |
Yes |
| Memory Function: |
RCS;3MB, MB-4;3MB (or maximum 100 design) |
| Last Stitch Recall Capability: |
Yes |
| Knee Lift: |
Yes |
| Machine Size Footprint: |
W 14.4″ x H 25.2″ x D 20.5″ |
| Machine Weight: |
45.2 lbs |
| Bobbin Winding: |
Independent Motor |
| Stitch Selection Type: |
Touchscreen |
| Maximum Stitch Width: |
Not Available |
| Maximum Stitch Length: |
Not Applicable |
| Cover: |
None |
| Dual Voltage 80v – 240v: |
Yes |
| Other Features Of Note: |
Multi-Needles Embroidery Machine |
| Touch Screen: |
Yes |
