Walking Foot

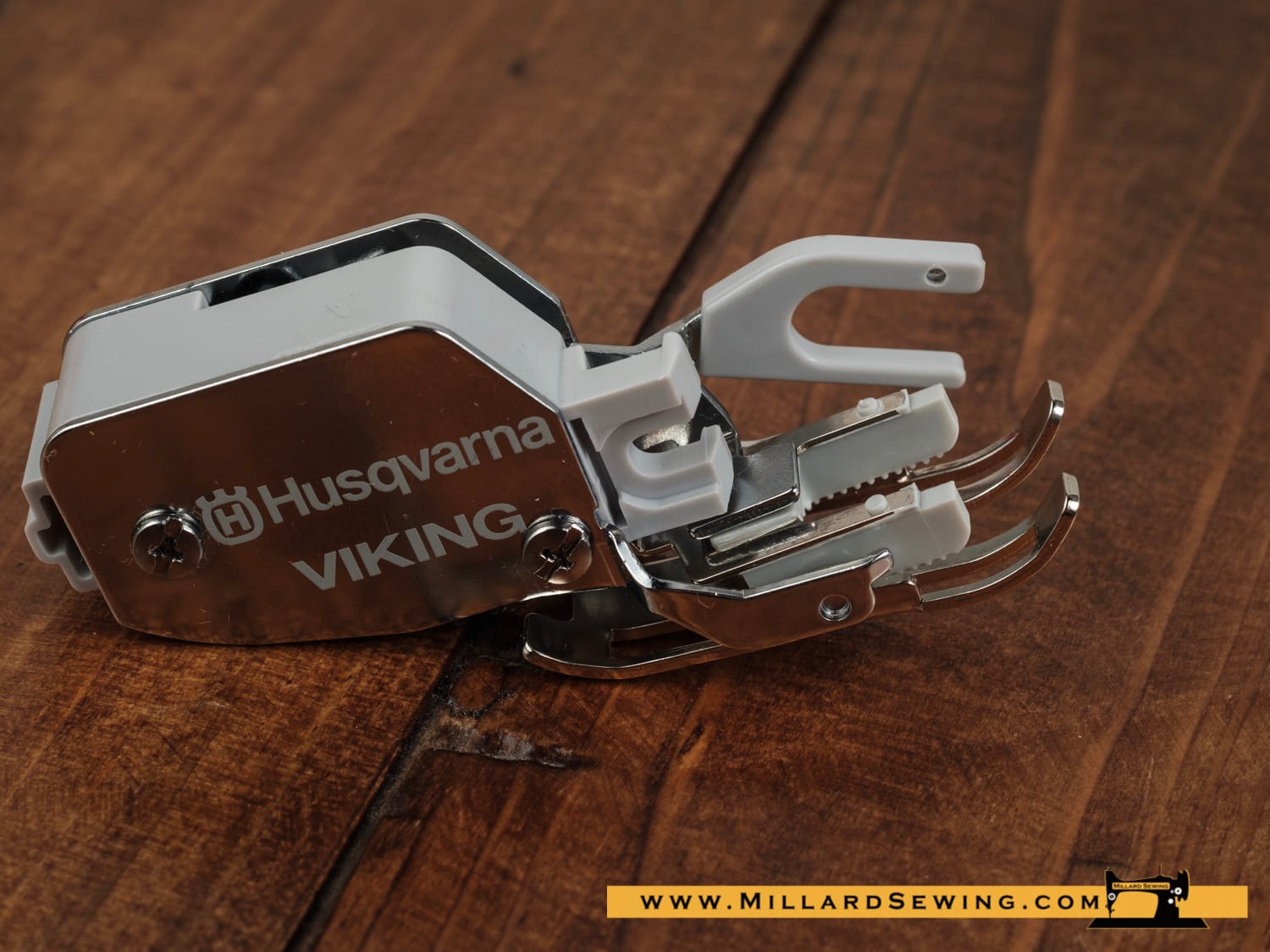

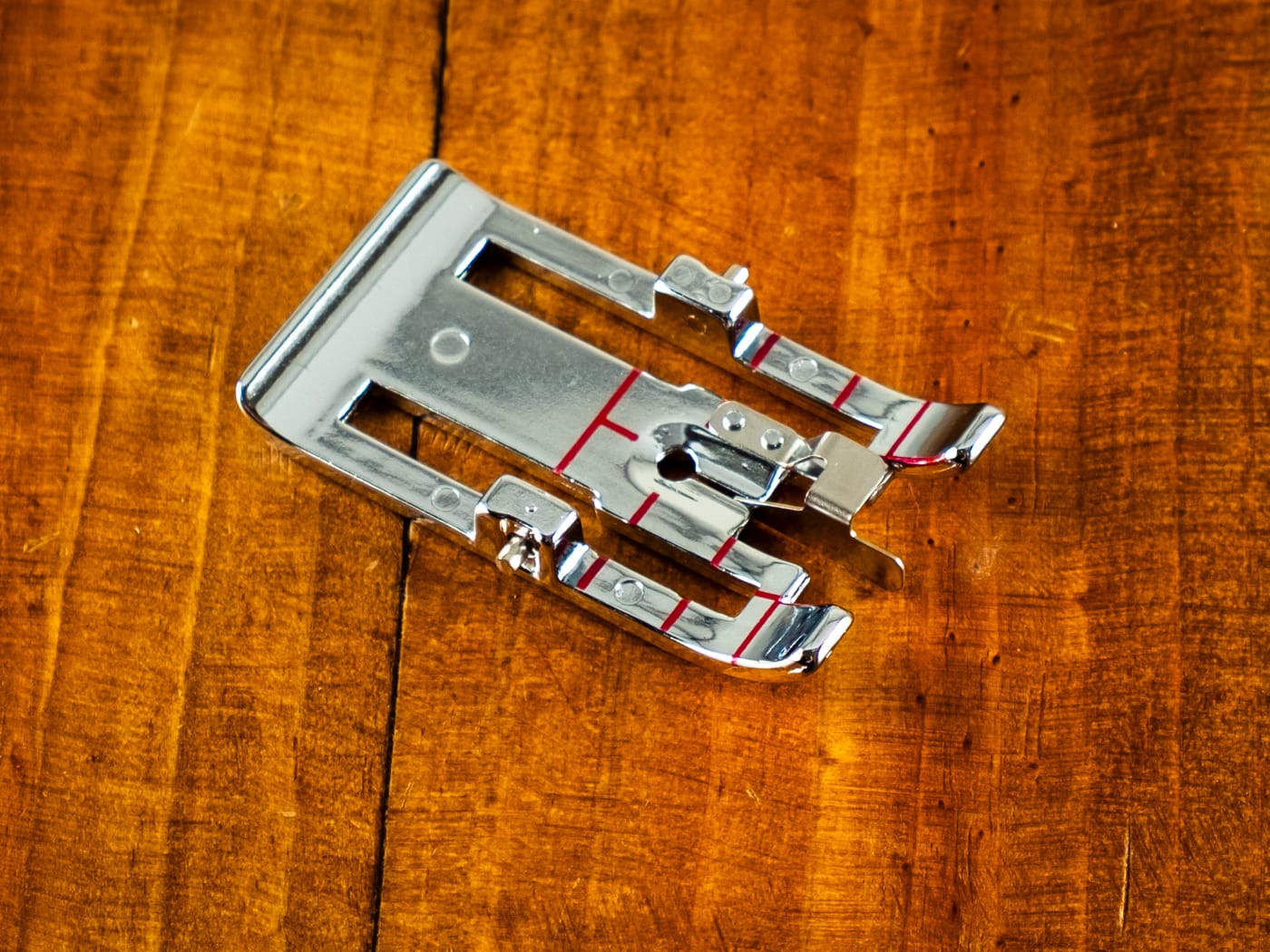

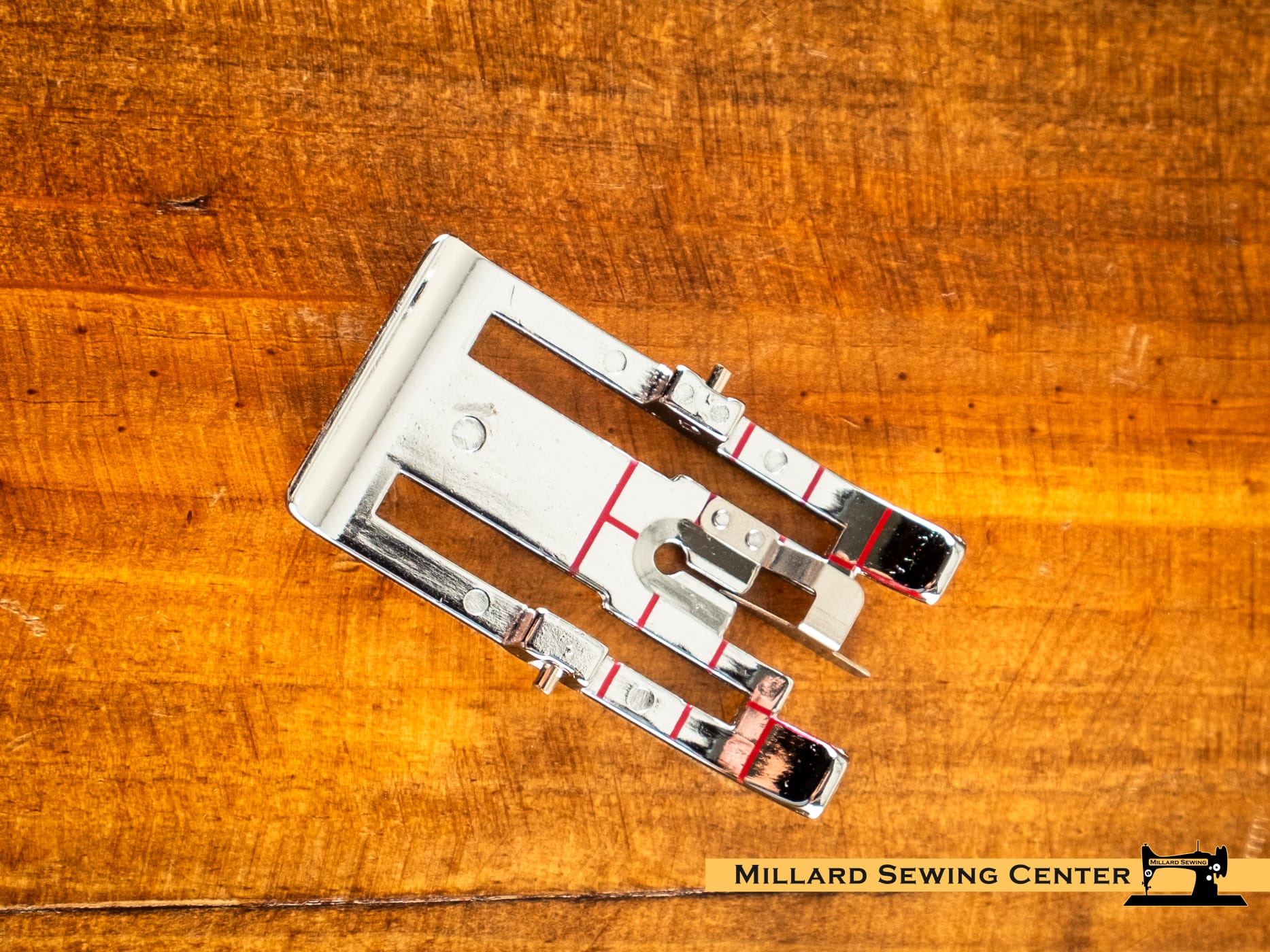

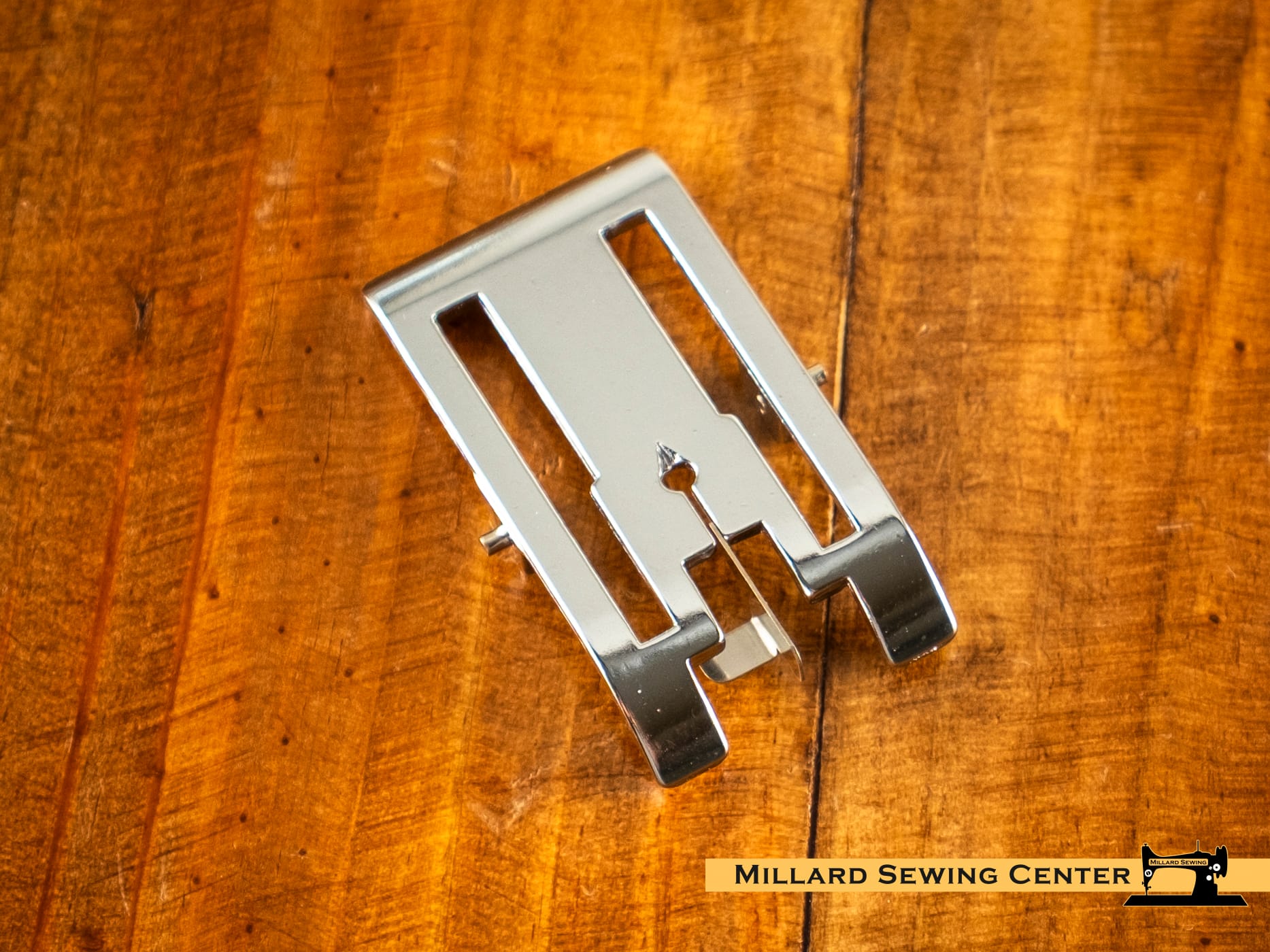

The Dual Feed Foot with changeable presser feet is designed to feed layers of fabric and/or batting evenly. It is perfect for quilting, sewing velvet, stretch fabrics, imitation leathers and fabrics need precise pattern matching. Snap on the Changeable Straight Stitch Foot. Select the center needle straight stitch. Adjust it up to a maximum stitch length of 6. Snap on the Changeable Zigzag Foot and select stitches up to a maximum of 7mm wide and 6mm and long.
Use:
- Remove the presser foot ankle by unscrewing the ankle screw.
- Place the Duel Feed Foot onto your machine from the back, positioning the fork over the needle clamp screw. Screw the Dual Feed Foot onto the presser foot bar with the presser foot ankle screw. Reduce presser foot pressure to 3.
- Snap-on and remove the changeable presser foot
- With presser foot bar in the up position, place the presser foot under the Dual Feed Foot.
- Push the changeable foot upwards so that it snaps into place.
- To remove the changeable foot, push the front of the foot upwards until the foot snaps off.

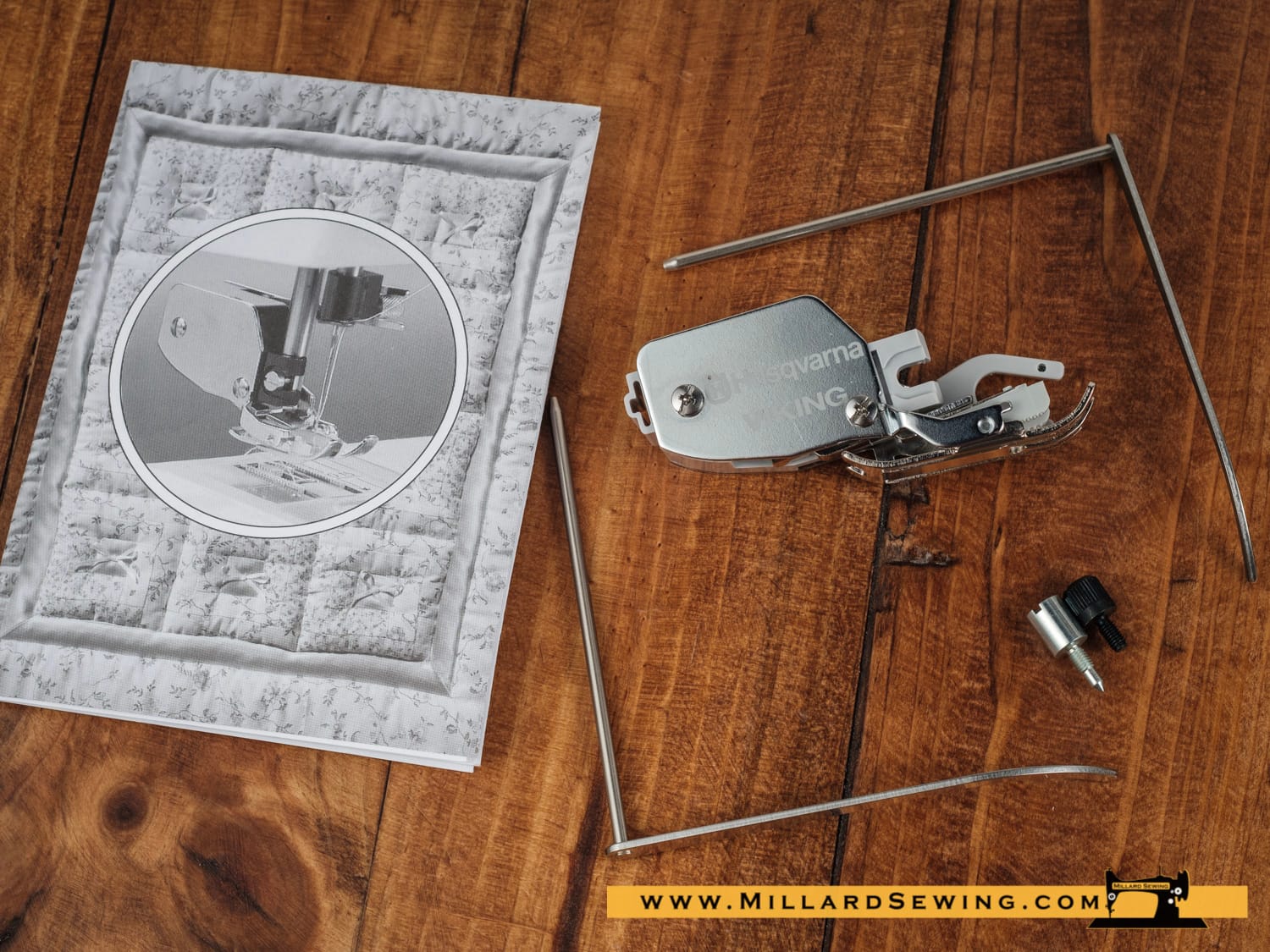

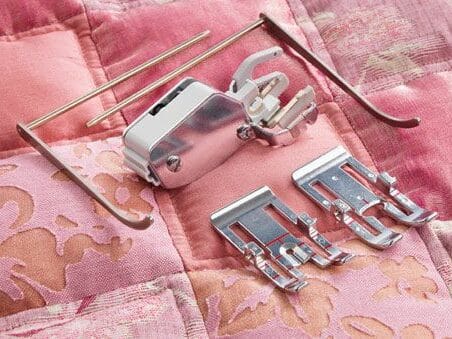

- How to attach the guideThe two guides included with the Dual Feed Foot will help you sew parallel rows of stitching side by side as in channel quilting or tucking. There is one guide for the left side, and one for the right.
- Insert the guide into the hole in the back of the dual feed.
- Adjust the space between the foot and the guide by pulling it to the left or to the right.
Will not work with EMERALD™ 122, 118 and 116 machines.
Fits:
Husqvarna Viking
- 1010
- 1030
- 1040
- 2000
- 3000
- 3010
- 3240
- 3310
- 3610
- 500
- 6000 series
- 6570
- 6690
- Angelica
- Anna
- Daisy 310
- Daisy 315
- Daisy 320
- Daisy 325
- Daisy 330
- Daisy 335
- Designer 1
- Designer 2
- Designer Diamond
- Designer Diamond DeLuxe
- Designer Diamond Royale
- Designer Jade 20
- Designer Ruby
- Designer Ruby DeLuxe
- Designer Ruby Royale
- Designer SE
- Designer SE Limited Edition
- Designer Topaz 20
- Designer Topaz 25
- Designer Topaz 30
- Designer Topaz 40
- Designer Topaz 50
- Emerald 183
- Emma
- Facette 400
- Facette 500
- Freesia 350
- Freesia 400
- Freesia 425
- Freesia 435
- Freesia 445
- Interlude 435
- Interlude 445
- Iris
- Juliet
- Lena
- Lily 500
- Lily 530
- Lily 535
- Lily 540
- Lily 545
- Lily 550
- Lily 555
- Lisa
- Opal 650
- Opal 670
- Opal 690Q
- Oscar
- Platinum 715
- Platinum 730
- Platinum 735
- Platinum 750 Quilt
- Platinum 755 Quilt
- Platinum 770
- Platinum 775
- Platinum 950 E
- Platinum 955 E
- Platinum Plus
- Prelude 340
- Prelude 350
- Prelude 360
- Prelude 370
- Quilt Designer
- Quilt Designer II
- Romeo
- Rose 600
- Rose 605
- Sapphire 830
- Sapphire 835
- Sapphire 850
- Sapphire 855
- Sapphire 870
- Sapphire 870Q
- Sapphire 875Q
- Sapphire 930
- Sapphire 960Q
- Sarah
- Scandinavia 100
- Scandinavia 200
- Scandinavia 300
- Scandinavia 400
- Sophia
- Tribute 145C
- Victoria
- Viva
White
- 4910
Part Number:
- 412 57 30-45
- 920077-096
- 920219-096
- 4132383-45
- 4131555-45
- 4132378-45
