Zipper Foot, Invisible (Clear) for Most Models Husqvarna Viking Sewing Machines

Description

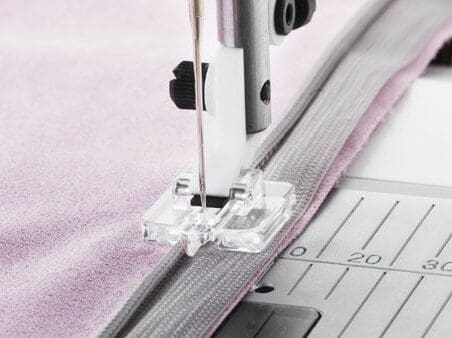

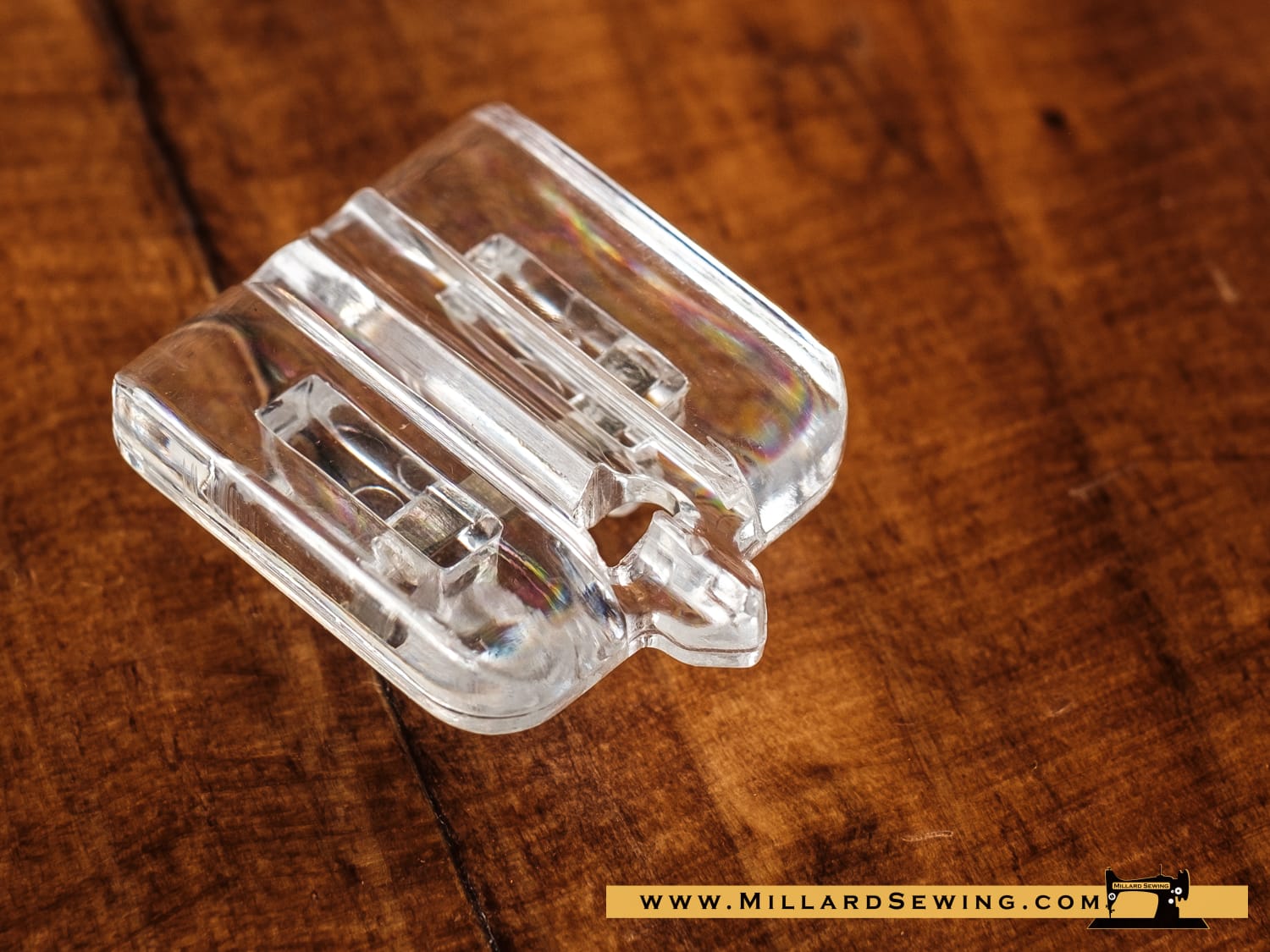

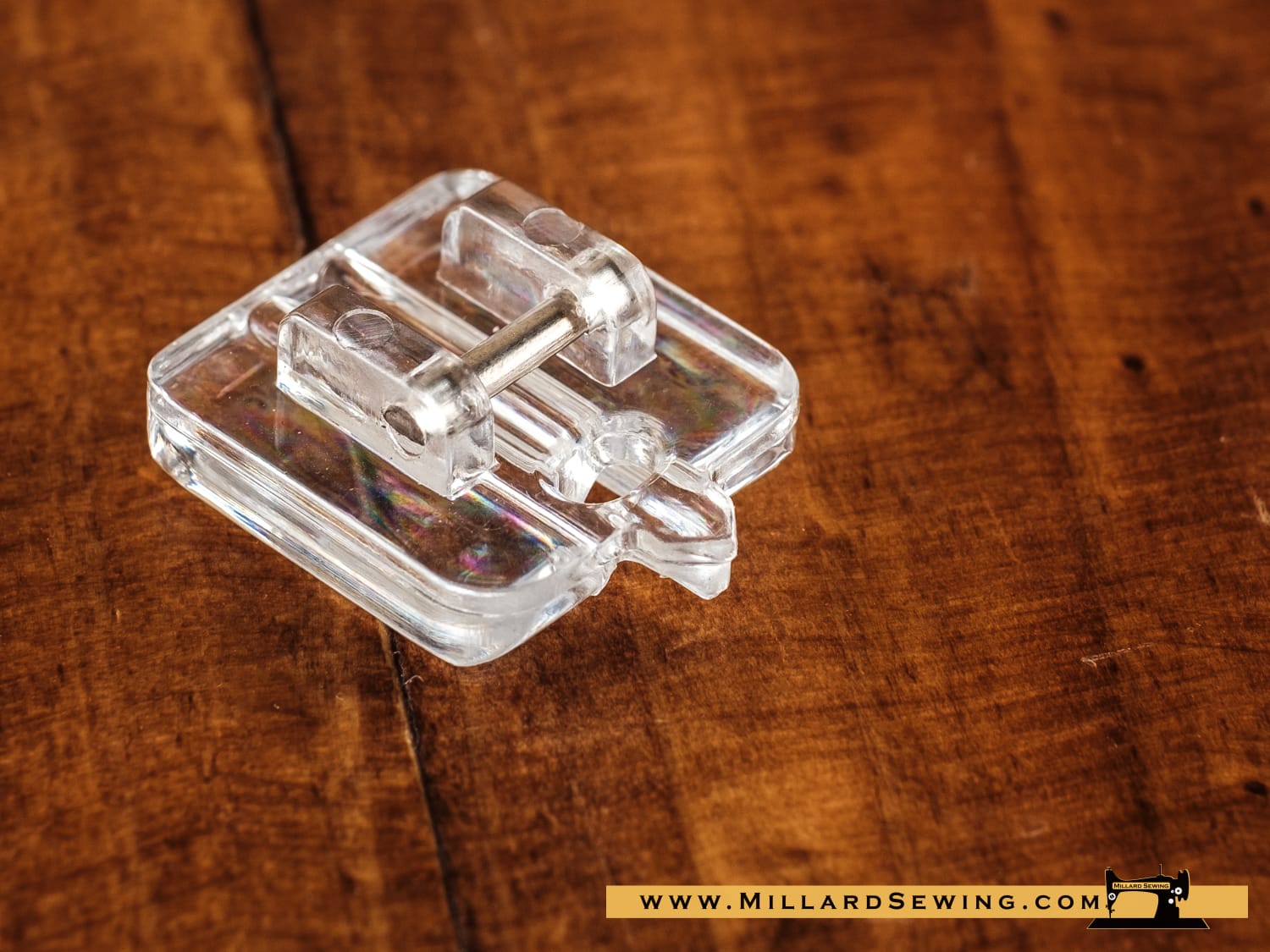

Clear Invisible Zipper Foot

Invisible Zippers (sometimes called concealed zippers) are most often seen in the center back of a dress, in the side or back of pants and skirts, and in some home dec projects.

As the name implies, the zipper is hidden in a seam, becoming virtually invisible. This zipper application is often thought of as very difficult to do, however it’s really one of the easiest.

Use:

1. An invisible zipper is always inserted before stitching the garment seam.
2. Mark the length of the zipper opening on the seam allowances and on the zipper.

   The excess length should be at the bottom of the zipper.

3. Snap on the Clear Invisible Zipper Foot
4. Select center needle position straight stitch. Length 2.5-3.0.
5. Place the right part of the zipper on the right side of the seam, right sides together. The coil should be placed on the seam line, starting about ¾” (2cm) below the cut edge of the fabric.
6. Carefully press the zipper teeth slightly to the right and lower the presser foot, so that the

   coil lies in the groove to the right of the needle.

7. Starting at the top, sew the zipper in place. Stop at the mark on the zipper and seam

   allowance and tie-off.

8. Place the second zipper tape on the left side of the opening, right sides together. Make sure both coils are level.
9. Pin the zipper in place. Open the zipper.
10. Lower the presser foot with the left groove over the zipper teeth. Sew in the same way as the first guide.
11. Close the zipper. Place the fabric with the zipper right sides together. Pin the rest of the

    fabric below the zipper right sides together.

12. Snap on the regular Zipper Foot E to the left of the needle. Adjust the needle position

    as needed.

13. Sew the seam from the lower edge and up to the zipper overlapping the backstitched seam.
14. Press the seam open

    Note: Buy an invisible zipper that is at least 1 ¼” (3cm) longer than the zipper opening.

Fits:

Husqvarna Viking:

• #1
• #1+
• 90
• 95
• 100
• 118
• 120
• 122
• 145M
• 150
• 180
• 183
• 185
• 190
• 200
• 203
• 205
• 210
• 215/225
• 230
• 250
• 300
• 315
• 320
• 325
• 330
• 335
• 350
• 360
• 370
• 400
• 400 Computer
• 415
• 435
• 500
• 530
• 535
• 540
• 545
• 550
• 605
• 610
• 620
• 670
• 735
• 755 Quilt
• 940
• 945
• 950
• 950 E
• 950 S
• 960
• 980
• 990
• 1050
• 1070
• 1070 S
• 1090
• 1100
• 1200
• 1250
• Angelica
• Anna
• Brilliance 75Q
• Classica 105
• Daisy 310
• Designer Brilliance 80
• Designer Diamond
• Designer Diamond deLuxe
• Designer Diamond Royale
• Designer Epic
• Designer Epic II
• Designer I
• Designer II
• Designer I USB
• Designer Jade 35
• Designer Ruby
• Designer Ruby deLuxe
• Designer Ruby Royale
• Designer Sapphire 85
• Designer SE
• Designer SE Limited Edition
• Designer Topaz 20
• Designer Topaz 25
• Designer Topaz 30
• Designer Topaz 40
• Designer Topaz 50
• Eden Rose 250C
• Emerald
• Emerald 116
• Emma
• Epic 95Q
• Epic 980Q
• Facette 500
• Freesia 425
• Hugin
• Interlude 445
• Iris
• Jade 20
• Jeans
• Juliet
• Lena
• Lily 555
• Lisa
• Opal 650
• Opal 690Q
• Optima 630
• Orchidea
• Oscar
• Platinum 715
• Platinum 730
• Platinum 750 Quilt
• Platinum 770
• Platinum 955 E
• Platinum Plus 775
• Prelude 340
• Prisma 990 S
• Quilt Designer
• Quilt Designer II
• Romeo
• Rose 600
• Sapphire 830
• Sapphire 835
• Sapphire 850
• Sapphire 855
• Sapphire 870Q
• Sapphire 875Q
• Sapphire 930
• Sapphire 960Q
• Sapphire 965Q
• Sarah
• Scandinavia 100
• Scandinavia 400
• Sophia
• Tribute 140C
• Tribute 140M
• Victoria
• Viva

Part Numbers:

• 4132865-45
• 413286545
